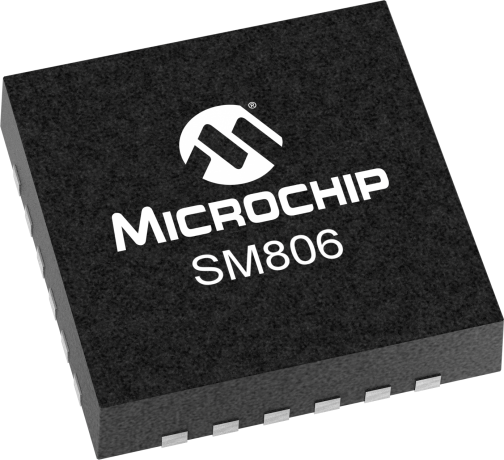

SM806

78fs Jitter Clock Generator

Status: In Production

Features:

78fs at 156.25MHz (12kHz to 20MHz)
Generates up to 6 combinations of differential or single-ended LVPECL, LVDS, HCSL, LVCMOS clock outputs.
On chip power supply regulation for excellent board level power supply noise immunity
2.5V or 3.3V operating power supply
Packages starting as small as 24-pin 4mm x 4mm

Buy
Now

Overview

Documents

Development Environment

RoHS Information

Add to Cart

Device Overview

Summary

CREATE AND SAMPLE YOUR CUSTOM SM806 HERE

The SM806xxx is a PLL clock generator that achieves ultra-low phase jitter (78 fs 12KHz to 20 MHz). With six total outputs and dividers on each output, this device can generate six different frequencies up to 875 MHz, from a low-cost quartz crystal or a reference clock input. Each of the six outputs can be independently programmed to LVPECL, LVDS, HCSL.

The SM806xxx is packaged in a 48-pin VQFN with up to six outputs or a 24-pin VQFN with two outputs.

Additional Features

78fs at 156.25MHz (12kHz to 20MHz)
Generates up to 6 combinations of differential or single-ended LVPECL, LVDS, HCSL, LVCMOS clock outputs.
On chip power supply regulation for excellent board level power supply noise immunity
Selectable input:
Crystal: 32.5MHz to 156.25MHz
Reference input: 11MHz to 80MHz
No external crystal oscillator capacitors required
2.5V or 3.3V operating power supply
Available in Industrial Temperature range
Available in Green, RoHS, and PFOS compliant QFN packages:

Packages starting as small as 24-pin 4mm x 4mm
and 44-pin 7mm x 7mm

Parametrics

Product Type

Low-Jitter Clock Generators

# of Outputs

6

Voltage

2.5, 3.3

Output Logic

CMOS, PECL, LVDS, HCSL

Output Frequency Min. (MHz)

12

Output Frequency Max. (MHz)

875

Documents

Jump to:

×

Data Sheets

SM806xxx Data Sheet

1788KB

Application Notes

Download All

Crystals and Oscillators for Next Generation Timing Solutions

326KB

AN2484 - Microchip's Clock Devices' Compliance with PCIe 4.0 - Microchip's Clock Devices' Compliance with PCIe 4.0

303KB

ANTC206 - Differential Clock Translation

431KB

ANTC207 - Quartz Crystals and Microchip ICs

393KB

Brochures

SM806 Sell Sheet

845KB

Product Brief

SM806 Product Brief

845KB

Development tools data is currently unavailable.
