PoE-Accessories

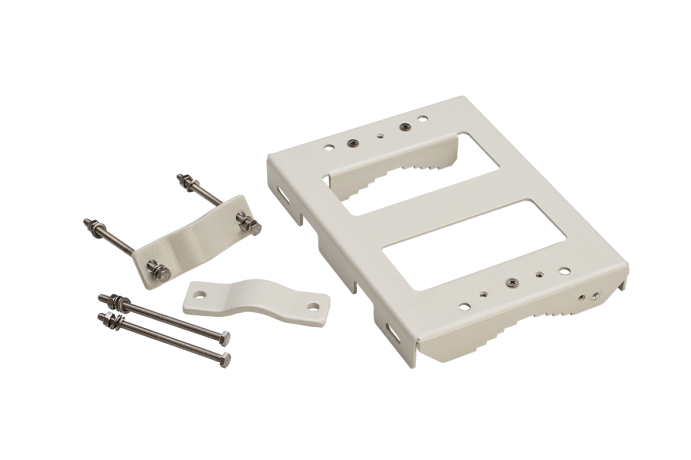

Outdoor mounting bracket

Status: In Production

Features:

  • Robust installation
  • Ease the installation process
  • Indoor and outdoor environment
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The outdoor mounting brackets  PD-OUT/MBK/ET and PD-OUT/MBK/S are designed for wall mount installations as well as small and large poles (up to 8’’ diameter) installations. The outdoor mounting package is designed to ease the installation of PoE systems.

Additional Features
  • Robust installation
  • Ease the installation process
  • Indoor and outdoor environment
Parametrics
Name
Value
Product Type
PoE and USB Accessories
PoE Systems Type
Outdoor Mounting Bracket
PoE Standard
NA
Power Per Port
NA
Operating Environment
Indoor/Outdoor
Number of Ports
NA
Data Rate
NA
Managed
NA
Input Power
NA
Operating Humidity (%)
NA
Operating Temperature (°C)
NA
Rack Mountable
NA
Warranty (Years)
1

Documents

Jump to:
×

Data Sheets

PD-OUT-MBK-ET Datasheet

570KB
PD-OUT-MBK-S Datasheet

527KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-IN/SP11
90.00000
1.129000
N/A
N/A
259x242x233mm
N/A
N/A
PD-INJ-WM-01
125.0000
1.910000
N/A
N/A
258x228x154mm
N/A
N/A
PD-INJ-WM-01-WT
125.0000
1.910000
N/A
N/A
258x228x154mm
N/A
N/A
PD-OUT/MBK/ET
1299.000
7.905000
N/A
N/A
262x226x167mm
N/A
N/A
PD-OUT/MBK/G
1453.000
8.424000
N/A
N/A
284x278x220mm
N/A
N/A
PD-OUT/MBK/S
1533.000
8.914000
N/A
N/A
310x285x230mm
N/A
N/A
PD-OUT/SP11
313.0000
4.740000
N/A
N/A
514x252x124mm
N/A
N/A
PD-PI30/AC
108.5000
4.258000
N/A
N/A
495x230x320mm
N/A
N/A
PD-POE-WM-01
125.0000
1.910000
N/A
N/A
258x228x154mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
