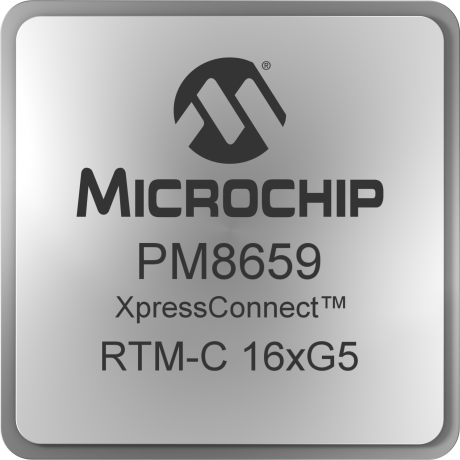

product primary image

PM8659

XpressConnect™ PCIe® Gen 5 and CXL Retimers

Status: Samples Available

Features:

  • PCIe Express 3.0/4.0/5.0
  • Compute Express Link 1.1/2.0
  • >80% lower latency than PCIe specification
  • Bifurcation/link subdivision (x1/x2/x4/x8/x16)
  • ChipLink™ Diagnostics Tool compatible with Windows®, Linux® and Mac® OS X
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

XpressConnect™ Retimers provide best-in-class signal conditioning for PCI Express® 5.0 and Compute Express Link™ 1.1/2.0 interconnects and support Intel's® PCIe 5.0 Retimer Supplemental Features and Standard BGA Footprint specification. XpressConnect Retimers triple the reach of PCIe Gen 5 electrical signals with minimal impact to latency to enable the most demanding computational workloads in artificial intelligence, machine learning, communication systems and high-performance computing applications.

XpressConnect Retimers support x1/x2/x4/x8/x16 bifurcation to connect to a wide range of PCIe and CXL devices. XpressConnect Retimers delivers the industry's lowest latency retimer solution with over 80% lower latency than the PCIe specification to maximize performance for PCIe and CXL devices. XpressConnect Retimers includes comprehensive diagnostics features, multiple configuration options, a simple management interface and low power to reduce total cost of ownership during design, bring-up, validation and production.

XpressConnect Retimers are ideal for enterprise servers, PCIe NVMe enclosures, all Flash NVMe arrays, PCIe fabrics, CXL accelerator/memory solutions, and other applications that require low latency, low power and secure PCIe and CXL retiming.

Additional Features
  • PCIe and CXL Features
    • Intel PCIe 5.0 Retimer Supplemental Features and Standard BGA Footprint Specification
    • PCIe Express 3.0/4.0/5.0
    • Compute Express Link 1.1/2.0
    • >80% lower latency than PCIe specification
    • Bifurcation/link subdivision (x1/x2/x4/x8/x16)
    • Automatic detection of pseudo port orientation
    • Lane reversal and lane polarity inversion
    • Passive copper and active optical cable support
    • Receiver detection bypass
  • Diagnostics and Debug
    • ChipLink™ Diagnostics Tool compatible with Windows®, Linux® and Mac® OS X
    • Real-time eye capture
    • LTSSM state machine logs and triggers
    • PCIe link EQ logs
    • Pattern generation, detection and error injection
    • Receiver lane margining
    • PCIe loopback
    • Real-time error injection
  • Management and Configuration
    • Dynamic configuration via BMC to SMBus
    • Static configuration through SMBus, I2C EEPROM
    • Pin straps to select configuration settings
    • Status pins for visual indication of device status
    • Analog preset tuning
  • Clocking and Power
    • Common, SRIS and SRNS clocking
    • One input and one output PCIe reference clock
    • Asynchronous upstream/downstream clocking
    • L1 PM sub states (Link power management)
  • Security
    • Embedded security features
Parametrics
Name
Value
Product Name
RTM-C 16xG5
Lanes
32
Width
x16
PCIe
5.0
CXL
2.0
Max Rate
32 GT/s
Ordering Number
PM8659A-F4EIP
