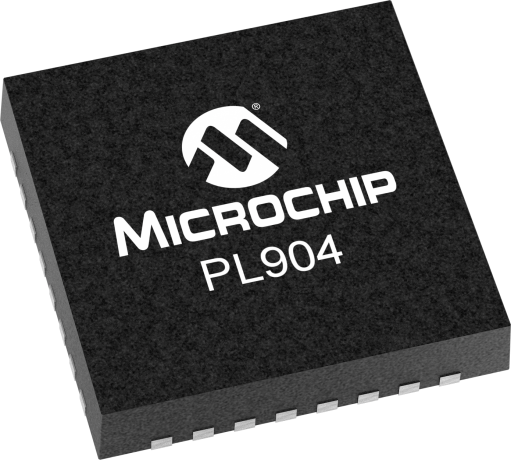

product primary image

PL904

Status: In Production

Features:

  • Input frequency up to 200MHz
  • Output frequency up to 850MHz
  • Programmable input type, differential or single-ended
  • Up to two outputs with LVPECL, LVDS, HCSL, or LVCMOS logic types
  • Output enable control for each output
  • Jitter attenuation of 20db at 3MHz spur frequency
  • Cleans up spurs to below 0.5psRMS phase jitter
  • Operating temperature range from -40°C to +85°C
  • Available in 32-pin QFN GREEN/RoHS-compliant package
  • PL902xxx: LVCMOS, period jitter cleaning
  • PL903xxx: Single-ended input, one differential output, phase noise cleaning
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The PL904xxx series is a small form-factor, high performance, programmable device and a member of Micrel's JitterBlocker factory programmable jitter attenuators. The JitterBlocker product family cleans deterministic jitter by attenuating spurious components in the phase noise, thereby improving the phase jitter and the overall phase noise. The PL904xxx is capable of reducing multiple pico seconds of phase jitter in a clock to a level below 0.5psRMS in most cases, making that clock usable for many more applications.The PL904xxx operates on a single 2.5V or 3.3V supply and is housed in a small QFN package for a broad range of applications.Input clock frequencies up to 250MHz can be filtered and frequency translation allows for output clock frequencies up to 850MHz. The input clock can be single-ended or differential.



Configure a part to your specific requirements with the CLOCKWORKS CONFIGURATOR tool.

Additional Features
    • Input frequency up to 200MHz
    • Output frequency up to 850MHz
    • Programmable input type, differential or single-ended
    • Up to two outputs with LVPECL, LVDS, HCSL, or LVCMOS logic types
    • Output enable control for each output
    • Jitter attenuation of 20db at 3MHz spur frequency
    • Cleans up spurs to below 0.5psRMS phase jitter
    • Operating temperature range from -40°C to +85°C
    • Available in 32-pin QFN GREEN/RoHS-compliant package
    • Related devices:
      • PL902xxx: LVCMOS, period jitter cleaning
      • PL903xxx: Single-ended input, one differential output, phase noise cleaning
Parametrics
Name
Value
Product Type
Clock Conditioning
Description
JitterBlocker with Differential Input/Output
PLLs
1
Input Frequency (MHz) Reference
12-850
# of Outputs
2
Voltage
2.5~3.3
PDB
False
OE
True
FSEL
False
CSEL
False
CLK
False
Output Logic
LVPECL,LVDS, HCSL,LVCMOS
Ultra Low Power
False
Output Frequency Max. (MHz)
12-850

Documents

Jump to:

Data Sheets

05/23/2016
552KB

Brochures

10/16/2015
552KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL904118UMG
0.064100
0.530612
32
VQFN
5x5x0.9mm
NiPdAu
e4
PL904119UMG
0.064100
0.530612
32
VQFN
5x5x0.9mm
NiPdAu
e4
PL904000UMG
0.064100
0.230833
32
VQFN
5x5x0.9mm
NiPdAu
e4
PL904116UMG
0.064100
0.530612
32
VQFN
5x5x0.9mm
NiPdAu
e4
PL904116UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
PL904117UMG
0.064100
0.530612
32
VQFN
5x5x0.9mm
NiPdAu
e4
PL904117UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
PL904119UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
PL904118UMG-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
