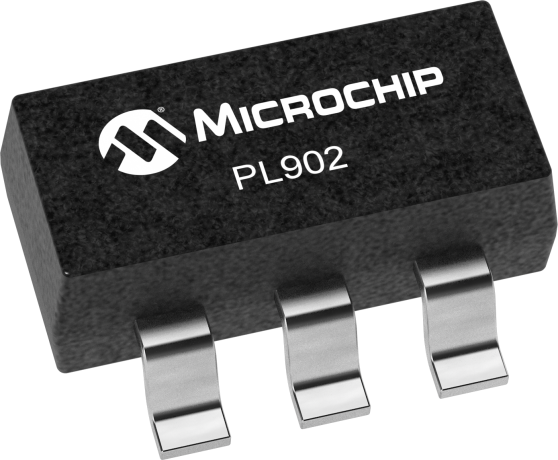

PL902

3 Output JitterBlocker

Status: In Production

Features:

  • Lowest power and smallest programmable jitter attenuator
  • Input/output frequency up to 200MHz
  • I/O pins can be configured as output enable (OE), frequency switching (CSEL), power down (PDB) input, or CLK1(2) output
  • <10μA current consumption with PDB active
  • Operating temperature range from –40°C to +85°C
  • Available in 6-pin SOT23 GREEN/RoHS-compliant package
  • PL903xxx: Single-ended input, differential output, and phase noise cleaning
  • PL904xxx: Differential input, two differential outputs, and phase noise cleaning
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

CREATE AND SAMPLE YOUR CUSTOM PL902 HERE

The PL902xxx series is a low-power, small form-factor, high-performance OTP-based device and a member of Micrel’s JitterBlocker, factory programmable jitter attenuators. The JitterBlocker product family cleans any deterministic jitter, thereby improving the peak-to-peak jitter, accumulated jitter, and even the phase noise. The PL902xxx is capable of reducing thousands of picoseconds of period jitter in a clock to a level below 100ps peak-to-peak, making that clock usable for many more applications.The PL902xxx operates on a single 2.5V or 3.3V supply, consumes little power, and is housed in a small SOT23 package for a broad range of applications. Programmable I/O pins can be configured as output enable (OE), configuration select (CSEL), power down (PDB) input, or CLK1 (2) output. The power down feature of PL902xxx, when activated, allows the IC to consume less than 10µA of power, while its programming flexibility allows filtering of any clock frequency, up to 200MHz.


Configure a part to your specific requirements with the CLOCKWORKS CONFIGURATOR tool.

Additional Features
    • Lowest power and smallest programmable jitter attenuator
    • Input/output frequency up to 200MHz
    • I/O pins can be configured as output enable (OE), frequency switching (CSEL), power down (PDB) input, or CLK1(2) output
    • <10μA current consumption with PDB active
    • Operating temperature range from –40°C to +85°C
    • Available in 6-pin SOT23 GREEN/RoHS-compliant package
    • Related devices:
      • PL903xxx: Single-ended input, differential output, and phase noise cleaning
      • PL904xxx: Differential input, two differential outputs, and phase noise cleaning
Parametrics
Name
Value
Product Type
Low-Jitter Clock Generators
Description
3 Output JitterBlocker
PLLs
1
Input Frequency (MHz) Reference
1-200
# of Outputs
12
Voltage
2.5 - 3.3
PDB
True
OE
True
FSEL
False
CSEL
True
CLK
True
Output Logic
PECL, LVDS, HCSL, CMOS
Ultra Low Power
False
Output Frequency Min. (MHz)
12
Output Frequency Max. (MHz)
850

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL902000
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902104USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902150USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902150USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902151USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902153USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902153USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902154USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902155USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902156USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902156USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902156USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902165USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902165USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902166USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902166USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902167USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902167USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902169USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902169USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902171USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902171USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902172USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902172USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902173USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902173USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902174USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902174USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902175USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902175USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902176USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902176USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902177USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902177USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902178USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902178USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902179USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902179USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902180USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902180USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902181USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902181USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902182USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902182USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902183USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902183USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902184USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902184USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902185USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902185USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902186USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902186USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902187USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902187USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902188USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902188USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902189USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902189USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902190USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902190USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902Q42USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902Q42USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902Q42USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902Q57USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902Q57USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902Q57USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902Q74USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902Q76USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902Q78USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902Q82USY-T5
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902191USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902191USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902192USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902192USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902193USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902193USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902194USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902194USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902195USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902195USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902196USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902196USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902197USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902197USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902198USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902198USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902199USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902199USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902200USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902200USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902201USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902201USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902202USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902202USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902203USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902203USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
PL902204USY
0.017000
0.047333
6
SOT-23

Matte Tin
e3
PL902204USY-TR
0.017000
0.046667
6
SOT-23

Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
