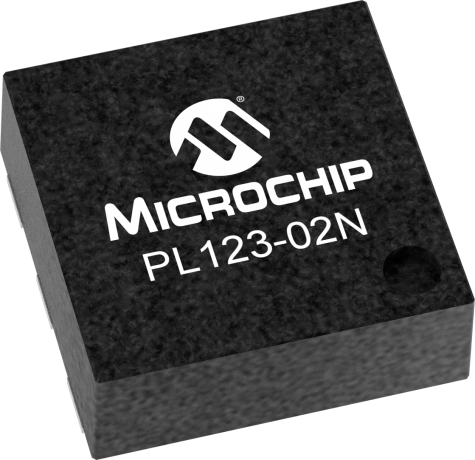

product primary image

PL123-02N

Status: In Production

Features:

  • Supports 3.3V, 2.5V, and 1.8V power supplies
  • 3.3V Supplies: DC – 200 MHz
  • 2.5V Supplies: DC – 150 MHz
  • 1.8V Supplies: DC – 100 MHz
  • Output Enable (OE) pin
  • Accepts SST and non SST clock signals
  • Operating temperature range from -40°C to 85°C
  • Available in space-saving 6-pin DFN GREEN/RoHS compliant package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The PL123-02N is a low-cost general purpose 1-to-2 LVCMOS fan-out buffer. An output enable (OE) pin is available to enable the outputs or disable them into an active low state. When the outputs are disabled, the IC consumes less than 5µA of power. The OE pin incorporates a pull up resistor giving a default condition of logic “1”.The input and outputs are LVCMOS levels and operate up to 200 MHz. Input signals with Spread Spectrum Modulation can also be used. The spread spectrum modulation will not be affected by the PL123-02N as the signal passes through the IC. A space-saving 6-pin DFN package enables designs requiring minimal board area.

Additional Features
    • Supports 3.3V, 2.5V, and 1.8V power supplies
    • Frequency Support:
      • 3.3V Supplies: DC – 200 MHz
      • 2.5V Supplies: DC – 150 MHz
      • 1.8V Supplies: DC – 100 MHz
    • Output Enable (OE) pin
    • LVCMOS Input/Output
      • Accepts SST and non SST clock signals
    • Operating temperature range from -40°C to 85°C
    • Available in space-saving 6-pin DFN GREEN/RoHS compliant package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:2
Input
LVCMOS
Output
LVCMOS
Supply Voltage
1.8/2.5/3.3
Max Freq (GHz)
0.2
Max Prop Delay (ps)
Icc (mA)
1
Max Within Device Skew (ps)
500
OE
True
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Type
LVCMOS

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL123-02NGC
0.005700
2.500000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
PL123-02NGC-R
0.005700
0.100000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
PL123-02NGI
0.005700
2.500000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
PL123-02NGI-R
0.005700
0.100000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
