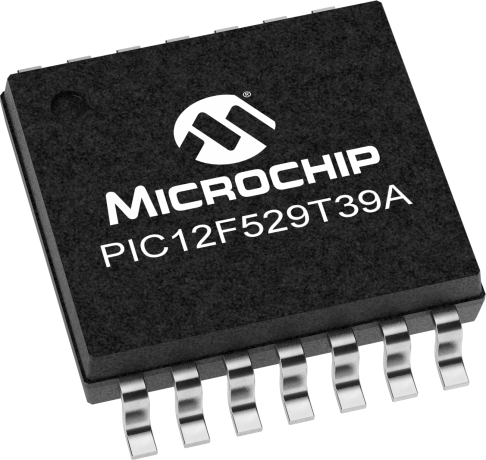

PIC12F529T39A

Status: In Production

Features:

  • Factory calibrated to ±1%
  • In-Circuit Serial Programming™ (ICSP™)
  • Power-on Reset (POR)
  • Device Reset Timer (DRT)
  • Watchdog Timer (WDT) with Dedicated On-Chip
  • Programmable Code Protection
  • Multiplexed MCLR Input Pin
  • Internal Weak Pull-ups on I/O Pins
  • Power-Saving Sleep mode
  • Wake-up from Sleep on Pin Change
  • INTRC: 4 MHz or 8 MHz precision internal RC oscillator
  • EXTRC: External low-cost RC oscillator
  • XT: Standard crystal/resonator
  • LP: Power-saving, low-frequency crystal
  • Fully Integrated Transmitter
  • FSK Operation up to 100 kbps
  • OOK Operation up to 10 kbps
  • Frequency-Agile Operation in 310, 433, 868 and 915 MHz Bands
  • Configurable Output Power: +10 dBm, 0 dBm
  • 225 nA @ 2.0V, RF Sleep, typical
  • 175 µA @ 4 MHz, 2.0V, RF Sleep, typical
  • 9.17 mA @ 4 MHz, 2.0V, RF on at +0 dBm, typical
  • 15.17 mA @ 4 MHz, 2.0V, RF on at +10 dBm, typical
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

PIC micro® with fully integrated RF Transmitter capable of operation in 310, 433, 868 and 915 MHz Bands.

Additional Features

    Special Microcontroller Features:

    • 8 MHz Precision Internal Oscillator:
      • Factory calibrated to ±1%
    • In-Circuit Serial Programming™ (ICSP™)
    • Power-on Reset (POR)
    • Device Reset Timer (DRT)
    • Watchdog Timer (WDT) with Dedicated On-Chip
    • RC Oscillator for Reliable Operation
    • Programmable Code Protection
    • Multiplexed MCLR Input Pin
    • Internal Weak Pull-ups on I/O Pins
    • Power-Saving Sleep mode
    • Wake-up from Sleep on Pin Change
    • Selectable Oscillator Options:
      • INTRC: 4 MHz or 8 MHz precision internal RC oscillator
      • EXTRC: External low-cost RC oscillator
      • XT: Standard crystal/resonator
      • LP: Power-saving, low-frequency crystal

    RF Transmitter:

    • Fully Integrated Transmitter
    • FSK Operation up to 100 kbps
    • OOK Operation up to 10 kbps
    • Frequency-Agile Operation in 310, 433, 868 and 915 MHz Bands
    • Configurable Output Power: +10 dBm, 0 dBm

    Low-Power Features/CMOS Technology:

    • Standby Current:
      • 225 nA @ 2.0V, RF Sleep, typical
    • Operating Current:
      • 175 µA @ 4 MHz, 2.0V, RF Sleep, typical
      • 9.17 mA @ 4 MHz, 2.0V, RF on at +0 dBm, typical
      • 15.17 mA @ 4 MHz, 2.0V, RF on at +10 dBm, typical
Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
2.3
CPU Speed (MIPS/DMIPS)
2
SRAM Bytes
201
Data EEPROM/HEF (bytes)
64
Timers
1 x 8-bit
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2 to 3.7
Pin Count
8

Documents

Jump to:

Programming Specifications

Brochures

07/23/2019
4078KB
06/23/2015
1437KB

White Papers

Development Environment

  • Programmers
Programmers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price as its predecessor.

The MPLAB PICkit 4 now has Programmer-to-Go functionality for 8-bit and 32-bit PIC MCUs. The firmware update comes with MPLAB X IDE v5.25. More to come!


The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®,

...

Learn More
Add To Cart
MPLAB ICD 4 In-Circuit Debugger
MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

...

Learn More
Add To Cart
PICkit 3 In-Circuit Debugger
PICkit 3 In-Circuit Debugger ( PG164130 )
(Not Recommended for new design)

The PICkit 3 is not recommended for new designs and no new device support will be added to it as of June 1, 2019. For new designs, please see the MPLAB PICKit 4.

Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to

...

Learn More
Add To Cart
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164306   PartNo: PIC12F529T39A (14ST)
Learn More
Add To Cart
MPLAB ICD 3 In-Circuit Debugger
MPLAB ICD 3 In-Circuit Debugger ( DV164035 )
(Not Recommended for new design)

 The MPLAB ICD 3 is a mature product and no new device support will be added to it as of June 1, 2019. For new designs, consider using the MPLAB ICD 4 (DV164045)

MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for

...

Learn More
Add To Cart
MPLAB REAL ICE PROBE KIT
MPLAB REAL ICE PROBE KIT ( DV244005 )
(Not Recommended for new design)



Not recommended for new designs and no new device support will be added to it as of June 1, 2019. For new designs, please consider the MPLAB ICD 4 (DV164045).

MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for

...

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
8
2.3
201
$0.95
