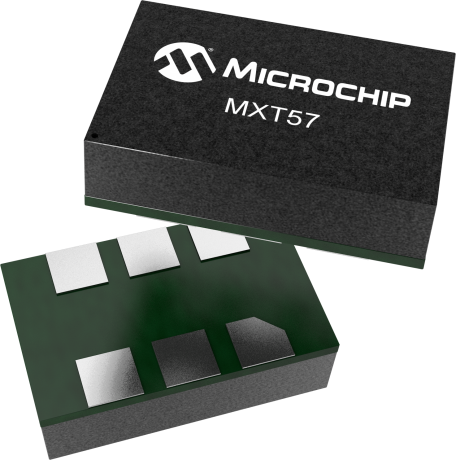

MXT57

High-stability TCXO

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MXT57 product line is a family of ultra-low jitter, industry standard TCXO that are designed to maximize performance in networking, storage, server, and telecommunications equipment. These devices are capable of ±2.5 ppm total stability across the –40°C to +85°C operating temperature range, using proven assembly methods that improve long term reliability and minimize aging drift compared to traditional TCXO assembly processes.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.

Additional Features
  • Output Frequency 2.5 MHz to 850 MHz
  • Phase Noise as low as 190 fs (F0 = 156.25 MHz, Integration Bandwidth 1.875 MHz to 20 MHz)
  • Ultra-Low Spurs (–100 dBc or greater typical)
  • ±2.5 ppm over voltage and temperature
  • Supports CMOS, LVPECL, LVDS, and HCSL outputs
  • 2.375V to 3.63V supply voltage
  • Output Enable Option: Can be Ordered on Pin 1 or Pin 2
  • Industry-standard and space-saving 5.0 mm x 7.0 mm 6-lead package
  • –40°C to +85°C operating temperature range
  • Pb-Free and RoHS Compliant
  • Analog TCXO, No phase bumps during temperature transitions
  • Short production lead time
Parametrics
Name
Value
Supply Voltage (V)
2.375 - 3.63
Output Type
LVCMOS,LVPECL,LVDS,HCSL
Output Frequency Min (MHz)
10
Output Frequency Max (MHz)
860
# of Outputs
1
Phase Jitter
0.5
Output Logic
LVCMOS,LVPECL,LVDS,HCSL

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MXT573AA00000000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573AB00000000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573ABC200M000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573ABC200M000-TR
0.092400
0.536800
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573AC00000000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573AD00000000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573BA00000000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573BB00000000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573BBA864M000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573BBA864M000-TR
0.092400
0.536800
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573BC00000000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573BD00000000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT574AA00000000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
MXT573ABA200M000
0.092400
0.116279
6
LLGA
7x5x1.4mm
NiAu
e4
To see a complete listing of RoHS data for this device, please Click here
