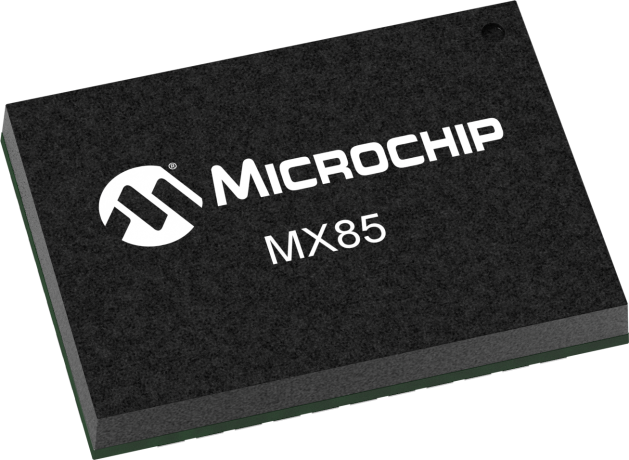

product primary image

MX85

Integrated multi-output clock generator

Status: In Production

Features:

  • Generates 5 output clocks
  • Highly integrated, includes crystal and fanout buffers
  • Ultra-low 162fs jitter, including fanout buffer (156MHz output frequency, 12kHz to 20MHz integration bandwidth, including crosstalk)
  • Integrated power supply noise reduction and frequency select
  • Independent OE and VDDO per output bank
  • Supports LVPECL, LVDS, HCSL and CMOS outputs
  • ±50ppm total stability option (includes aging)
  • -40°C to +85°C temperature range
  • 38-Pin 5mm x 7mm LGA package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

CREATE AND SAMPLE YOUR CUSTOM MX85 HERE

Microchip's MX85 family of parts are ultra-low phase noise clocking solutions that integrate the crystal, synthesizer, and fanout buffers, providing up to two frequencies from a single 5mm × 7mm LGA package.  Integrating the entire clock chain means that 162fs jitter performance includes fanout and crosstalk. The MX85 family offers a series of crystal frequency options that generate commonly-required Ethernet, storage, telecommunications, and computing clock frequencies up to 840MHz. Configuring the MX85 parts using OTP options, a variety of output frequencies are available.  Optimized for applications that require performance, reliability, and high integration, the MX85 family delivers the complete clocking chain from crystal to fanout buffer.

Additional Features
  • Generates 5 output clocks
  • Highly integrated, includes crystal and fanout buffers
  • Ultra-low 162fs jitter, including fanout buffer (156MHz output frequency, 12kHz to 20MHz integration bandwidth, including crosstalk)
  • Integrated power supply noise reduction and frequency select
  • Independent OE and VDDO per output bank
  • Supports LVPECL, LVDS, HCSL and CMOS outputs
  • ±50ppm total stability option (includes aging)
  • -40°C to +85°C temperature range
  • 38-Pin 5mm x 7mm LGA package
Parametrics
Name
Value
Product Type
Low-Jitter Clock Generators
# of Outputs
5
Voltage
2.5, 3.3
Output Logic
CMOS, PECL, LVDS, HCSL
Output Frequency Min. (MHz)
12
Output Frequency Max. (MHz)
850

Documents

Jump to:

Board Design Files


845KB

101KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MX852FB0163
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0163-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852A00000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852AB0070
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852AB0070-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852B00000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0020
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0020-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0030
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0030-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0060
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0060-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0063
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0084
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0084-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0117
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0141
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0141-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0147
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0147-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0157
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0157-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BD0000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BF0000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BH0000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BH0121
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BH0121-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852C00000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852CB0069
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852CB0069-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852CD0000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852CH0000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852CH0088
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852CH0088-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852D00000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852E00000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0027
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0027-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0053
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0053-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0058
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0058-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0085
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0085-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0102
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0102-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0103
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0122
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0122-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0131
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0131-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0136
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0136-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0145
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0145-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0148
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0148-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0150
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0150-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0151
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0151-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0152
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0152-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0156
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0156-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0161
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0161-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0162
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0162-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852ED0000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852ED0034
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0093
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0093-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0094
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0094-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0095
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0095-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0120
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0120-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0140
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EH0140-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852F00000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0142
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0142-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0143
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0143-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0146
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0146-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0149
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0149-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0160
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FB0160-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FD0000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852FD0035
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852G00000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852GB0073
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852GB0082
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852L00000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852LD0000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852LH0000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852LH0089
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852LH0089-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852Q00000
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852QB0090
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852QB0090-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0164
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0164-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0165
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852BB0165-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0168
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0168-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0169
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0169-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0170
0.057304
0.181861
38
LLGA
5x7x1.45mm
NiAu
e4
MX852EB0170-TR
0.057304
0.536400
38
LLGA
5x7x1.45mm
NiAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.

Buy from Microchip

Grid
View
Table
View
Filter:
Apply
Clear
Only show products with samples
Product
Leads
Package Type
Temp Range
Packing Media
5K Pricing
Buy
