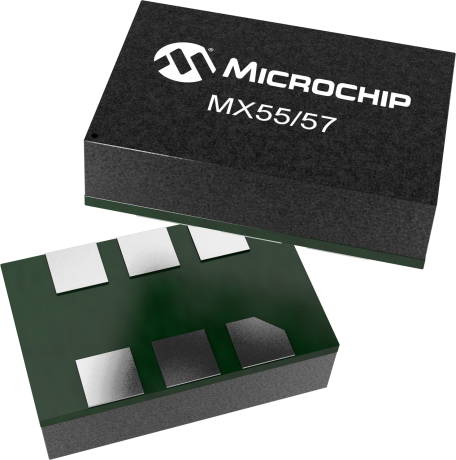

product primary image

MX55/57

Status: In Production

Features:

  • Industry standard 6-pin 3.2mm x 5.0mm and 7.0x5.0mm package
  • Integrated crystal
  • Output up to 850MHz
  • Typical phase jitter ranging from 160fs
  • Programmable output buffers
  • OE Pin selectable
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MX55/MX57 product line is an ultra-low jitter family of industry standard crystal oscillators (XO) designed to maximize performance in networking, storage, server, and telecommunications equipment. With typical phase jitter ranging from 160fs to 230fs depending on output format, output frequency, and package, these devices improve signal to noise ratio and bit error rate in high line rate applications such as 10/40/100GEthernet, optical communications, PCI Express, Fibre Channel/SAS, CPRI/OBSAI, XAUI, and backplane SERDES links.The MX55 is an industry leading ultra-low jitter XO family available in 3.2mm x 5mm package. The MX57 is an industry leading ultra-low jitter XO available in 5mm x 7mm package. These devices meet ±50ppm total stability across -40°C to +85°C operating temperature range using proven high reliability assembly methods that improve long term reliability and minimize aging drift compared to traditional XO assembly processes.With programmable output format and OE options, these XOs can be configured to be footprint compatible with any standard 6-pin XO available today. Standard options and frequencies are available

FOR CUSTOM DATASHEETS, PLEASE CLICK HERE.
Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.



Additional Features
    • Industry standard 6-pin 3.2mm x 5.0mm and 7.0x5.0mm package
    • Integrated crystal
    • Output up to 850MHz
    • Typical phase jitter ranging from 160fs
    • Programmable output buffers
    • OE Pin selectable
    Parametrics
    Name
    Value
    Sub Group 1
    Low Jitter Oscillators
    Supply Voltage (V)
    2.25 - 3.6
    Output Type
    HCSL
    Output Frequency Min (MHz)
    2.3
    Output Frequency Max (MHz)
    460
    # of Outputs
    1
    Phase Jitter
    1.70 / 0.3 (200k - 20M)
    Typ Jitter (1#875-20MHz)
    100
    Output Logic
    HCSL
    Icc (mA)
    100

    Documents

    Jump to:

    Data Sheet

    03/22/2018
    1336KB

    Development tools data is currently unavailable.


    Rohs data is currently unavailable.
