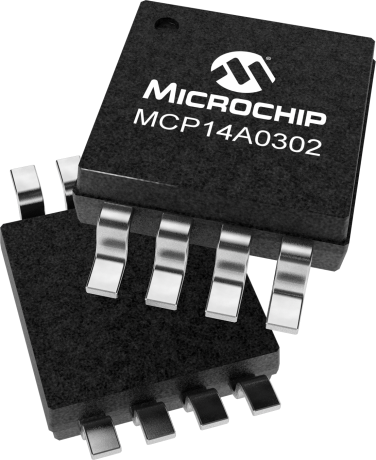

product primary image

MCP14A0302

3.0A MOSFET Driver With Low Threshold Input and Enable

Status: In Production

Features:

  • High Peak Output Current: 3.0A (typical)
  • 4.5V to 18V
  • Low Shot-Through/Cross-Conduction Current in Output Stage
  • 1800 pF in 13 ns (typical)
  • Short Delay Times: 15 ns (tD1), 18 (tD2) (typical)
  • Low Supply Current: 360 µA (typical)
  • Low-Voltage Threshold Input and Enable with Hysteresis
  • Latch-Up Protected: Withstands 500 mA Reverse Current
  • 8-Lead MSOP
  • 8-Lead SOIC
  • 8-Lead 2x2 WDFN
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP14A0301/2 devices are high-speed MOSFET drivers that are capable of providing up to 3.0A of peak current while operating from a single 4.5V to 18V supply. The inverting (MCP14A0301) or non-inverting (MCP14A0302) single channel output is directly controlled from either TTL or CMOS (2V to 18V) logic. These devices also feature low shoot-through current, matched rise and fall times, and short propagation delays which make them ideal for high switching frequency applications.

The MCP14A0301/2 family of devices offer enhanced control with Enable functionality. The active-high Enable pin can be driven low to drive the output of the MCP14A0301/2 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pin floating for standard operation.

Additionally, the MCP14A0301/2 devices feature separate ground pins (AGND and GND), allowing greater noise isolation between the level-sensitive Input/Enable pins and the fast, high-current transitions of the push-pull output stage.

These devices are highly latch-up resistant under any condition within their power and voltage ratings. They can accept up to 500 mA of reverse current being forced back into their outputs without damage or logic upset. All terminals are fully protected against electrostatic discharge (ESD) up to 1.75 kV (HBM) and 200V (MM).

Additional Features
    • High Peak Output Current: 3.0A (typical)
    • Wide Input Supply Voltage Operation Range:
      • 4.5V to 18V
    • Low Shot-Through/Cross-Conduction Current in Output Stage
    • High Capacitive Load Drive Capability:
      • 1800 pF in 13 ns (typical)
    • Short Delay Times: 15 ns (tD1), 18 (tD2) (typical)
    • Low Supply Current: 360 µA (typical)
    • Low-Voltage Threshold Input and Enable with Hysteresis
    • Latch-Up Protected: Withstands 500 mA Reverse Current
    • Space-Saving Packages:
      • 8-Lead MSOP
      • 8-Lead SOIC
      • 8-Lead 2x2 WDFN
Parametrics
Name
Value
Driver Type
Single
Configuration
Non-Inverting
Peak Output Current (source/sink, A)
3.0/3.0
Output Resistance (source/sink, Ω)
2.2/1.5
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
15/18
Rise/Fall Time (Tr/Tf, ns)
13/12
Capacitive Load Drive
1000 pF in 13.0 ns
Features
Low Input Threshold and Enable Pin

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP14A0302-E/MS
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP14A0302T-E/MS
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP14A0302T-E/KBA
0.258333
8
WDFN
2x2x0.8mm
Matte Tin
e3
MCP14A0302-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP14A0302T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
