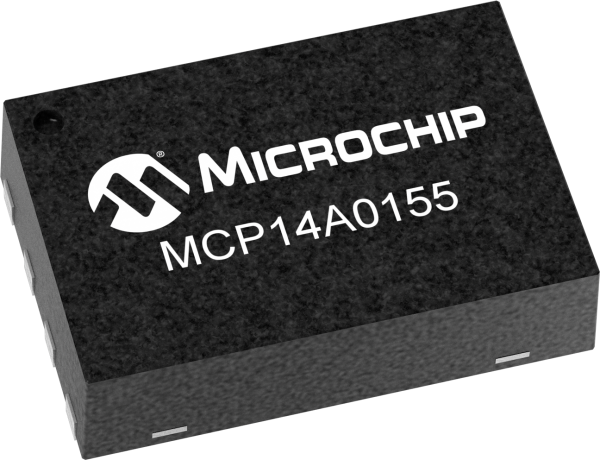

product primary image

MCP14A0155

1.5A Dual MOSFET Driver with Low Threshold Input and Enable

Status: In Production

Features:

  • High Peak Output Current: 1.5A (typical)
  • Wide Input Supply Voltage Operating Range: 4.5V to 18V
  • Low Shoot-Through/Cross-Conduction Current in Output Stage
  • High Capacitive Load Drive Capability: 1000 pF in 11.5 ns (typical
  • Short Delay Times: 25 ns (tD1), 24 ns (tD2) (typical)
  • Low Supply Current: 750µA (typical)
  • Low-Voltage Threshold Input and Enable with Hysteresis
  • Latch-Up Protected: Withstands 500mA Reverse Current
  • 8-Lead MSOP
  • 8-Lead SOIC
  • 8-Lead 2x3 TDFN
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

MOSFET drivers that are capable of providing up to 1.5A of peak current while operating from a single 4.5V to 18V supply. There are three output configurations available; dual inverting (MCP14A0153), dual noninverting (MCP14A0154) and complementary (MCP14A0155). These devices feature low shoot-through current, matched rise and fall times, and short propagation delays which make them ideal for high switching frequency applications.

The MCP14A0153/4/5 family of devices offer enhanced control with Enable functionality. The active-high Enable pins can be driven low to drive the corresponding outputs of the MCP14A0153/4/5 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pins floating for standard operation.

Additional Features
    • High Peak Output Current: 1.5A (typical)
    • Wide Input Supply Voltage Operating Range: 4.5V to 18V
    • Low Shoot-Through/Cross-Conduction Current in Output Stage
    • High Capacitive Load Drive Capability: 1000 pF in 11.5 ns (typical
    • Short Delay Times: 25 ns (tD1), 24 ns (tD2) (typical)
    • Low Supply Current: 750µA (typical)
    • Low-Voltage Threshold Input and Enable with Hysteresis
    • Latch-Up Protected: Withstands 500mA Reverse Current
    • Space-Saving Packages
      • 8-Lead MSOP
      • 8-Lead SOIC
      • 8-Lead 2x3 TDFN
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Dual
Configuration
Complementary
Peak Output Current (source/sink, A)
1.5/1.5
Output Resistance (source/sink, Ω)
4.5/3
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
32/24
Rise/Fall Time (Tr/Tf, ns)
11/10
Capacitive Load Drive
1000 pF in 11.5 ns
Features
Low Input Threshold and Enable Pin

Documents

Jump to:

Development Environment

  • Software Libraries
Software Libraries
Analog Simulation - MCP14A0153

MOSFET drivers that are capable of providing up to 1.5A of peak current while operating from a single 4.5V to 18V supply. There are three output configurations available; dual inverting...

Learn More
Analog Simulation - MCP14A0154

MOSFET drivers that are capable of providing up to 1.5A of peak current while operating from a single 4.5V to 18V supply. There are three output configurations available; dual inverting...

Learn More
Analog Simulation - MCP14A0155

MOSFET drivers that are capable of providing up to 1.5A of peak current while operating from a single 4.5V to 18V supply. There are three output configurations available; dual inverting...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP14A0155-E/MS
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP14A0155T-E/MS
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP14A0155T-E/MNY
0.014300
0.248485
8
TDFN
2x3x0.8mm
NiPdAu
e4
MCP14A0155-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP14A0155T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
