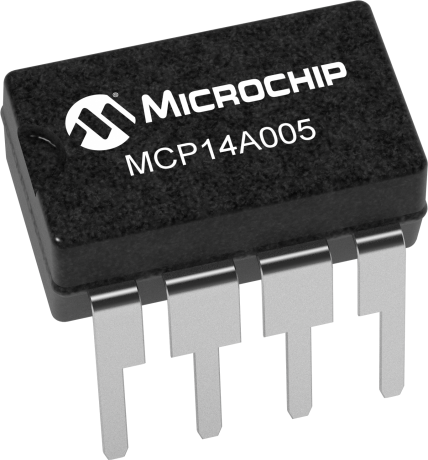

product primary image

MCP14A005

Status: In Production

Features:

  • High Peak Output Current: 0.5 A (typical)
  • Wide Input Supply Voltage Operating Range: 4.5 V to 18 V
  • Low Shoot-Through/Cross-Conduction Current in Output Stage
  • 1000 pF in 40 ns (typical)
  • Short Delay Times: 33 ns (tD1), 24 ns (tD2) (typical)
  • Low Supply Current: 375 μA (typical)
  • Low Voltage Threshold Input and Enable with Hysteresis: 1.2 to 1.6 V
  • Latch-Up Protected: Withstands 500 mA Reverse Current
  • 6L SOT-23
  • 6L 2x2 DFN
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP14A0051 and MCP14A0052 are inverting and non-inverting, 500mA MOSFET drivers in 2x2 DFN and SOT-23 packages. These high-speed MOSFET drivers allow controllers and MCUs to quickly charge and discharge capacitive loads. The small package sizes allow the gate driver to be positioned close to the MOSFET's physical gate connection, which minimizes gate bounce caused by the parasitic effects of PCB layout and reduces EMI. Rise time, fall time, propagation delay and cross-conduction current are all minimized. In addition, these devices feature a unique architecture with low input thresholds, ideally suited for use with a low-voltage MCU to minimize power losses within the system.

Additional Features
    • High Peak Output Current: 0.5 A (typical)
    • Wide Input Supply Voltage Operating Range: 4.5 V to 18 V
    • Low Shoot-Through/Cross-Conduction Current in Output Stage
    • High Capacitive Load Drive Capability:
      • 1000 pF in 40 ns (typical)
      • Short Delay Times: 33 ns (tD1), 24 ns (tD2) (typical)
    • Low Supply Current: 375 μA (typical)
    • Low Voltage Threshold Input and Enable with Hysteresis: 1.2 to 1.6 V
    • Latch-Up Protected: Withstands 500 mA Reverse Current
    • Space-Saving Packages:
      • 6L SOT-23
      • 6L 2x2 DFN
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Configuration
Non-Inverting
Peak Output Current (source/sink, A)
0.5
Output Resistance (source/sink, Ω)
12.5
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
35
Rise/Fall Time (Tr/Tf, ns)
40
Capacitive Load Drive
1000pF in 40ns
Features
Low Thresholds

Documents

Jump to:

Data Sheet


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP14A0051T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP14A0052T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP14A0051T-E/CH
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
MCP14A0052T-E/CH
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
