The SAM DA1 ARM® Cortex®-M0+ -based microcontrollers are operating at 48MHz (45DMIPS). The ATSAMDA1G16A provides 64KB Flash, 8kB SRAM and 2KB RWW Flash. The connectivity peripheral set consists of 6 serial communication modules (SERCOM) that each can be configured to act as a USART, UART, SPI and I²C. Additional connectivity options are provided by the on-chip one channel Inter-IC sound interface (I²S) and the full-speed USB 2.0 embedded host and device.

Automotive Production Devices
The ATSAMDA1 family is AEC-Q100 Grade 2 qualified. The standard device does not go through the automotive production flow, and there are two options for ordering devices with the automotive production flow.

1) A customer specific part number will be assigned and designated with suffix to the base part number (i.e. ATSAMDA1G16A-MBTV02.)  A customer specific PPAP is available on request.
2) A generic suffix will be added to the base part number (i.e. ATSAMDA1G16A-MBTVA0.) A PPAP is unavailable for these devices.

Please contact your local Microchip sales representative for additional information.

Processor

• ARM Cortex-M0+ CPU running at up to 48MHz
• Single-cycle hardware multiplier
• Micro trace buffer

Memories

• 64KB in-system self-programmable Flash
• 2KB Read-While-Write (RWW) Flash section
• 8KB SRAM memory

System

• Power-on reset (POR) and brown-out detection (BOD)
• Internal and external clock options with 48MHdigital frequency locked loop (DFLL48M) and 48MHto 96MHz
• fractional digital phase locked loop (FDPLL96M)
• External interrupt controller (EIC)
• 16 external interrupts
• One non-maskable interrupt
• Two-pin serial wire debug (SWD) programming, test and debugging interface

Low power

• Idle and standby sleep modes
• SleepWalking peripherals

Peripherals

• 8-channel direct memory access controller (DMAC)
• 12-channel event system
• Five 16-bit timer/counters (TC), configurable as either:
  • One 16-bit TC with compare/capture channels
  • One 8-bit TC with compare/capture channels
  • One 32-bit TC with compare/capture channels, by using two TCs
• Three 16-bit timer/counters for control (TCC), with extended functions:
  • Up to four compare channels with optional complementary output
  • Generation of synchronized pulse width modulation (PWM) pattern across port pins
  • Deterministic fault protection, fast decay and configurable dead-time between complementary output
  • Dithering for enhancing resolution with up to 5-bit and reduce quantization error
• 32-bit real time counter (RTC) with clock/calendar function
• Watchdog timer (WDT)
• CRC-32 generator
• One full speed (12Mbps) universal serial bus (USB) 2.0 controller
  • Device 2.0 and reduced-host low speed and full speed
  • Flexible end-point configuration and management with dedicated DMA channels
  • On-chip transceivers including pull-ups and serial resistors
  • Crystal-less operation in device mode
• Six serial communication interfaces (SERCOM), each configurable to operate as either:
  • USART with full-duplex and single-wire half-duplex configuration
  • I2C up to 3.4MHz
  • SPI
  • LIN slave
• One two-channel inter-IC sound (I²S) interface
• One 12-bit, 350ksps analog-to-digital converter (ADC) with up to 14 channels
  • Differential and single-ended input
  • 1/2x to 16x programmable gain stage
  • Automatic offset and gain error compensation
  • Oversampling and decimation in hardware to support 13-, 14-, 15- or 16-bit resolution
• 10-bit, 350ksps digital-to-analog converter (DAC)
• Two analog comparators (AC) with window compare function
• Peripheral Touch Controller (PTC)
  • Up to 256-channel capacitive touch and proximity sensing

I/O

• 38 GPIO pins

Packages

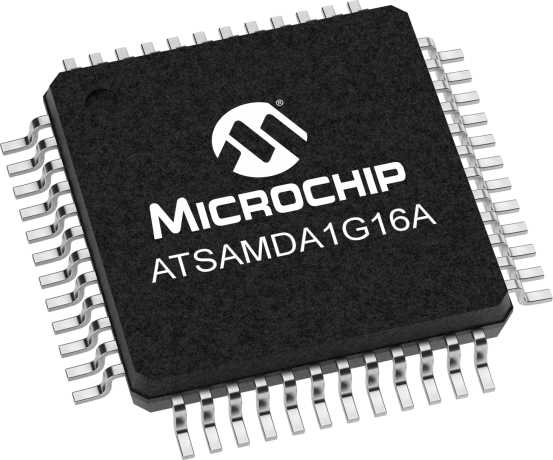

• 48-pin TQFP, QFN

Operating voltage

• 2.7V to 3.63V

Temperature range

• –40 to +105°C
