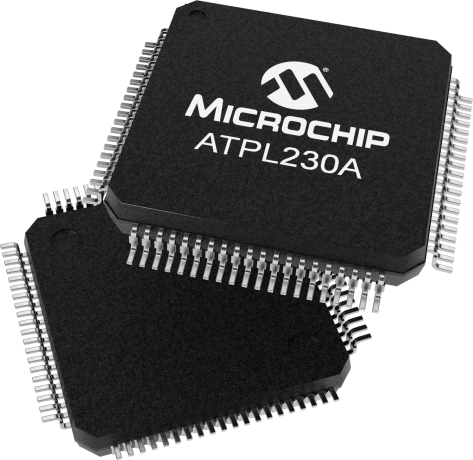

ATPL230A

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

ATPL230A is a power line communications base band modem, compliant with the PHY layer of PRIME (Power Line Intelligent Metering Evolution) specification. PRIME is an open standard technology used for Smart Grid applications like Smart Metering, Industrial Lighting and Automation, Home Automation, Street Lighting, Solar Energy and PHEV Charging Stations.

ATPL230A PRIME device includes enhanced features such as additional robust modes and frequency band extension. ATPL230A is able to operate in independently selectable transmission bands up to 472 kHz, achieving baud rates ranging from 5.4 kbps up to 128.6 kbps. ATPL230A has been conceived to be bundled with an external Microchip MCU or MPU. Microchip provides a PRIME PHY layer library which is used by the external MCU/MPU to take control of ATPL230A PHY layer device.

Parametrics
Name
Value
Device Type
Transceiver
Technology
Prime
Crypto Engine
AES128
Temperature Range (°C)
-40 to 85
Frequency Band
CENELEC-A, FCC & ARIB

Documents

Jump to:

Data Sheet

12/10/2016
1992KB

Brochures

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATBASENODE-EK
ATBASENODE-EK ( ATBASENODE-EK )

The ATBASENODE-EK comprises one ATPL230ABN board and three couplings (for CEN-A, ARIB and FCC frequency bands), allowing evaluation of point to point Power Line Communications performance.
The PRIME Base Node reference design contained in this evaluation kit can be used to implement either complex, fully-featured Data Concentrators or simpler, less featured Gateway devices.
...

Learn More
Add To Cart
ATPANCOORDINATOR-EK
ATPANCOORDINATOR-EK ( ATPANCOORDINATOR-EK )

The ATPANCOORDINATOR-EK comprises one ATPL250ABN board and three couplings (for CEN-A, ARIB and FCC frequency bands), allowing evaluation of point to point Power Line Communications performance.

It implements an Atmel® Cortex™-M7 device acting as MCU host, combined with ATPL250A modem for PLC (Power Line Communication). ATPL250A is a power line communications base band...

Learn More
Add To Cart
ATPL230A-EK
ATPL230A-EK ( ATPL230A-EK )
(Not Recommended for new design)

ATPL230A-EK is an evaluation kit for the PL230 modem for Power Line Communication from Microchip. PL230 device has been conceived to be bundled with an external Microchip MCU, which controls PL230 modem.

ATPL230A-EK includes an ATPL230 modem and a SAM4C16C  ARM® Cortex™ microcontroller. This development board provides a full featured platform to develop a complete smart

...

Learn More
Add To Cart
EVK for ATPL360
EVK for ATPL360 ( ATPL360-EK )

ATPL360-EK is an evaluation kit for the PL360B modem from Microchip. The evaluation kit includes two PL360MB smart metering boards, allowing to evaluate the performance of PL360B device in point to point links using Power Line Communication (PLC).

Each PL360MB board in this evaluation kit is a full-featured platform to develop a complete Smart Meter. PL360MB boards include a PL360B...

Learn More
Add To Cart
ATSAM4CP16B-EK
ATSAM4CP16B-EK ( ATSAM4CP16B-EK )
(Not Recommended for new design)

SAM4CP16B Evaluation Kit shows the capabilities of SAM4CP16B for Smart Metering platforms with embedded Power Line Communications. The EK includes a fully operational PRIME (PoweR line Intelligent Metering Evolution) communications stack. PRIME is a mature, consolidated and worldwide accepted standard for OFDM-based power line communications, with focus on providing Smart Grid services over

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATPL230A-AKU-R
0.510800
0.511000
80
LQFP
12x12x1.4mm
Matte Tin
e3
ATPL230A-AKU-Y
0.510800
1.714286
80
LQFP
12x12x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
