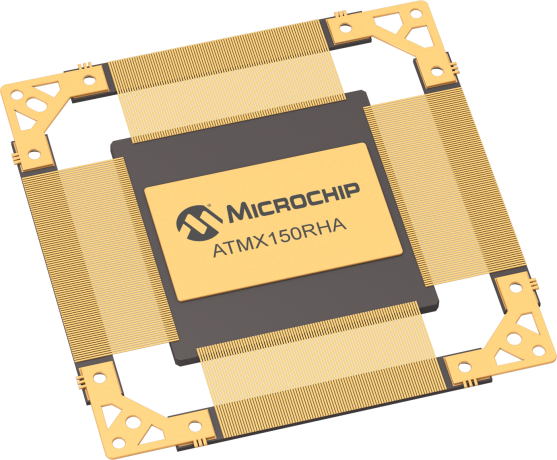

product primary image

ATMX150RHA

Rad-Hard Mixed Signal Technology

Status: In Production

Features:

  • Up to 22 usable Mgates (equivalent NAND2)
  • ADC12RHA - ADC 12-bit 1 Msps
  • DAC12RHA - DAC 12-bit 1 Msps
  • No single event latch-up below LET threshold of 75 MeV/mg/cm² at 125°C;
  • TID test up to 300kRads (Si) for 1.8V and 3.3V devices, and 150kRads (Si) for 5V and HV I/O, according to Mil-Std 883 TM1019
View More

  • Radiation Data
    Available

  • Buy
    Now
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

Fully designed, tested and qualified in Europe, ATMX150RHA is a mixed-signal Technology offer that provides high-performance and high-density solutions for Aerospace and Defense applications. ATMX150RHA covers a digital offer and extends it up to 22 million gates with a comprehensive library of standard logic & I/O cells.

With a set of qualified analog IPs, such as voltage regulators, voltage reference and monitoring devices, clock synthesizer and signal conditioning, ATMX150RHA eases the design of mixed-signal ASICs. The ATMX150RHA is the technology supporting our SAMRH71 and SAMRH707 radiation hardened microcontroller family.

The availability of a 5V to 1.8V regulator and the 5V tolerant IO permits easy re-targeting of obsolete or end-of-life ASICs with 5V core supply. The ATMX150RHA offers some High Voltage possibilities as well with some LDMOS transistors characterized in radiation up to 25V, this can be very useful for Power Management application.

In addition, the Physical Design Kit (PDK) enables customers to develop their own analog blocks and use the Microchip Space Multi-Project Wafer (SMPW) services.

Quality assurance grades
ATMX150RHA ASICs are available in several quality assurance grades, such as Mil-Prf 38535 QML-Q and QML-V - SMD:5962-20B01 - and ESCC 9000 - ESCC DS:9202/083.

Additional Features
  • Mixed-signal Technology
    • Up to 22 usable Mgates (equivalent NAND2)
    • Comprehensive library of standard logic & I/O cells
    • Memory cells compiled (ROM, SRAM, DPRAM, and Register File Memory)
    • 450 MHz PLL (PLL400MRHA)
    • Operating voltage 1.8±0.15V for the core and 5±0.5V,3.3±0.3V, 2.5±0.2V for the periphery
    • High voltage possibilities (LDMOS transistors up to 25V characterized)
    • High-speed LVDS buffers 655 Mbps in compliance with the TIA/EIA-644-A standard
  • Analog and Digital IP blocks
    • PLL400MRHA - 40-450 MHz PLL
    • ADC12RHA - ADC 12-bit 1 Msps
    • DAC12RHA - DAC 12-bit 1 Msps
    • MUX8RHA - 8-channel analog multiplexer, bandwidth 10 MHz
    • OSCRC10MRHA - Programmable 4/8/10/12 MHZ RC oscillator, ±1% frequency variation over temperature
    • OSCRC32KRHA - 32 kHz RC oscillator
    • BG1V2RHA - 1.215V Bandgap voltage reference, max temp. coef 90 ppm/°C
    • REG200RHA - Linear voltage regulator from 3-5.5V to 1.8V, 200 mA
    • POR18RHA - Power On Reset 1.8V
  • Radiation Performances
    • No single event latch-up below LET threshold of 75 MeV/mg/cm² at 125°C;
    • TID test up to 300kRads (Si) for 1.8V and 3.3V devices, and 150kRads (Si) for 5V and HV I/O, according to Mil-Std 883 TM1019
  • Advanced Packaging

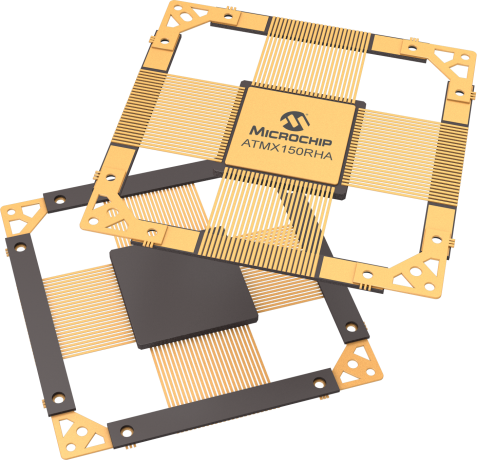

    • Advanced multi-layers low-noise CQFP and CCGA packages
    • Up to 352 leads CQFP packages
    • Up to 896 lands/columns CLGA/CCGA packages
    • Custom packages development (ceramic / plastic)

Documents

Jump to:

Application Notes

Brochures

Quality-Reliability-ISOs


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT150R216FSBKU
0.000000
0.000000
100
CQFP
19.05x19.05x2.47mm
NiAu
e4
AT150R216FSBKU-MQ
0.000000
0.000000
100
CQFP
19.05x19.05x2.47mm
NiAu
e4
AT150R289FSP3K-E
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
ATMX150RHA-BP-FSP
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FSP3X-SV
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FSP3X-E
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R644DIDPMA-GRC
0.000000
0.000000
256
CQFP
36x36x4.03mm
NiAu
e4
AT150R644DIDPMA-SV
0.000000
0.000000
256
CQFP
36x36x4.03mm
NiAu
e4
AT150R644DIDPMA-E
0.000000
0.000000
256
CQFP
36x36x4.03mm
NiAu
e4
002OP-DQB-SV
0.000000
0.000000
352
CQFP
48x48x4.03
NiAu
e4
ATMX150RHA-DIES-GFB
0.000000
0.000000
0
WAFER
Varies
-
-
AT150R289FSW3X-SV
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FSW3K-E
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FSW3K-EC
0.000000
0.000000
625
CLGA
29x29x4.03
NiAu
e4
AT150R289FSW3K-ECR
0.000000
0.000000
625
CLGA
29x29x4.03
NiAu
e4
AT150R289FTA3X-SV
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
ATMX150RHA-DIES-IDQ
0.000000
0.000000
0
WAFER
Varies
-
-
ATMX150RHA-DIES-IDR
0.000000
0.000000
0
WAFER
Varies
-
-
ATMX150RHA-DIES-IDS
0.000000
0.000000
0
WAFER
Varies
-
-
AT150R704DTG2DMB-E
0.000000
0.000000
896
CLGA
31x31x6.25
NiAu
e4
AT150R704DTG2DMB-SCC
0.000000
0.000000
896
CLGA
31x31x6.25
NiAu
e4
AT150R704DTG2DLB-GRC
0.000000
0.000000
896
CLGA
31x31x6.25
NiAu
e4
AT150R289FTA3X-SCC
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R112FSU000-DIES
0.000000
0.000000
0
WAFER
Varies
-
-
ATMX150RHA-DIES-FTC
0.000000
0.000000
0
WAFER
Varies
-
-
AT150R324FSSDFB-E
0.000000
0.000000
256
CQFP
36x36x4.03mm
NiAu
e4
AT150R324FSSDFB-SV
0.000000
0.000000
256
CQFP
36x36x4.03mm
NiAu
e4
AT150R324FSSDFB-GRC
0.000000
0.000000
256
CQFP
36x36x4.03mm
NiAu
e4
AT150R216FSYXAB-E
0.000000
0.000000
132
CQFP
24.13x24.13x3.38mm
NiAu
e4
AT150R216FSYXAB-SV
0.000000
0.000000
132
CQFP
24.13x24.13x3.38mm
NiAu
e4
AT150R216FSYXAB-MQ
0.000000
0.000000
132
CQFP
24.13x24.13x3.38mm
NiAu
e4
AT150R216FSYXAB-GRC
0.000000
0.000000
132
CQFP
24.13x24.13x3.38mm
NiAu
e4
ATMX150RHA-DIES-FTF
0.000000
0.000000
0
WAFER
Varies
-
-
ATMX150RHA-DIES-FTG
0.000000
0.000000
0
WAFER
Varies
-
-
ATMX150RHA-DIES-FTH
0.000000
0.000000
0
WAFER
Varies
-
-
9202083117TG2
0.000000
0.000000
896
CLGA
31x31x6.25
NiAu
e4
AT150R289FTD3X-SCC
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FTD3X-GRC
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FTD3X-SV
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FTD3K-E-NM
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FTD3K-EB
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FTD3K-E
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
AT150R289FTD3X-GRD
0.000000
0.000000
625
CLGA
29x29x3.8mm
NiAu
e4
ATADC24-CC-ENG
10.26000
0.000000
40
CERDIP
.600In
NiAu
e4
ATDAC24-CC-ENG
10.26000
0.000000
40
CERDIP
.600In
NiAu
e4
AT150R544DFSH2X-E
0.000000
0.000000
625
CLGA
29x29x2.96mm
NiAu
e4
AT150R544DFSH2X-SV
0.000000
0.000000
625
CLGA
29x29x2.96mm
NiAu
e4
AT150R544DFSH2X-GRC
0.000000
0.000000
625
CLGA
29x29x2.96mm
NiAu
e4
AT150R544DFSX2X-E
0.000000
0.000000
625
CLGA
29x29x2.96mm
NiAu
e4
AT150R544DFSX2X-SV
0.000000
0.000000
625
CLGA
29x29x2.96mm
NiAu
e4
AT150R544DFSX2X-GRC
0.000000
0.000000
625
CLGA
29x29x2.96mm
NiAu
e4
AT150R404FSJYF-SV
0.000000
0.000000
352
CQFP
48x48x3.06mm
NiAu
e4
AT150R404FSJYF-E
0.000000
0.000000
352
CQFP
48x48x3.06mm
NiAu
e4
AT150R404FSJYF-GRC
0.000000
0.000000
352
CQFP
48x48x3.06mm
NiAu
e4
002PA-8CB-E
0.000000
0.000000
352
CQFP
48x48x3.2mm
NiAu
e4
002PF-7KB-E
0.000000
0.000000
256
CQFP
37.1x37.1x2.75mm
NiAu
e4
002PF-7KB-SV
0.000000
0.000000
256
CQFP
37.1x37.1x2.75mm
NiAu
e4
5962-06B0204VUCFSK
0.000000
0.000000
352
CQFP
48x48x3.2mm
NiAu
e4
GRC-06B0204VUCFSK
0.000000
0.000000
352
CQFP
48x48x3.2mm
NiAu
e4
ADC-002PW-A
0.000000
0.000000
64
CQFP
22.86x22.86x3.5mm
NiAu
e4
SET-002PA-B
0.000000
0.000000
352
CQFP
48x48x3.2mm
NiAu
e4
ATV-002PF-C
0.000000
0.000000
256
CQFP
37.1x37.1x2.75mm
NiAu
e4
SEC-002OP-C
0.000000
0.000000
352
CQFP
48x48x3.2mm
NiAu
e4
SEC-002OP-E
0.000000
0.000000
352
CQFP
48x48x3.2mm
NiAu
e4
DAC-002PV-A
0.000000
0.000000
64
CQFP
22.86x22.86x3.5mm
NiAu
e4
ATV-002PF-CP
0.000000
0.000000
256
CQFP
37.1x37.1x2.75mm
NiAu
e4
ADC-002PW-AP
0.000000
0.000000
64
CQFP
22.86x22.86x3.5mm
NiAu
e4
AT150504BKDFSQ-E
0.234200
0.000000
196
TFBGA
11x11x1.2mm
LF35
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
