dsPIC33EP "GS" Family for Digital Power Applications

Higher Performance Enables More Sophisticated Algorithms

The dsPIC33EP "GS" family delivers the performance needed to implement more sophisticated non-linear, predictive and adaptive control algorithms at higher switching frequencies. These advanced algorithms enable power supply designs that are more energy efficient and have better power supply specifications. Higher switching frequencies enable the development of physically smaller power supplies that offer higher densities and lower costs. Compared with the previous generation of DSCs, the new dsPIC33EP "GS" devices provide less than half the latency, when used in a three-pole three-zero compensator, and consume up to 80% less power in any application.


More Integration Saves Cost and Board Space

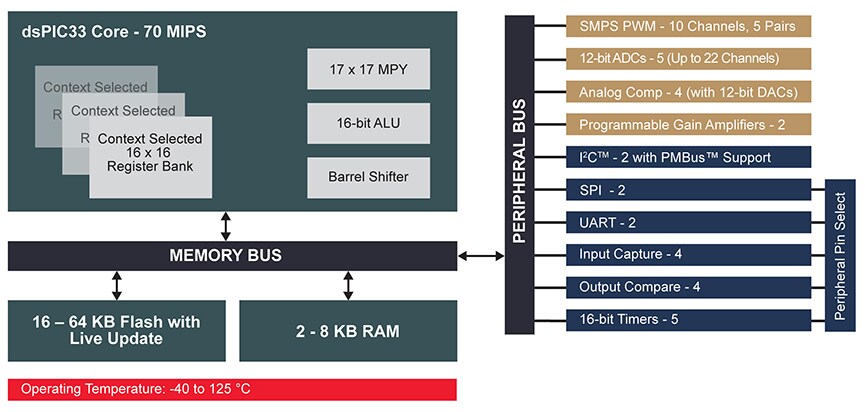

Other key features of this family include up to five 12-bit ADCs with as many as 22 ADC inputs, providing total throughput of 16 Mega samples per second (Msps) with a 300 ns ADC latency. The dsPIC33EP "GS" devices include 12-bit DACs for each of the four analog comparators, for higher-precision designs. The two on-chip programmable gain amplifiers can be used for current sensing and other precision measurements. Including these advanced analog amplifiers on the device reduces the number of external components required, thereby saving cost and board space.

Small Footprints

Variants from this new digital-power-optimized DSC family are available in an industry's-smallest, 4 x 4 mm UQFN package for space-constrained designs. Products in this family range from 28 to 64 pin options and 16 to 64KB Flash.

Live Update

This new dsPIC33EP "GS" family includes advanced features such as Live Update Flash capability, which is especially helpful for high-availability or "always-on" systems. Live Update can be used to change the firmware of an operating power supply, including the active compensator calculation code, while maintaining continuous regulation.

Easier Digital Power Conversion Designs

The dsPIC33EP "GS" family is supported by the Digital Power Starter Kit (part # DM330017-2, $129.99), as well as several helpful software tools. Microchip's new Digital Compensator Design Tool helps engineers calculate the optimum compensator coefficients required to maximize the performance of their designs.

This free tool, combined with Microchip's SMPS Control Software Library and many royalty-free dsPIC33 Reference Designs, make it easier than ever to design digital power-conversion applications. Microchip also partnered with Biricha Digital to offer in-depth digital power design workshops that help analog power supply designers, as well as embedded system programmers, leverage the capabilities of full digital control in their designs.

Key Atributes

  • Higher Performance
  • More Integration
  • Small Footprints
  • Live Update Capability
  • Easier Digital Power Designs

Related Links

Target Applications

  • AC/DC Power Supplies
  • Primary Side: Power Factor Correction
  • Secondary Side: Regulated DC/DC
  • DC/DC Power Supplies
  • 1/4 Brick and Other Small Form Factors
  • Automotive DC/DC Converters
  • LED & HID Lighting
  • Automotive Headlights
  • Projectors
  • Industrial & Commercial Lighting
  • Broad Range of Applications
  • Solar Inverters
  • Battery Chargers
  • Welders
  • Uninterruptible Power Supplies (UPS)
