Low-Voltage Buffers
1.2V, Ultra-Low Additive Jitter LVCMOS Buffers
Featured Products

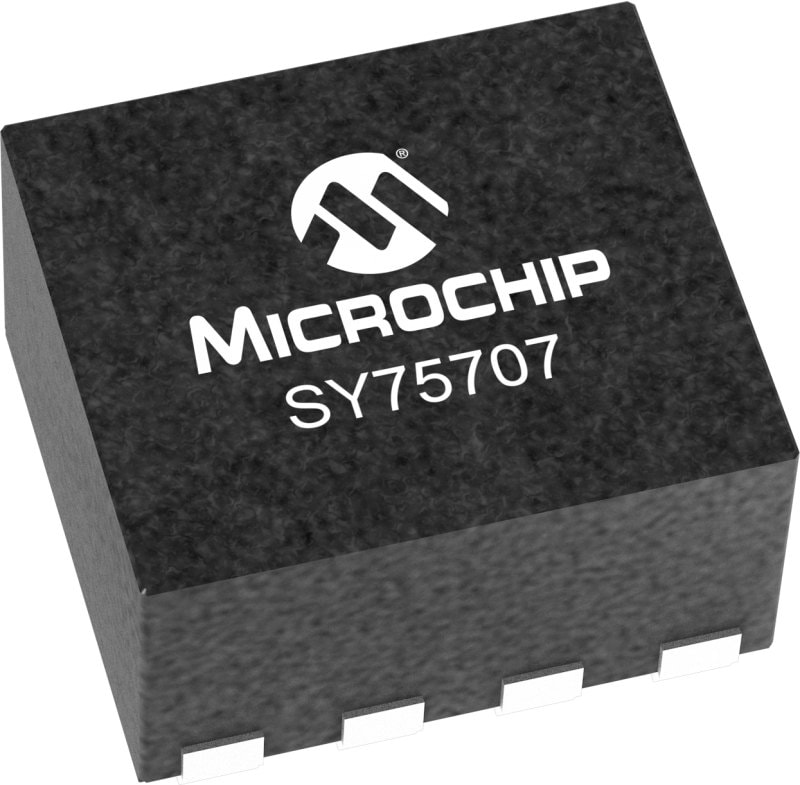

SY75707
Single Differential Input to Two LVCMOS Translators
- Ultra-low additive jitter, 32 fs
- 1.8V–3.3V VDDIN to 1.2V–1.8V VDDO power supply
- Available in ultra-small, 8-pin VDFN (1.4 mm × 1.6 mm) package

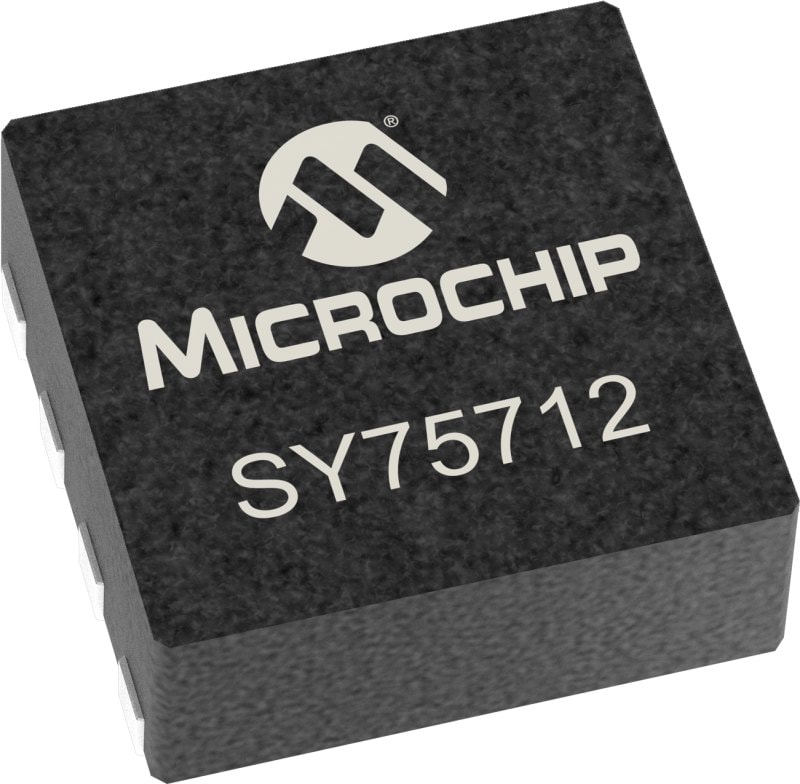

SY75712
2-Output, 1.2V to 1.8V LVCMOS Fanout Buffer
- Ultra-low additive jitter, 16.9 fs
- 1.2V–1.8V VDD power rail
- Available in ultra-small, 8-pin TDFN (2 mm × 2 mm) package
SY75714
4-Output, 1.2V to 1.8V LVCMOS Fanout Buffer
- Ultra-low additive jitter, 16.9 fs
- 1.2V–1.8V VDD power rail
- Available in ultra-small 8-pin TDFN (2 mm × 2 mm) package
Available Samples
SY75701/3/4/5
1-, 2-, 4- and 8-Output LVCMOS Buffers/Voltage Translators
- Ultra-low additive jitter, 16 fs
- 1.2V–3.3V VDDIN to 1.2V–1.8V VDDO power supply
- SY75701/3 available in ultra-small, 8-pin VDFN (1.4 mm × 1.6 mm) package
- SY75704/5 available in ultra-small, 16-pin VQFN (3 mm × 3 mm) package

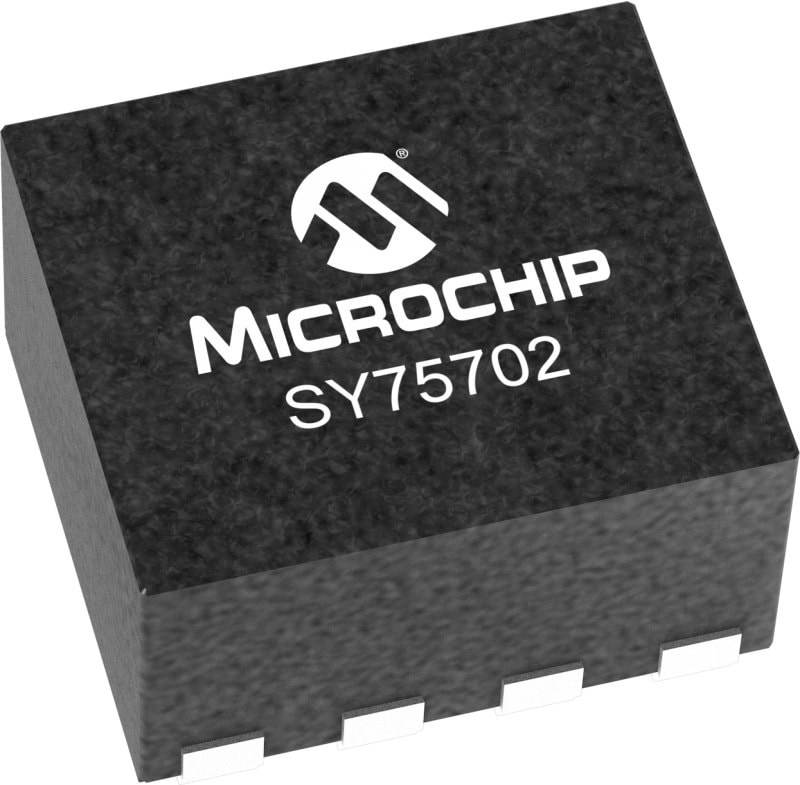

SY75702
Two-Channel LVCMOS Buffer/Voltage Translators
- Ultra-low additive jitter, 13 fs
- 1.2V–1.8V VDDIN and 1.2V–1.8V VDDO
- Available in ultra-small, 8-pin VDFN (1.4 mm x 1.6 mm) package

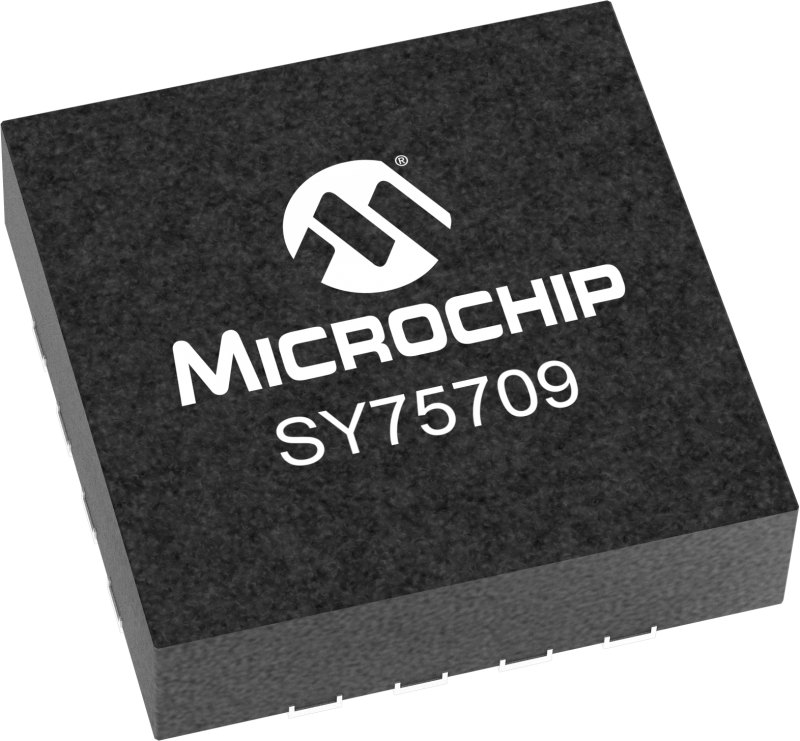

SY75706/8/9
Single Differential Input to 1.2V–1.8V LVCMOS Translators
- Ultra-low additive jitter, 32 fs
- 1.8V–3.3V VDDIN to 1.2V–1.8V VDDO power supply
- SY75706 available in ultra-small, 8-pin VDFN (1.4 mm × 1.6 mm) package
- SY75708/9 available in ultra-small, 16-pin VQFN (3 mm × 3 mm) package
Why Design With Our Low-Voltage Buffers?
Timing product designers know that success depends on creating intuitive products backed by reliable clock solutions. Confidence in your design is essential to delivering a successful end product.
We offer expertise in the following:
- Understanding phase noise, cycle‑to‑cycle jitter, period jitter and Time Interval Error (TIE)
- Measurement and debug skills
- PCB, digital design and interface protocols knowledge
These challenges can put your product at risk, leading to longer design cycles and higher development costs. Selecting the right buffer solution is critical to overcoming these obstacles. When you partner with a company that offers established, reliable products and direct access to expert support, you can design with confidence from start to finish.
Product Selection Resources
Treelink Product Navigation
This discovery tool provides an extensive overview of our products. Simply open the selection tool and click on the blocks for the product categories to navigate down to the details about individual products.
Cross Reference Tool
The Cross Reference Tool within ClockWorks® Configurator allows you to enter the name of a company or one of their part numbers to see a list of comparable Microchip products.
Need Help Choosing a Product for Your Design?
Our Client Support team is here to support you. Use the link below to schedule a call with a member of our team, use our live chat widget in the bottom right corner or submit a question for assistance and we will follow up with you as soon as possible.
