Part Number: MIKROE-2334

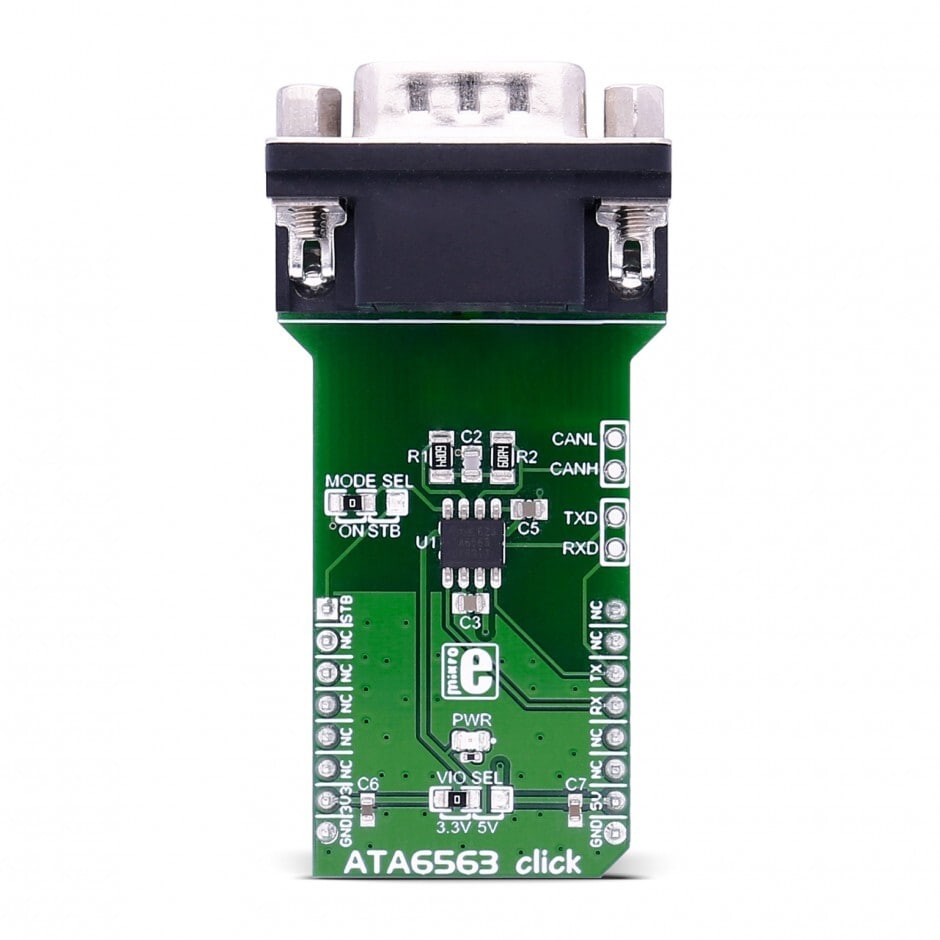

ATA6563 Click

Overview

ATA6563 Click is a compact add-on board that provides an interface between a controller area network (CAN) protocol and the physical two-wire CAN bus. This board features the ATA6563, a high-speed CAN transceiver with standby mode from Microchip. The transceiver is designed for high speeds of up to 5Mbps and provides differential transmit and receive capabilities to a CAN protocol controller. It has ideal passive behavior to the CAN bus when the supply voltage is off. This Click board™ makes the perfect solution for the development of classical CAN and CAN FD networks in automotive, industrial, aerospace, medical, and consumer applications. ATA6563 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Silicon Products

Product
Title
Product
Title
ATA6563 High-speed CAN FD Transceiver with Standby Mode and VIO Pin and WUP ATA6563 High-speed CAN FD Transceiver with Standby Mode and VIO Pin and WUP
