Microchip Technology Inc

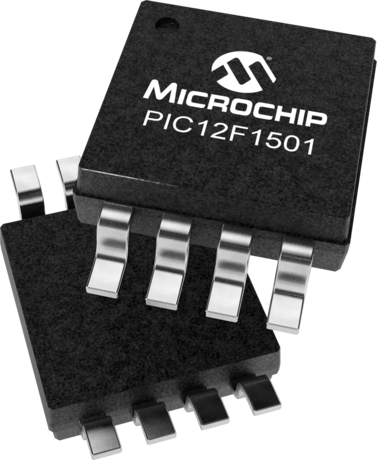

PIC12F1501

In Production

Debug Support
• External debug header (AC244051/AC244052) is needed for debug support
• Debug and Programming support is available via PICkit™ 3, and MPLAB® ICD 3




    Features

        • Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
        • Flash Program Memory with self read/write capability
        • High Endurance Flash Memory (HEF)
          • 128 B of Non-volatile Data Storage
        • Internal 16MHz oscillator
        • 4x Standalone PWM
        • Complementary Waveform Generator (CWG)
        • Numerically Controlled Oscillator (NCO)
        • 2x Configurable Logic Cell (CLC)
        • Integrated Temperature Indicator
        • 4 Channel 10-bit ADC with Voltage Reference
        • 5-bit Digital to Analog Converter (DAC)
        • 25mA Source/Sink current I/O
        • 2x 8-bit Timers (TMR0/TMR2)
        • 1x 16-bit Timer (TMR1)
        • Extended Watchdog Timer (WDT)
        • Enhanced Power-On/Off-Reset
        • Low-Power Brown-Out Reset (LPBOR)
        • Programmable Brown-Out Reset (BOR)
        • In Circuit Serial Programming (ICSP)
        • In-Circuit Debug using a Debug Header
        • Wide Operation Voltage Variant ‘F’ (2.3V – 5.5V)
        • eXtreme Low Power (XLP) ‘LF’ Variant (1.8V – 3.6V)
      Parameter Name
      Value
      Program Memory Type
      Flash
      Program Memory (KB)
      1.75
      CPU Speed (MIPS)
      5
      RAM Bytes
      64
      Capture/Compare/PWM Peripherals
      4PWM
      Timers
      2 x 8-bit, 1 x 16-bit
      ADC
      4 ch, 10-bit
      Comparators
      1
      Temperature Range (C)
      -40 to 125
      Operating Voltage Range (V)
      1.8 to 5.5
      Pin Count
      8
      Low Power
      Yes
      Cap Touch Channels
      4
      Documentation
      Data Sheets
      12/10/2015
      3022KB
        Errata




      Errata
      11/11/2013
      202KB
        Programming Specifications




      Programming Specification
      08/17/2011
      545KB
        Application Notes



      AppNote
      05/10/2013
      1234KB
      AppNote
      04/29/2014
      425KB
      AppNote
      02/11/2016
      585KB
      AppNote
      08/09/2013
      696KB
      AppNote
      07/30/2012
      1414KB
      AppNote
      07/25/2012
      1495KB
      AppNote
      12/05/2012
      572KB
      AppNote
      11/09/2012
      622KB
      AppNote
      12/11/2013
      270KB
        ApplicationNote Literature




      AppNoteLiterature
      08/06/2014
      10KB
      AppNoteLiterature
      04/30/2013
      18KB
        Sell Sheets



      Sell Sheets
      07/11/2011
      182KB
      Sell Sheets
      08/05/2013
      804KB
        Tips and Tricks



      Tips and Tricks
      10/01/2012
      2041KB
      Tips and Tricks
      09/14/2012
      405KB
        User Guides




      User Guides
      12/14/2012
      2082KB
      Pricing & Samples
      All pricing shown in USD only.
      Part Number
      Leads
      Package Type
      Temp Range
      Packing
      1+
      26+
      100+
      1000+
      5000+
      Buy
      Sample
      PIC12F1501-E/MC
      8
      DFN
      -40C to +125C
      TUBE
      0.82
      0.75
      0.68
      0.63
      0.60
      PIC12F1501-E/MF
      8
      DFN
      -40C to +125C
      TUBE
      0.82
      0.75
      0.68
      0.63
      0.60

      PIC12F1501-E/MS
      8
      MSOP
      -40C to +125C
      TUBE
      0.74
      0.68
      0.62
      0.57
      0.54
      PIC12F1501-E/P
      8
      PDIP
      -40C to +125C
      TUBE
      0.84
      0.77
      0.70
      0.64
      0.61
      PIC12F1501-E/SN
      8
      SOIC
      -40C to +125C
      TUBE
      0.74
      0.68
      0.62
      0.57
      0.54
      PIC12F1501-I/MC
      8
      DFN
      -40C to +85C
      TUBE
      0.75
      0.69
      0.62
      0.57
      0.55
      PIC12F1501-I/MF
      8
      DFN
      -40C to +85C
      TUBE
      0.75
      0.69
      0.62
      0.57
      0.55
      PIC12F1501-I/MS
      8
      MSOP
      -40C to +85C
      TUBE
      0.67
      0.62
      0.56
      0.52
      0.49
      PIC12F1501-I/P
      8
      PDIP
      -40C to +85C
      TUBE
      0.77
      0.71
      0.64
      0.59
      0.56
      PIC12F1501-I/SN
      8
      SOIC
      -40C to +85C
      TUBE
      0.67
      0.62
      0.56
      0.52
      0.49
      PIC12F1501T-E/MS
      8
      MSOP
      -40C to +125C
      T/R
      0.77
      0.71
      0.65
      0.60
      0.57

      PIC12F1501T-E/MU
      8
      UDFN
      -40C to +125C
      T/R
      0.65
      0.59
      0.54
      0.50
      0.47

      PIC12F1501T-E/SN
      8
      SOIC
      -40C to +125C
      T/R
      0.77
      0.71
      0.65
      0.60
      0.57

      PIC12F1501T-I/MC
      8
      DFN
      -40C to +85C
      T/R
      0.80
      0.73
      0.66
      0.61
      0.58

      PIC12F1501T-I/MF
      8
      DFN
      -40C to +85C
      T/R
      0.80
      0.73
      0.66
      0.61
      0.58

      PIC12F1501T-I/MS
      8
      MSOP
      -40C to +85C
      T/R
      0.72
      0.66
      0.60
      0.55
      0.52

      PIC12F1501T-I/MU
      8
      UDFN
      -40C to +85C
      T/R
      0.60
      0.54
      0.50
      0.45
      0.43
      PIC12F1501T-I/SN
      8
      SOIC
      -40C to +85C
      T/R
      0.72
      0.66
      0.60
      0.55
      0.52

      PIC12LF1501-E/MC
      8
      DFN
      -40C to +125C
      TUBE
      0.82
      0.75
      0.68
      0.63
      0.60
      PIC12LF1501-E/MF
      8
      DFN
      -40C to +125C
      TUBE
      0.82
      0.75
      0.68
      0.63
      0.60
      PIC12LF1501-E/MS
      8
      MSOP
      -40C to +125C
      TUBE
      0.74
      0.68
      0.62
      0.57
      0.54
      PIC12LF1501-E/P
      8
      PDIP
      -40C to +125C
      TUBE
      0.84
      0.77
      0.70
      0.64
      0.61
      PIC12LF1501-E/SN
      8
      SOIC
      -40C to +125C
      TUBE
      0.74
      0.68
      0.62
      0.57
      0.54
      PIC12LF1501-I/MC
      8
      DFN
      -40C to +85C
      TUBE
      0.75
      0.69
      0.62
      0.57
      0.55
      PIC12LF1501-I/MF
      8
      DFN
      -40C to +85C
      TUBE
      0.75
      0.69
      0.62
      0.57
      0.55
      PIC12LF1501-I/MS
      8
      MSOP
      -40C to +85C
      TUBE
      0.67
      0.62
      0.56
      0.52
      0.49
      PIC12LF1501-I/P
      8
      PDIP
      -40C to +85C
      TUBE
      0.77
      0.71
      0.64
      0.59
      0.56
      PIC12LF1501-I/SN
      8
      SOIC
      -40C to +85C
      TUBE
      0.67
      0.62
      0.56
      0.52
      0.49
      PIC12LF1501T-E/MU
      8
      UDFN
      -40C to +125C
      T/R
      0.65
      0.59
      0.54
      0.50
      0.47

      PIC12LF1501T-E/SN
      8
      SOIC
      -40C to +125C
      T/R
      0.74
      0.68
      0.62
      0.57
      0.54

      PIC12LF1501T-I/MC
      8
      DFN
      -40C to +85C
      T/R
      0.80
      0.73
      0.66
      0.61
      0.58

      PIC12LF1501T-I/MF
      8
      DFN
      -40C to +85C
      T/R
      0.80
      0.73
      0.66
      0.61
      0.58

      PIC12LF1501T-I/MS
      8
      MSOP
      -40C to +85C
      T/R
      0.72
      0.66
      0.60
      0.55
      0.52

      PIC12LF1501T-I/MU
      8
      UDFN
      -40C to +85C
      T/R
      0.60
      0.54
      0.50
      0.45
      0.43
      PIC12LF1501T-I/SN
      8
      SOIC
      -40C to +85C
      T/R
      0.72
      0.66
      0.60
      0.55
      0.52


      ** Device not available to purchase online. Please contact a sales office for pricing information.
      Open a microchipDIRECT account today!

      Development Tools
      • Demo & Eval Boards
      • Emulation & Debuggers
      • Programmers
      • Curiosity ( DM164137 )

        Curiosity

        Satisfy Your Curiosity
        Your next embedded design idea has a new home. Curiosity is a cost-effective, fully integrated 8-bit development platform targeted at first-time users, Makers, and those seeking a feature-rich rapid prototyping board. Designed from the ground-up to take full advantage of Microchip's MPLAB X development environment, Curiosity includes an integrated programmer/debugger,...

      • Explorer 8 Development Kit ( DM160228 )

        Explorer

        Summary
        The Explorer 8 Development Kit is a full-featured development board and platform for 8-bit PIC® microcontrollers. This kit is a versatile development solution, featuring several options for external sensors, off-board communication and human interface. Additionally, it offers ample room for expansion, making it an excellent solution for developers and engineers looking for a...

      • PICDEM Lab II Development Platform ( DM163046 )

        PICDEM

        Summary
        The PICDEM™ Lab II Development Board is a development and teaching platform for use with 8-bit PIC® microcontrollers (MCUs). At its center, a large prototyping breadboard enables users to easily "experiment" with different values and configurations of analog components for system optimization. Several external connectors allow for user-customizable expansion, while our...

      • MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

        MPLAB

        The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs). This speed is provided by a 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield faster communications, downloads and debugging. It...

      • PICkit 3 In-Circuit Debugger ( PG164130 )

        PICkit

        Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit debugging offers these benefits:

        • Low cost
        • Minimum of additional hardware needed for debug
        • Expensive sockets or adapters are not required...

      • MPLAB ICD 3 In-Circuit Debugger ( DV164035 )

        MPLAB

        MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller (MCU) devices. It debugs and programs PIC® Flash microcontrollers and dsPIC® DSCs with the powerful, yet easy-to-use graphical user interface of MPLAB Integrated Development Environment (IDE).

      • MPLAB REAL ICE PROBE KIT ( DV244005 )

        MPLAB

        MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for Microchip Flash DSC® and MCU devices. It debugs and programs PIC® and dsPIC® Flash microcontrollers with the easy-to-use but powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.
        The MPLAB REAL ICE probe is connected...

      • MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

        MPLAB

        The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs). This speed is provided by a 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield faster communications, downloads and debugging. It...

      • PICkit 3 In-Circuit Debugger ( PG164130 )

        PICkit

        Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit debugging offers these benefits:

        • Low cost
        • Minimum of additional hardware needed for debug
        • Expensive sockets or adapters are not required...

      • MPLAB PM3 Universal Device Programmer ( DV007004 )

        MPLAB

        The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

        • Socket: AC164301   PartNo: PIC12F1501 (8P)
        • Socket: AC164302   PartNo: PIC12F1501 (8SN)
        • Socket: AC164325   PartNo: PIC12F1501 (8MS)
        • Socket: AC164334   PartNo: PIC12F1501 (8MC)
        • Socket: AC164340   PartNo: PIC12F1501 (8MF)
      • MPLAB ICD 3 In-Circuit Debugger ( DV164035 )

        MPLAB

        MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller (MCU) devices. It debugs and programs PIC® Flash microcontrollers and dsPIC® DSCs with the powerful, yet easy-to-use graphical user interface of MPLAB Integrated Development Environment (IDE).

      • MPLAB REAL ICE PROBE KIT ( DV244005 )

        MPLAB

        MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for Microchip Flash DSC® and MCU devices. It debugs and programs PIC® and dsPIC® Flash microcontrollers with the easy-to-use but powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.
        The MPLAB REAL ICE probe is connected...

      Similar Devices
      Product
      Pins
      Flash
      RAM
      Price5K
      Notes
      8
      1.75
      64
      $0.43

      14
      3.5
      128
      $0.54

      20
      3.5
      128
      $0.68

      20
      7
      256
      $0.76

      20
      14
      512
      $0.80

      RoHS Information
      Part
      Number
      Device
      Weight
      Shipping
      Weight
      Lead
      Count
      Package
      Type
      Package
      Width
      Solder
      Composition
      JEDEC
      Indicator
      RoHS

      China
      EFUP
      PIC12F1501-E/P
      0.486700
      0.900000
      8
      PDIP
      .300in
      Matte Tin
      e3
      PIC12F1501-I/P
      0.486700
      0.900000
      8
      PDIP
      .300in
      Matte Tin
      e3
      PIC12F1501T-E/SN
      0.078000
      0.230303
      8
      SOIC
      .150In(3.90mm)
      Matte Tin
      e3
      PIC12F1501T-E/SNVAO
      0.078000
      0.230303
      8
      SOIC
      .150In(3.90mm)
      Matte Tin
      e3
      PIC12F1501-I/SN
      0.078000
      0.160000
      8
      SOIC
      .150In(3.90mm)
      Matte Tin
      e3
      PIC12F1501-E/SN
      0.078000
      0.160000
      8
      SOIC
      .150In(3.90mm)
      Matte Tin
      e3
      PIC12F1501T-I/SN
      0.078000
      0.230303
      8
      SOIC
      .150In(3.90mm)
      Matte Tin
      e3
      PIC12F1501-I/SNVAO
      0.078000
      0.160000
      8
      SOIC
      .150In(3.90mm)
      Matte Tin
      e3
      PIC12F1501-E/SNVAO
      0.078000
      0.160000
      8
      SOIC
      .150In(3.90mm)
      Matte Tin
      e3
      PIC12F1501T-I/SNVAO
      0.078000
      0.230303
      8
      SOIC
      .150In(3.90mm)
      Matte Tin
      e3
      PIC12F1501-E/MS
      0.025600
      0.070000
      8
      MSOP
      3x3mm
      Matte Tin
      e3
      PIC12F1501-I/MS
      0.025600
      0.070000
      8
      MSOP
      3x3mm
      Matte Tin
      e3
      PIC12F1501T-I/MS
      0.025600
      0.215600
      8
      MSOP
      3x3mm
      Matte Tin
      e3
      PIC12F1501T-H/MSVAO
      0.025600
      0.215600
      8
      MSOP
      3x3mm
      Matte Tin
      e3
      PIC12F1501-H/MSVAO
      0.025600
      0.070000
      8
      MSOP
      3x3mm
      Matte Tin
      e3
      PIC12F1501-I/MSVAO
      0.025600
      0.070000
      8
      MSOP
      3x3mm
      Matte Tin
      e3
      PIC12F1501T-I/MSVAO
      0.025600
      0.215600
      8
      MSOP
      3x3mm
      Matte Tin
      e3
      PIC12F1501T-E/MS
      0.025600
      0.215600
      8
      MSOP
      3x3mm
      Matte Tin
      e3
      PIC12F1501-E/MF
      0.023800
      0.041667
      8
      DFN
      3x3x0.9mm
      Matte Tin
      e3
      PIC12F1501-I/MF
      0.023800
      0.041667
      8
      DFN
      3x3x0.9mm
      Matte Tin
      e3
      PIC12F1501T-I/MF
      0.023800
      0.172727
      8
      DFN
      3x3x0.9mm
      Matte Tin
      e3
      PIC12F1501T-E/MF
      0.023800
      0.172727
      8
      DFN
      3x3x0.9mm
      Matte Tin
      e3
      PIC12F1501T-E/MC
      0.015600
      0.130606
      8
      DFN
      2x3x0.9mm
      Matte Tin
      e3
      PIC12F1501-E/MC
      0.015600
      0.033333
      8
      DFN
      2x3x0.9mm
      Matte Tin
      e3
      PIC12F1501T-I/MC
      0.015600
      0.130606
      8
      DFN
      2x3x0.9mm
      Matte Tin
      e3
      PIC12F1501-I/MC
      0.015600
      0.033333
      8
      DFN
      2x3x0.9mm
      Matte Tin
      e3
      PIC12F1501T-E/MU
      0.009300
      0.139394
      8
      UDFN
      2x3x0.5mm
      Matte Tin
      e3
      PIC12F1501T-I/MU
      0.009300
      0.139394
      8
      UDFN
      2x3x0.5mm
      Matte Tin
      e3
      PIC12F1501T-I/MUVAO
      0.009300
      0.139394
      8
      UDFN
      2x3x0.5mm
      Matte Tin
      e3
      To see a complete listing of RoHS data for this device, please Click here
      Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
