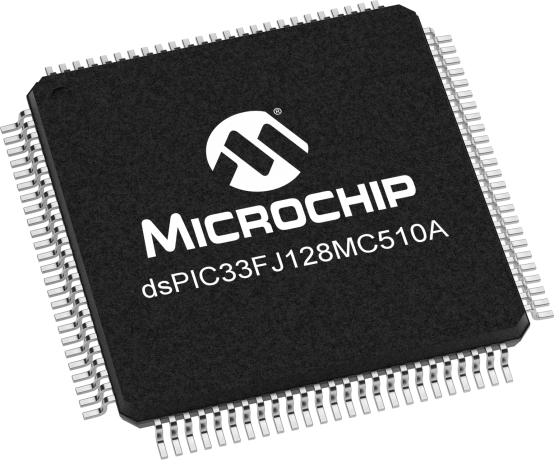

product primary image

dsPIC33FJ128MC510A

Status: In Production

Features:

  • DC – 40 MIPS (40 MIPS @ 3.0-3.6V, -40°C to +125°C)
  • Industrial temperature range (-40°C to +85°C)
  • Extended temperature range (-40°C to +125°C)
  • Modified Harvard architecture
  • C compiler optimized instruction set
  • 16-bit wide data path
  • 24-bit wide instructions
  • Linear program memory addressing up to 4M instruction words
  • Linear data memory addressing up to 64 Kbytes
  • 83 base instructions: mostly 1 word/1 cycle
  • Sixteen 16-bit General Purpose Registers
  • With rounding and saturation options
  • Indirect, Modulo and Bit-Reversed
  • Software stack
  • 16 x 16 fractional/integer multiply operations
  • 32/16 and 16/16 divide operations
  • Accumulator write back for DSP operations
  • Dual data fetch
  • Up to ±16-bit shifts for up to 40-bit data
  • 8-channel hardware DMA
  • Allows data transfer between RAM and a peripheral while CPU is executing code (no cycle stealing)
  • Most peripherals support DMA
  • 5-cycle latency
  • 118 interrupt vectors
  • Up to 67 available interrupt sources
  • Up to 5 external interrupts
  • 7 programmable priority levels
  • 5 processor exceptions
  • Wake-up/Interrupt-on-Change on up to 24 pins
  • Output pins can drive from 3.0V to 3.6V
  • All digital input pins are 5V tolerant
  • 4 mA sink on all I/O pins
  • External, crystal, resonator, internal RC
  • Fully integrated PLL
  • Extremely low jitter PLL
  • On-chip 2.5V voltage regulator
  • Switch between clock sources in real time
  • Idle, Sleep and Doze modes with fast wake-up
  • Can pair up to make four 32-bit timers
  • 1 timer runs as Real-Time Clock with external 32.768 kHz oscillator
  • Programmable prescaler
  • Capture on up, down or both edges
  • 16-bit capture input functions
  • 4-deep FIFO on each capture
  • Single or Dual 16-Bit Compare mode
  • 16-bit Glitchless PWM mode
  • Framing supports I/O interface to simple codecs
  • Supports 8-bit and 16-bit data
  • Supports all serial clock formats and sampling modes
  • Full Multi-Master Slave mode support
  • 7-bit and 10-bit addressing
  • Bus collision detection and arbitration
  • Integrated signal conditioning
  • Slave address masking
  • Interrupt on address bit detect
  • Interrupt on UART error
  • Wake-up on Start bit from Sleep mode
  • 4-character TX and RX FIFO buffers
  • LIN bus support
  • IrDA® encoding and decoding in hardware
  • High-Speed Baud mode
  • Hardware Flow Control with CTS and RTS
  • Up to 8 transmit and up to 32 receive buffers
  • 16 receive filters and 3 masks
  • Loopback, Listen Only and Listen All Messages modes for diagnostics and bus monitoring
  • Wake-up on CAN message
  • Automatic processing of Remote Transmission Requests
  • FIFO mode using DMA
  • DeviceNet™ addressing support
  • 4 duty cycle generators
  • Independent or Complementary mode
  • Programmable dead time and output polarity
  • Edge or center-aligned
  • Manual output override control
  • Up to 2 Fault inputs
  • Trigger for ADC conversions
  • PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
  • PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
  • Phase A, Phase B and index pulse input
  • 16-bit up/down position counter
  • Count direction status
  • Position Measurement (x2 and x4) mode
  • Programmable digital noise filters on inputs
  • Alternate 16-bit Timer/C
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

dsPIC33F Motor Control Digital Signal Controller with seamless migration options to PIC24F, PIC24H MCUs and dsPIC30F DSC

Additional Features

    Operating Range:

    • DC – 40 MIPS (40 MIPS @ 3.0-3.6V, -40°C to +125°C)
    • Industrial temperature range (-40°C to +85°C)
    • Extended temperature range (-40°C to +125°C)

    High-Performance DSC CPU:

    • Modified Harvard architecture
    • C compiler optimized instruction set
    • 16-bit wide data path
    • 24-bit wide instructions
    • Linear program memory addressing up to 4M instruction words
    • Linear data memory addressing up to 64 Kbytes
    • 83 base instructions: mostly 1 word/1 cycle
    • Sixteen 16-bit General Purpose Registers
    • Two 40-bit accumulators:
      • With rounding and saturation options
    • Flexible and powerful addressing modes:
      • Indirect, Modulo and Bit-Reversed
    • Software stack
    • 16 x 16 fractional/integer multiply operations
    • 32/16 and 16/16 divide operations
    • Single-cycle multiply and accumulate:
      • Accumulator write back for DSP operations
      • Dual data fetch
    • Up to ±16-bit shifts for up to 40-bit data

    Direct Memory Access (DMA):

    • 8-channel hardware DMA
    • 2 Kbytes dual ported DMA buffer area (DMA RAM) to store data transferred via DMA:
      • Allows data transfer between RAM and a peripheral while CPU is executing code (no cycle stealing)
    • Most peripherals support DMA

    Interrupt Controller:

    • 5-cycle latency
    • 118 interrupt vectors
    • Up to 67 available interrupt sources
    • Up to 5 external interrupts
    • 7 programmable priority levels
    • 5 processor exceptions

    Digital I/O:

    • Wake-up/Interrupt-on-Change on up to 24 pins
    • Output pins can drive from 3.0V to 3.6V
    • All digital input pins are 5V tolerant
    • 4 mA sink on all I/O pins

    System Management:

    • Flexible clock options:
      • External, crystal, resonator, internal RC
      • Fully integrated PLL
      • Extremely low jitter PLL

    Power Management:

    • On-chip 2.5V voltage regulator
    • Switch between clock sources in real time
    • Idle, Sleep and Doze modes with fast wake-up

    Timers/Capture/Compare/PWM:

    • Timer/Counters, up to nine 16-bit timers:
      • Can pair up to make four 32-bit timers
      • 1 timer runs as Real-Time Clock with external 32.768 kHz oscillator
      • Programmable prescaler
    • Input Capture (up to 8 channels):
      • Capture on up, down or both edges
      • 16-bit capture input functions
      • 4-deep FIFO on each capture
    • Output Compare (up to 8 channels):
      • Single or Dual 16-Bit Compare mode
      • 16-bit Glitchless PWM mode

    Communication Modules:

    • 3-wire SPI (up to 2 modules):
      • Framing supports I/O interface to simple codecs
      • Supports 8-bit and 16-bit data
      • Supports all serial clock formats and sampling modes
    • I2C™ (up to 2 modules):
      • Full Multi-Master Slave mode support
      • 7-bit and 10-bit addressing
      • Bus collision detection and arbitration
      • Integrated signal conditioning
      • Slave address masking
    • UART (up to 2 modules):
      • Interrupt on address bit detect
      • Interrupt on UART error
      • Wake-up on Start bit from Sleep mode
      • 4-character TX and RX FIFO buffers
      • LIN bus support
      • IrDA® encoding and decoding in hardware
      • High-Speed Baud mode
      • Hardware Flow Control with CTS and RTS
    • Enhanced CAN (ECAN™ module) 2.0B active (up to 2 modules):
      • Up to 8 transmit and up to 32 receive buffers
      • 16 receive filters and 3 masks
      • Loopback, Listen Only and Listen All Messages modes for diagnostics and bus monitoring
      • Wake-up on CAN message
      • Automatic processing of Remote Transmission Requests
      • FIFO mode using DMA
      • DeviceNet™ addressing support

    Motor Control Peripherals:

    • Motor Control PWM (up to 8 channels):
      • 4 duty cycle generators
      • Independent or Complementary mode
      • Programmable dead time and output polarity
      • Edge or center-aligned
      • Manual output override control
      • Up to 2 Fault inputs
      • Trigger for ADC conversions
      • PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
      • PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
    • Quadrature Encoder Interface module:
      • Phase A, Phase B and index pulse input
      • 16-bit up/down position counter
      • Count direction status
      • Position Measurement (x2 and x4) mode
      • Programmable digital noise filters on inputs
      • Alternate 16-bit Timer/C
Parametrics
Name
Value
Architecture
16-bit
CPU Speed (MIPS/DMIPS)
40
Program Memory Type
Flash
Program Memory Size (KB)
128
SRAM (KB)
8
Temperature Range C
-40 to 125
Operating Voltage Range (V)
3 to 3.6
Max I/O Pins
85
Pin Count
100
System Management Features
BOR
Power on Reset
Yes
Watch Dog Timer
Yes
Internal Oscillator
7.37 MHz, 32.768 kHz
Digital Communication Peripherals
2-UART
2-SPI
2-I2C
0-MSSP(SPI/I2C)
Analog Peripherals
1-A/D 24x12-bit @ 1100(ksps)
CAN (#, type)
1 CAN
Capture/Compare/PWM Peripherals
8/8
PWM Max Resolution (Bits)
16
Motor Control PWM Outputs
8
Quadrature Encoder Interface
1
Timers
9 x 16-bit 4 x 32-bit
Parallel Port
GPIO
Direct Memory Access Channels
8
