MCP1826S

In Production

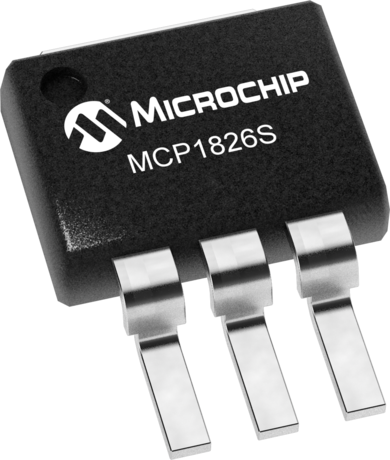

The MCP1826S is a 1A, ceramic output cap stable, low output voltage, Low Dropout Regulator (LDO). It is part of the family of LDOs that includes 500 mA MCP1825S and 1.5A MCP1827S. The MCP1826S comes in thermally enhanced DDPAK-3 and TO-220-3 packages as well as space-efficient SOT223-3 package.



    Features

        • Up to 1A output load current
        • Low dropout voltage 300 mV (typ)
        • Output voltage from 0.8V to 5.0V
        • Stable with 1.0 µF ceramic output cap
        • Power good output
        • Low supply current 120 µA (typ)
        • DDPAK-3, TO-220-3, SOT223-3 Pb-free packages
    Parameter Name
    Value
    Product Type
    Single LDOs
    # of Out
    1
    IOUT #1
    IOUT #2
    IOUT #3
    IOUT #4
    IOUT (mA)
    1000
    VIN Min (V)
    2.3
    VIN Max (V)
    6
    VOUT (V)
    0.8 1.2 1.8 2.5 3.0 3.3 5.0
    Voltage Drop Typ (mV)
    225
    IGND Typ (µA)
    120
    Tol Typ %
    ±0.5
    PSRR 1 kHz (dB)
    60
    Soft Start Pin
    Load Dump
    Rev Bat
    Reverse Current Protect
    Documentation
    Data Sheets
    02/01/2013
    826KB
