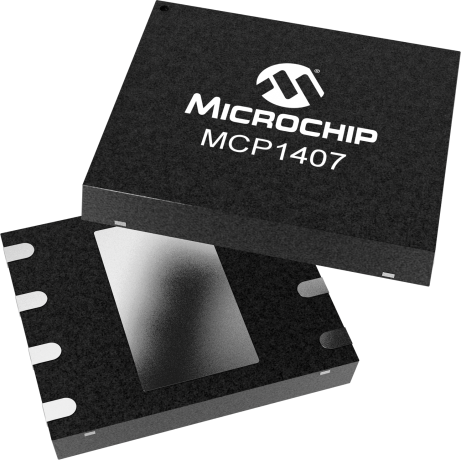

MCP1407

In Production

The MCP1406/07 devices are a family of buffers/MOSFET drivers that feature a single-output with 6A peak drive current capability, low shoot-through current, matched rise/fall times and propagation delay times. These devices are pin-compatible and are improved versions of the TC4420/TC4429 MOSFET drivers. The MCP1406/07 MOSFET drivers can easily charge and discharge 2500 pF gate capacitance in under 20 ns, provide low enough impedances (in both the ON and OFF states) to ensure that intended state of the MOSFETs will not be affected, even by large transients. The input to the MCP1406/07 may be driven directly from either TTL or CMOS (3V to 18V). These devices are highly latch-up resistant under any conditions that fall within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin. All terminals are fully protected against electrostatic discharge (ESD), up to 2.0 kV (HBM) and 400V (MM). The MCP1406/07 single-output 6A MOSFET driver family is offered in both surface-mount and pin-through-hole packages with a -40°C to +125°C temperature rating, making it useful in any wide temperature range application.



    Features

        • Low Shoot-Through/Cross-Conduction Current in Output Stage
        • Wide Input Voltage Supply Voltage Operating Range
          • 4.5V to 18V
        • Matched Rise/Fall Times
        • Pin compatible with TC4420/TC4429 devices
    Parameter Name
    Value
    MOSFET Driver Type
    Low Side
    Driver Type
    Single
    Configuration
    Non-inverting
    Peak Output Current (source/sink, A)
    6.0/6.0
    Output Resistance (source/sink, Ω)
    2.1/1.5
    Maximum Supply Voltage (V)
    18
    Propagation Delay (Td1/Td2, ns)
    40/40
    Rise/Fall Time (Tr/Tf, ns)
    20/20
    Capacitive Load Drive
    2500 pF in 20 ns
    Documentation
    Data Sheets
    04/25/2016
    943KB
      Application Notes



    AppNote
    10/22/2009
    136KB
    AppNote
    11/12/2002
    202KB
    AppNote
    11/14/2002
    284KB
    AppNote
    08/03/2004
    182KB
    AppNote
    12/31/2003
    512KB
      Product Selection Tools




    Product Line Card
    09/16/2014
    7598KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    MCP1407-E/AT
    5
    TO-220
    -40C to +125C
    TUBE
    1.63
    1.36
    1.24
    1.19
    1.18
    MCP1407-E/MF
    8
    DFN-S
    -40C to +125C
    TUBE
    1.06
    0.88
    0.80
    0.77
    0.76
    MCP1407-E/P
    8
    PDIP
    -40C to +125C
    TUBE
    0.98
    0.82
    0.74
    0.72
    0.71
    MCP1407-E/SN
    8
    SOIC
    -40C to +125C
    TUBE
    0.96
    0.80
    0.73
    0.70
    0.70
    MCP1407T-E/MF
    8
    DFN-S
    -40C to +125C
    T/R
    1.06
    0.88
    0.80
    0.77
    0.76

    MCP1407T-E/SN
    8
    SOIC
    -40C to +125C
    T/R
    0.96
    0.80
    0.73
    0.70
    0.70


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • 8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

      8-Pin

      This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...
