Microchip Technology Inc

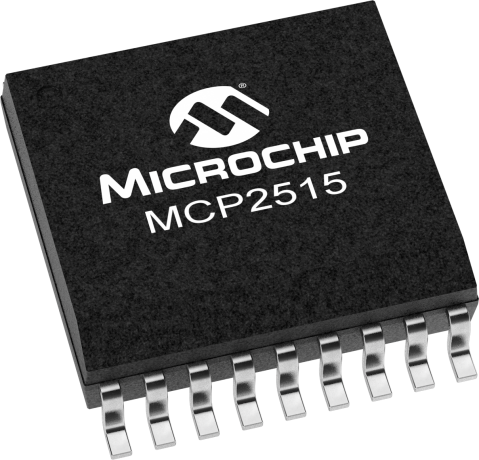

MCP2515

In Production

The MCP2515 is a second generation stand-alone CAN controller. It is pin and function compatible with the MCP2510 and also includes upgraded features like faster throughput, databyte filtering, and support for time-triggered protocols.



    Features

      • 18-pin package
      • Simple SPI interface to any MCU
      • One-shot mode ensures message transmission is attempted only once
      • Databyte filtering
      • Start-of-Frame (SOF) output
      • Low-power CMOS Technology
    Parameter Name
    Value
    Version Supported
    2.0B Active
    Tx Buffers
    3
    Rx Buffers
    2
    Masks
    2
    Interrupt Output
    1
    Filters
    6
    Temp. Range (°C)
    -40 to +125
    Operating Voltage Range (V)
    2.7 to 5.5
    Documentation
    Data Sheets
    12/08/2016
    1011KB
      Errata




    Errata
    04/02/2007
    387KB
      Application Notes



    AppNote
    11/04/2010
    418KB
    AppNote
    11/08/2010
    171KB
    AppNote
    09/16/2005
    141KB
    AppNote
    03/21/2001
    220KB
    AppNote
    09/16/2005
    248KB
    AppNote
    09/02/2003
    207KB
    AppNote
    09/02/2003
    378KB
      Brochures



    Brochures
    10/11/2005
    1067KB
    Brochures
    09/16/2014
    7598KB
    Brochures
    04/29/2014
    8386KB
    Brochures
    10/15/2014
    11223KB
      aspxDesignNotes




    Design Notes
    11/17/2003
    151KB
      Product Selection Tools




    Product Line Card
    06/08/2017
    4167KB
      User Guides



    User Guides
    02/24/2004
    437KB
    User Guides
    02/24/2004
    16KB
    User Guides
    07/23/2009
    584KB
    User Guides
    08/12/2005
    434KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    MCP2515-E/ML
    20
    QFN
    -40C to +125C
    TUBE
    2.17
    1.81
    1.65
    1.59
    1.57

    MCP2515-E/P
    18
    PDIP
    -40C to +125C
    TUBE
    2.08
    1.73
    1.58
    1.52
    1.51
    For sample purposes the industrial temperature device will offer similar performance to the extended temperature device. Please select the industrial temperature device.
    MCP2515-E/SO
    18
    SOIC
    -40C to +125C
    TUBE
    2.08
    1.73
    1.58
    1.52
    1.51
    For sample purposes the industrial temperature device will offer similar performance to the extended temperature device. Please select the industrial temperature device.
    MCP2515-E/ST
    20
    TSSOP
    -40C to +125C
    TUBE
    2.28
    1.90
    1.73
    1.67
    1.65
    For sample purposes the industrial temperature device will offer similar performance to the extended temperature device. Please select the industrial temperature device.
    MCP2515-I/ML
    20
    QFN
    -40C to +85C
    TUBE
    1.89
    1.58
    1.44
    1.39
    1.37

    MCP2515-I/P
    18
    PDIP
    -40C to +85C
    TUBE
    1.82
    1.51
    1.38
    1.33
    1.31
    MCP2515-I/SO
    18
    SOIC
    -40C to +85C
    TUBE
    1.82
    1.51
    1.38
    1.33
    1.31
    MCP2515-I/ST
    20
    TSSOP
    -40C to +85C
    TUBE
    1.99
    1.66
    1.51
    1.45
    1.44
    MCP2515T-E/ML
    20
    QFN
    -40C to +125C
    T/R
    2.17
    1.81
    1.65
    1.59
    1.57

    MCP2515T-E/SO
    18
    SOIC
    -40C to +125C
    T/R
    2.08
    1.73
    1.58
    1.52
    1.51
    MCP2515T-E/ST
    20
    TSSOP
    -40C to +125C
    T/R
    2.28
    1.90
    1.73
    1.67
    1.65
    MCP2515T-I/ML
    20
    QFN
    -40C to +85C
    T/R
    1.89
    1.58
    1.44
    1.39
    1.37

    MCP2515T-I/SO
    18
    SOIC
    -40C to +85C
    T/R
    1.82
    1.51
    1.38
    1.33
    1.31
    MCP2515T-I/ST
    20
    TSSOP
    -40C to +85C
    T/R
    1.99
    1.66
    1.51
    1.45
    1.44

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • CAN BUS Analyzer Tool ( APGDT002 )

      CAN

      The CAN BUS Analyzer Tool is a simple to use low cost CAN bus monitor which can be used to develop and debug a high speed CAN network. The tool supports CAN 2.0b and ISO11898-2 and a broad range of functions which allow it to be used across various market segments including automotive, industrial, medical and marine. The toolkit comes with all the hardware and software required to connect a CAN...

    • MCP2510/2515 CAN DEVELOPERS KIT ( DV251001 )

      MCP2510/2515

      To Speed up software development, and to enable introduction of CAN to those who are unfamiliar with the protocol, Microchip offers unique development tool that is a combination of a software development tool and a CAN message/communication tool called the MCP2510/2515 CAN Developer’s Kit

    • CAN Bus Monitor Demo Board ( MCP2515DM-BM )

      CAN

      Devices Supported: MCP2515, MCP2561

      The MCP2515 CAN Bus Monitor Demo Board kit contains two identical boards which can be connected together to create a simple two node Controller Area Network (CAN) bus, which can be controlled and/or monitored via the included PC interface. The board(s) can also be connected to an existing CAN bus.

      Using the PC interface, users can...

    • MCP2515 CAN Controller PICtail Demo Board ( MCP2515DM-PCTL )

      MCP2515

      The MCP2515 PICtail™ Demo Board implements a simple CAN bus using two nodes. One node uses the MCP2515 Stand Alone CAN controller and the other node uses the MCP25020 CAN I/O Expander. Each node utilizes one input (push button) and one output (LED).

      The boards demonstrate a simple, inexpensive implementation of a CAN bus. The MCP2515 node transmits its input (push button)...

    • MCP2515 PICTail Plus Daughter Board ( MCP2515DM-PTPLS )

      MCP2515

      The MCP2515 PICtail Plus Daughter Board is a simple Controller Area Network (CAN) board designed to be used with boards containing the PICtail Plus connector. The board also has the PICkit™ Serial connector for interfacing to the PICkit Serial Analyzer tool. The CAN node consists of the MCP2515 Stand-Alone CAN controller and MCP2551 CAN transceiver. The PICkit Plus and PICkit Serial...

    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    MCP2515-E/P
    1.248000
    2.200000
    18
    PDIP
    .300in
    Matte Tin
    e3
    MCP2515-E/PRB2
    1.248000
    2.200000
    18
    PDIP
    .300in
    Matte Tin
    e3
    MCP2515-I/P
    1.248000
    2.200000
    18
    PDIP
    .300in
    Matte Tin
    e3
    MCP2515-I/PRB2
    1.248000
    2.200000
    18
    PDIP
    .300in
    Matte Tin
    e3
    MCP2515-E/PRB4
    1.248000
    2.200000
    18
    PDIP
    .300in
    Matte Tin
    e3
    MCP2515-I/PRB4
    1.248000
    2.200000
    18
    PDIP
    .300in
    Matte Tin
    e3
    MCP2515-I/SORB4
    0.481000
    0.857143
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515T-E/SOVAO
    0.481000
    1.000909
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515-E/SOVAO
    0.481000
    0.857143
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515T-E/SORB4
    0.481000
    1.000909
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515-E/SORB4
    0.481000
    0.857143
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515T-I/SO
    0.481000
    1.000909
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515-I/SO
    0.481000
    0.857143
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515T-E/SO
    0.481000
    1.000909
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515T-E/SORB2
    0.481000
    1.000909
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515T-I/SORB2
    0.481000
    1.000909
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515T-I/SOVAO
    0.481000
    1.000909
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515-E/SO
    0.481000
    0.857143
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515-E/SORB2
    0.481000
    0.857143
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515-I/SORB2
    0.481000
    0.857143
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515-I/SOVAO
    0.481000
    0.857143
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515T-I/SORB4
    0.481000
    1.000909
    18
    SOIC
    .300in
    Matte Tin
    e3
    MCP2515-E/STVAO
    0.078000
    0.175676
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515T-E/STRB4
    0.078000
    0.200000
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515-E/STRB4
    0.078000
    0.175676
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515T-I/ST
    0.078000
    0.200000
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515T-I/STG
    0.078000
    0.200000
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515T-I/STRB2
    0.078000
    0.200000
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515T-E/ST
    0.078000
    0.200000
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515T-E/STRB2
    0.078000
    0.200000
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515-I/ST
    0.078000
    0.175676
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515-I/STRB2
    0.078000
    0.175676
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515-I/STVAO
    0.078000
    0.175676
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515-E/ST
    0.078000
    0.175676
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515-E/STRB2
    0.078000
    0.175676
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515T-I/STRB4
    0.078000
    0.200000
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515-I/STRB4
    0.078000
    0.175676
    20
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP2515-E/MLVAO
    0.043100
    0.076923
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    MCP2515T-E/MLVAO
    0.043100
    0.212121
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    MCP2515T-I/ML
    0.043100
    0.212121
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    MCP2515T-E/ML
    0.043100
    0.212121
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    MCP2515-I/ML
    0.043100
    0.076923
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    MCP2515-E/ML
    0.043100
    0.076923
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    MCP2515-I/SOGRB2
    0.481000
    0.880952
    18
    SOIC
    .300in
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
