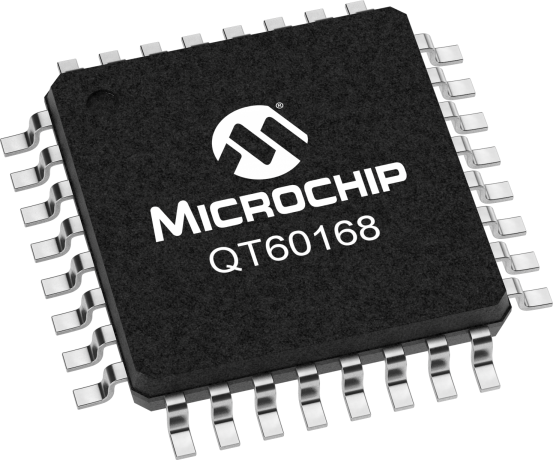

QT60168

In Production

QMatrix™ ICs detect human touch on up to 16 keys when used with scanned, passive X-Y matrices. They project touch keys through almost any dielectric-glass, plastic, stone, ceramic, and even wood-up to thicknesses of over 5cm. Touch areas are defined as simple two-part interdigitated electrodes of conductive material, such as copper, screened silver, or carbon deposited on the rear of a control panel. Key sizes, shapes and placement are almost entirely arbitrary. The sensitivity of each key can be set individually. Key setups are stored in an onboard EEPROM and do not need to be reloaded with each powerup. They contain Quantum-pioneered adaptive auto self-calibration, drift compensation, and digital filtering algorithms that make their sensing functions robust and survivable.



    Features

        • 16 buttons
        • SPI interface
        • Adjacent Key Suppression (AKS)
        • Cost efficent touch IC solution
        • 3V - 5V Vdd operating power

        QMatrix™ ICs detect human touch on up to 16 keys when used with scanned, passive X-Y matrices. They project touch keys through almost any dielectric-glass, plastic, stone, ceramic, and even wood-up to thicknesses of over 5cm.

    Parameter Name
    Value
    Product Type
    Proximity/Keys/Slider
    Max Number of Keys
    16
    Interface
    SPI
    Voltage Range
    3.0V - 5.5V
    Documentation
    Data Sheets
    04/01/2005
    868KB
      Application Notes



    AppNote
    11/01/2011
    1033KB
    AppNote
    10/01/2005
    423KB
    AppNote
    10/01/2008
    64KB
    AppNote
    10/01/2008
    272KB
      White Papers




    WhitePapers
    01/01/2000
    387KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    QT60168-ASG
    32
    TQFP
    -40C to +85C
    TRAY
    5.41
    4.97
    4.50
    4.14
    3.93

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    QT60168-ASG
    0.338300
    0.800000
    32
    TQFP
    7x7x1mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
