Microchip Technology Inc

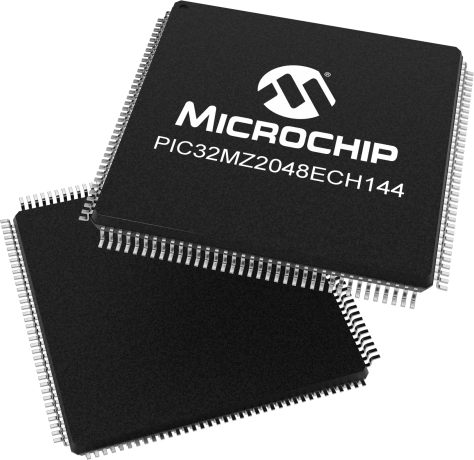

PIC32MZ2048ECH144

Not Recommended for new designs

Please consider PIC32MZ2048EFH144 for new designs




    Features

        Key Features

        • 200 MHz/330 DMIPS, microAptiv core
        • DSP-enhanced core:
          • Four 64-bit accumulators
          • Single-cycle MAC, saturating and fractional math
        • Dual Panel Flash for live update support
        • 10-bit, 500 KSPS, 48-channel ADC module
        • Memory Management Unit for optimum embedded OS execution
        • microMIPS mode for up to 35% code compression
        • CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
        • SPI/I2S interfaces for audio processing and playback
        • Hi-Speed USB 2.0 Device/Host/OTG
        • 10/100 Mbps Ethernet MAC with MII and RMII interface
        • Temperature Range: - 40°C to 85°C; - 40°C to 125°C (planned)

        Microcontroller Features

        • Operating voltage range of 2.2V to 3.6V
        • 2MB Flash memory (plus an additional 160 KB of Boot Flash)
        • 512KB SRAM memory
        • microMIPS mode for up to 35% smaller code size
        • DSP-enhanced core:
          • Four 64-bit accumulators
          • Single-cylce MAC, saturating and fractional math
          • Code-efficient (C and Assembly) architecture
          • Low-power management modes (Idle and Sleep)

          Peripheral Features

          • 50 MHz External Bus Interface (EBI)
          • 50 MHz Serial Quad Interface (SQI)
          • Peripheral Pin Select (PPS) functionality to enable function remap
          • 8 channels of hardware programmable DMA and 16 channels of dedicated DMA with automatic data size detection
          • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
          • Two CAN modules 2.0B Active with DeviceNet addressing support
          • Six 4-wire SPI modules (50 Mbps)
          • SQI configurable as an additional SPI module (50 MHz)
          • Five I2C modules (up to 1 Mbaud) with SMBus support
          • Parallel Master Port (PMP)
          • Hardware Real-Time Clock and Calendar (RTCC)
          • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
          • Nine Capture inputs and Nine Compare/PWM outputs

          Audio/Graphics/Touch HMI Features

          • Graphics interface: EBI or PMP
          • Audio data communication: I2S, LJ, RJ, USB
          • Audio data control interface: SPI and I2C™
          • Audio data master clock: Fractional clock frequencies with USB synchronization

          Advanced Analog Features

          • 10-bit ADC Module:
          • 500 Ksps rate with one Sample and Hold (S&H) circuits
          • Up to 48 analog inputs
          • Flexible and independent ADC trigger sources
          • 6 digital filters and comparators
          • Two analog comparators with 32 programmable voltage references
          • Temperature sensor with ±2°C accuracy

          Debugger Development Support

          • In-circuit and in-application programming
          • 4-wire MIPS® Enhanced JTAG interface
          • Unlimited program and 12 complex data breakpoints
          • IEEE 1149.2-compatible (JTAG) boundary scan
          • Non-intrusive hardware-based instruction trace
    Parameter Name
    Value
    Family
    PIC32MZEC
    Max Speed MHz
    200
    Program Memory Size (KB)
    2048
    RAM (KB)
    512
    Auxiliary Flash (KB)
    160
    Temperature Range (C)
    -40 to 85
    Operating Voltage Range (V)
    2.2 to 3.6
    DMA Channels
    15
    SPITM
    6
    I2CTM Compatible
    5
    CODEC Interface (I2S,AC97)
    Yes
    Peripheral Pin Select (PPS) Crossbar
    Yes
    USB
    HS Device/Host/OTG
    USB Interface
    1,HS Device/Host/OTG
    CAN
    2
    A/D channels
    48
    Max A/D Resolution
    10
    Max A/D Sample Rate (KSPS)
    500
    Input Capture
    9
    Output Compare/Std. PWM
    9
    16-bit Digital Timers
    9
    Parallel Port
    PMP
    Comparators
    2
    Internal Oscillator
    8 MHz, 32 kHz
    RTCC
    Yes
    I/O Pins
    120
    Pin Count
    144
    External Memory Bus Interface
    Yes
    Serial Quad Interface
    Yes
