Microchip Technology Inc

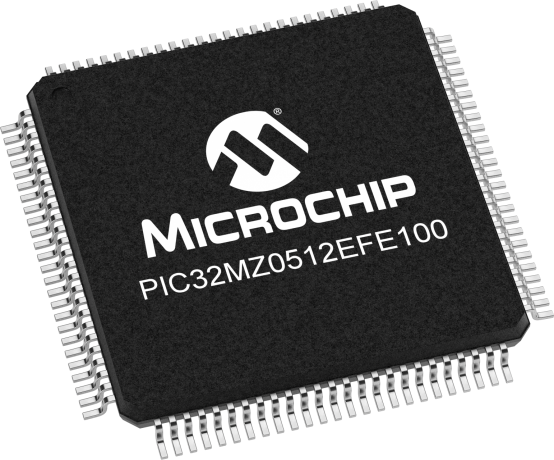

PIC32MZ0512EFE100

In Production






    Features

          Key Features
          • 200 MHz/330 DMIPS, MIPS Warrior M-class core
          • DSP-enhanced core:
            • Four 64-bit accumulators
            • Single-cycle MAC, saturating and fractional math
            • IEEE 754-compliant
            • Dual Panel Flash for live update support
            • FPU for fast single- and double-precision math
            • 12-bit, 18 MSPS, 40-channel ADC module
            • Memory Management Unit for optimum embedded OS execution
            • microMIPS mode for up to 35% code compression
            • UART, I2C, PMP, EBI, SQI & Analog Comparators
            • SPI/I2S interfaces for audio processing and playback
            • Hi-Speed USB 2.0 Device/Host/OTG
            • 10/100 Mbps Ethernet MAC with MII and RMII interface
            • Temperature Range: - 40°C to 85°C; - 40°C to 125°C
            • AEC-Q100 Qualified
              • Grade 1
              • - 40°C to 125°C
            Microcontroller Features
            • Operating voltage range of 2.2V to 3.6V
            • 512KB Flash memory (plus an additional 160 KB of Boot Flash)
            • 128KB SRAM memory
            • microMIPS mode for up to 35% smaller code size
            • DSP-enhanced core:
              • Four 64-bit accumulators
              • Single-cylce MAC, saturating and fractional math
              • IEEE 754-compliant
            • FPU for fast single- and double-precision math
            • Code-efficient (C and Assembly) architecture
            • Low-power management modes (Idle and Sleep)
              Peripheral Features
              • 50 MHz External Bus Interface (EBI)
              • 50 MHz Serial Quad Interface (SQI)
              • Peripheral Pin Select (PPS) functionality to enable function remap
              • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
              • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
              • Six 4-wire SPI modules (50 Mbps)
              • SQI configurable as an additional SPI module (50 MHz)
              • Five I2C modules (up to 1 Mbaud) with SMBus support
              • Parallel Master Port (PMP)
              • Hardware Real-Time Clock and Calendar (RTCC)
              • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
              • Nine Capture inputs and Nine Compare/PWM outputs
                Audio/Graphics/Touch HMI Features
                • Graphics interface: EBI or PMP
                • Audio data communication: I2S, LJ, RJ, USB
                • Audio data control interface: SPI and I2C™
                • Audio data master clock: Fractional clock frequencies with USB synchronization
                  Advanced Analog Features
                  • 12-bit ADC Module:
                    • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
                    • Up to 40 analog inputs
                    • Can operate during sleep and idle modes
                    • Multiple trigger sources
                    • Six digital comparators and six digital filters
                  • Two analog comparators with 32 programmable voltage references
                  • Temperature sensor with ±2°C accuracy
                    Debugger Development Support
                    • In-circuit and in-application programming
                    • 4-wire MIPS® Enhanced JTAG interface
                    • Unlimited program and 12 complex data breakpoints
                    • IEEE 1149.2-compatible (JTAG) boundary scan
                    • Non-intrusive hardware-based instruction trace
                    Integrated Software Libraries and Tools
                    • MPLAB Harmony - PIC32 software development framework
                    • C/C++ compiler with native DSP/fractional and FPU support
                    • TCP/IP, USB, Graphics and mTouch middleware
                    • MFi, Android and Bluetooth audio frameworks
                    • RTOS Kernels, Express Logic ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
              Parameter Name
              Value
              Family
              PIC32MZEF
              Max Speed MHz
              200
              Program Memory Size (KB)
              512
              RAM (KB)
              128
              Auxiliary Flash (KB)
              160
              Temperature Range (C)
              -40 to 125
              Operating Voltage Range (V)
              2.2 to 3.6
              DMA Channels
              8
              SPITM
              6
              I2CTM Compatible
              5
              CODEC Interface (I2S,AC97)
              Yes
              Peripheral Pin Select (PPS) Crossbar
              Yes
              Type of Ethernet Modules
              10/100 Base-TX Mac
              Number of Ethernet Ports
              1
              USB
              1
              USB Interface
              HS Device/Host/OTG
              A/D channels
              40
              Max A/D Resolution
              12
              Max A/D Sample Rate (KSPS)
              18000
              Input Capture
              9
              Output Compare/Std. PWM
              9
              16-bit Digital Timers
              9
              Parallel Port
              PMP
              Comparators
              2
              Internal Oscillator
              8 MHz, 32 kHz
              RTCC
              Yes
              I/O Pins
              78
              Pin Count
              100
              External Memory Bus Interface
              Yes
              Serial Quad Interface
              Yes
