Microchip Technology Inc

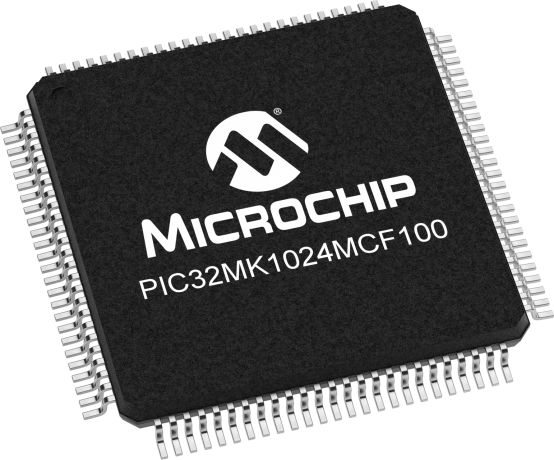

PIC32MK1024MCF100

In Production

120Mhz MIPS32 microAptiv MCU Core
Floating Point Unit for single and double precision math
MicroMIPS Mode for 40% smaller code size
DSP-Enhanced Core:
Four 64-bit Accumulators
Single Cycle MAC supporting saturating and fractional math



    Features

        Key Features

        • 120Mhz MIPS32 microAptiv MCU Core
        • Floating Point Unit for single and double precision math
        • MicroMIPS Mode for 40% smaller code size
        • DSP-Enhanced Core:
          • Four 64-bit Accumulators
          • Single Cycle MAC supporting saturating and fractional math
        • 1MB Dual Panel Flash with Live Update support
        • 4KB EEPROM
        • High Performance Analog Front End
          • 7x 12-bit 3.75MSPS ADC Cores up to 42 analog inputs
          • Four Op amps
          • Five analog comparators
          • Up to three 12-bit DACs
        • Motor Control PWM
          •  Eight PWM pairs
          •  Six additional Single-Ended PWM modules
          •  Dead Time for rising and falling edges
          •  Dead-Time Compensation
          •  8 ns PWM Resolution
          •  Clock Chopping for High-Frequency Operation
          •  PWM Support for:
          •  DC/DC, AC/DC, inverters, PFC, lighting
          •  BLDC, PMSM, ACIM, SRM motors
          •  Choice of six Fault and Current Limit Inputs
          •  Flexible Trigger Configuration for ADC Triggering



        • Output Compare / Input Captures / RTCC
          • Up to 6 Quadrature Encoder Interface (QEI) Modules
          • 16 Output Compare
          • 16 Input Capture
          • RTCC
        • Extensive Communication Interfaces
          • Dual FS USB 2.0 OTG controllers
          • Four CAN2.0 Modules
          • Up to six UART Modules (up to 25Mbps) with LIN and IrDA support
          • Up to six SPI/I2S modules
          • Peripheral Pin Select  (PPS) to enable remapable pin functions
        • Qualification and Class B Support
          •  AEC-Q100 REVG (Grade 1 -40ºC to +125ºC) (planned)
          •  Class B Safety Library, IEC 60730 (planned)
          •  Back-up internal oscillator
          •  Programmable High/Low-Voltage Detect module
          •  Clock monitor with Back-up Internal Oscillator
          •  Global register locking
        • Debugger Development Support
          •  In-circuit and in-application programming
          •  2-wire or 4-wire MIPS® Enhanced JTAG interface
          •  Unlimited software and 12 complex breakpoints
          •  IEEE 1149.2-compatible (JTAG) boundary scan
          •  Non-intrusive hardware-based instruction trace
        • Software and Tools Support
    Parameter Name
    Value
    Family
    PIC32MKMC
    Max Speed MHz
    120
    Program Memory Size (KB)
    1024
    RAM (KB)
    256
    Data EEPROM (bytes)
    4096
    Temperature Range (C)
    -40 to 125
    Operating Voltage Range (V)
    2.2 to 3.6
    DMA Channels
    21
    SPITM
    6
    Number of Op Amps
    4
    CODEC Interface (I2S,AC97)
    Yes
    Peripheral Pin Select (PPS) Crossbar
    Yes
    CTMU
    Yes
    USB
    2
    USB Interface
    Full Speed
    Number of CAN modules
    4
    Type of CAN module
    CAN
    A/D channels
    42
    Max A/D Resolution
    12
    Max A/D Sample Rate (KSPS)
    3750
    Number of DACs
    3
    Input Capture
    16
    Output Compare/Std. PWM
    16
    Motor Control PWM Channels
    16
    16-bit Digital Timers
    14
    Parallel Port
    EPMP
    Comparators
    5
    Internal Oscillator
    8Mhz
    RTCC
    Yes
    I/O Pins
    78
    Pin Count
    100
    Low Power
    Yes
    Quadrature Encoder Interface (QEI)
    6
    Documentation
    Data Sheets
    04/03/2017
    8146KB
      Errata




    Errata
    09/10/2017
    193KB
      Programming Specifications




    Programming Specification
    07/24/2017
    638KB
      Application Notes



    AppNote
    06/30/2011
    440KB
    AppNote
    01/26/2015
    655KB
    AppNote
    10/04/2017
    415KB
    AppNote
    11/17/2017
    423KB
      Brochures



    Brochures
    02/24/2017
    2719KB
    Brochures
    02/16/2014
    787KB
    Brochures
    07/25/2017
    2078KB
    Brochures
    08/02/2016
    2633KB
      Device Documentation




    DeviceDoc
    04/03/2017
    10782KB
    DeviceDoc
    07/13/2017
    291KB
    DeviceDoc
    03/31/2017
    868KB
      Product Line Documents



    Product Line Documents
    11/08/2017
    242KB
    Product Line Documents
    03/08/2017
    486KB
      Reference Manual



    Reference Manual
    05/09/2017
    1925KB
    Reference Manual
    10/19/2011
    127KB
    Reference Manual
    02/22/2011
    855KB
    Reference Manual
    09/10/2015
    228KB
    Reference Manual
    07/09/2015
    324KB
    Reference Manual
    11/15/2013
    351KB
    Reference Manual
    08/09/2011
    162KB
    Reference Manual
    01/27/2015
    448KB
    Reference Manual
    07/09/2015
    725KB
    Reference Manual
    01/09/2013
    381KB
    Reference Manual
    04/27/2016
    179KB
    Reference Manual
    04/14/2011
    877KB
    Reference Manual
    05/23/2012
    746KB
    Reference Manual
    11/15/2017
    915KB
    Reference Manual
    10/11/2011
    748KB
    Reference Manual
    04/13/2011
    926KB
    Reference Manual
    11/14/2013
    376KB
    Reference Manual
    11/15/2013
    605KB
    Reference Manual
    11/14/2013
    115KB
    Reference Manual
    02/12/2012
    348KB
    Reference Manual
    05/23/2012
    1954KB
    Reference Manual
    02/15/2012
    293KB
    Reference Manual
    12/04/2017
    812KB
    Reference Manual
    06/28/2015
    374KB
    Reference Manual
    04/20/2017
    522KB
    Reference Manual
    11/14/2013
    384KB
    Reference Manual
    08/06/2015
    1019KB
    Reference Manual
    07/29/2015
    333KB
    Reference Manual
    06/10/2016
    283KB
    Reference Manual
    06/10/2016
    92KB
    Reference Manual
    06/10/2016
    1019KB
    Reference Manual
    06/09/2016
    748KB
    Reference Manual
    04/01/2015
    362KB
      Software




    Software
    10/24/2014
    27KB
    Software
    11/01/2017
    646690KB
    Software
    07/09/2015
    397920KB
    Software
    11/01/2017
    543814KB
    Software
    07/09/2015
    353972KB
    Software
    03/02/2015
    394800KB
    Software
    02/19/2015
    416818KB
    Software
    11/01/2017
    695062KB
    Software
    07/09/2015
    415000KB
    Software
    07/13/2017
    210764KB
    Software
    07/13/2017
    212260KB
    Software
    07/13/2017
    210327KB
    Software
    11/27/2017
    30059KB
    Software
    11/27/2017
    31060KB
    Software
    11/27/2017
    30091KB
      Technical Briefs



    Tech Briefs
    12/11/2017
    1653KB
    Tech Briefs
    10/03/2017
    752KB
    Tech Briefs
    11/16/2017
    714KB
      User Guides



    User Guides
    11/09/2014
    583KB
    User Guides
    01/05/2017
    1199KB
    User Guides
    09/14/2015
    3565KB
      Webinars




    Webinars
    01/27/2010
    33787KB
