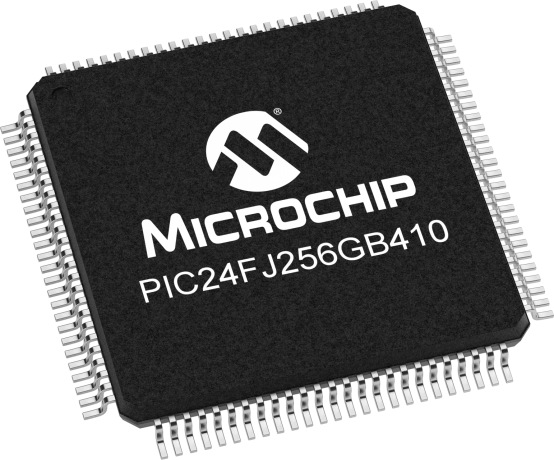

PIC24FJ256GB410

In Production

PIC24F 16-bit Microcontroller featuring integrated Hardware Crypto module and eXtreme Low Power. This family also includes 256KB Flash, 16KB RAM, USB, LCD and advanced peripherals. The combination of features makes the part ideally suited for low power embedded security applications.



    Features

        Cryptographic Engine

        • Performs NIST Standard Encryption/Decryption Operations without CPU Intervention
        • AES Cipher Support for 128, 192 and 256-Bit Keys
        • DES/3DES Cipher Support, with up to Three Unique Keys for 3DES
        • Supports ECB, CBC, OFB, CTR and CFB128 modes
        • Programmatically Secure OTP Array for Key Storage
        • True Random Number Generation
        • Battery-Backed RAM Key Storage

        Extreme Low-Power

        • Multiple Power Management Options for Extreme Power Reduction:
          • VBAT allows for lowest power consumption on backup battery (with or without RTCC)
          • Deep Sleep allows near total power-down with the ability to wake-up on external triggers
          • Sleep and Idle modes selectively shut down peripherals and/or core for substantial power reduction and fast wake-up
          • Doze mode allows CPU to run at a lower clock speed than peripherals
        • Alternate Clock modes allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction
        • Extreme Low-Power Current Consumption for Deep Sleep
          • WDT: 650 nA @ 2V typical
          • RTCC: 650 nA @ 32 kHz, 2V typical
          • Deep Sleep current, 60 nA typical
        • 160 uA/MHz in Run mode

        CPU

        • Modified Harvard Architecture
        • Up to 16 MIPS Operation @ 32 MHz
        • 8 MHz Internal Oscillator:
          • 96 MHz PLL option
          • Multiple clock divide options
          • Run-time self-calibration capability for maintaining better than ±0.20% accuracy
          • Fast start-up
        • 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
        • 32-Bit by 16-Bit Hardware Divider
        • 16 x 16-Bit Working Register Array
        • C Compiler Optimized Instruction Set Architecture
        • Two Address Generation Units for Separate Read and Write Addressing of Data Memory

        Analog Features

        • 10/12-Bit, up to 24-Channel Analog-to-Digital (A/D) Converter:
          • Conversion rate of 500 ksps (10-bit), 200 kbps (12-bit)
          • Auto-scan and threshold compare features
          • Conversion available during Sleep
        • One 10-Bit Digital-to-Analog Converter (DAC):
          • 1 Msps update rate
        • Three Rail-to-Rail, Enhanced Analog Comparators with Programmable Input/Output Configuration
        • Charge Time Measurement Unit (CTMU):
          • Used for capacitive touch sensing, up to 24 channels
          • Time measurement down to 100 ps resolution

        Dual Partition Flash with Live Update Capability

        • Capable of Holding Two Independent Software Applications, including Bootloader
        • Permits Simultaneous Programming of One Partition while Executing Application Code from the Other
        • Allows Run-Time Switching Between Active Partitions
    Parameter Name
    Value
    Architecture
    16-bit
    CPU Speed (MIPS)
    16
    Memory Type
    Flash
    Program Memory (KB)
    256
    RAM (KB)
    16
    Temperature Range C
    -40 to 85
    Operating Voltage Range (V)
    2 to 3.6
    I/O Pins
    84
    Pin Count
    100
    System Management Features
    BOR, LVD
    POR
    Yes
    WDT
    Yes
    Internal Oscillator
    8 MHz, 31 kHz
    Digital Communication Peripherals
    6-UART
    4-SPI
    3-I2C
    0-MSSP(SPI/I2C)
    Codec Interface
    Yes
    Analog Peripherals
    1-A/D 24x12-bit @ 500(ksps) 1-D/A 1x10-bit
    Comparators
    3
    USB
    1
    USB Interface
    FS Device/Host/OTG
    Capture/Compare/PWM Peripherals
    6
    PWM Resolution bits
    16
    Timers
    31 x 16-bit 15 x 32-bit
    Parallel Port
    EPMP
    Hardware RTCC
    Yes
    DMA
    6
    Low Power
    Yes
    Cap Touch Channels
    24
    Documentation
    Data Sheets
    12/01/2016
    4122KB
      Errata




    Errata
    12/22/2016
    115KB
      Migration Documents




    Migration Documents
    03/28/2006
    770KB
      Programming Specifications



    Programming Specification
    02/25/2013
    10777KB
    Programming Specification
    01/12/2017
    481KB
      Application Notes



    AppNote
    03/01/2013
    347KB
    AppNote
    05/02/2014
    350KB
    AppNote
    05/18/2007
    413KB
    AppNote
    04/20/2015
    467KB
    AppNote
    02/25/2008
    542KB
    AppNote
    04/20/2015
    359KB
    AppNote
    02/23/2009
    262KB
    AppNote
    04/20/2015
    532KB
    AppNote
    04/20/2015
    248KB
    AppNote
    01/08/2008
    387KB
    AppNote
    01/24/2008
    498KB
    AppNote
    07/15/2008
    240KB
    AppNote
    03/28/2010
    150KB
    AppNote
    01/05/2017
    439KB
    AppNote
    02/03/2009
    834KB
    AppNote
    04/19/2017
    184KB
    AppNote
    05/19/2010
    1100KB
    AppNote
    05/11/2011
    168KB
    AppNote
    11/30/2011
    274KB
    AppNote
    09/22/2014
    146KB
    AppNote
    04/11/2016
    220KB
    AppNote
    08/10/2016
    194KB
      Brochures



    Brochures
    05/26/2017
    514KB
    Brochures
    04/29/2016
    4228KB
      Reference Manual



    Reference Manual
    03/14/2014
    206KB
    Reference Manual
    11/15/2016
    144KB
    Reference Manual
    04/20/2015
    524KB
    Reference Manual
    05/04/2016
    304KB
    Reference Manual
    11/13/2013
    106KB
    Reference Manual
    05/11/2015
    351KB
    Reference Manual
    03/18/2014
    668KB
    Reference Manual
    07/10/2015
    351KB
    Reference Manual
    03/14/2014
    392KB
    Reference Manual
    03/14/2014
    373KB
    Reference Manual
    03/13/2014
    363KB
    Reference Manual
    04/20/2015
    332KB
    Reference Manual
    01/21/2016
    222KB
    Reference Manual
    07/16/2014
    402KB
    Reference Manual
    03/14/2014
    467KB
    Reference Manual
    11/13/2013
    306KB
    Reference Manual
    02/22/2013
    354KB
    Reference Manual
    02/22/2013
    207KB
    Reference Manual
    02/22/2013
    96KB
    Reference Manual
    02/22/2013
    339KB
    Reference Manual
    02/22/2013
    276KB
    Reference Manual
    02/22/2013
    111KB
    Reference Manual
    02/22/2013
    490KB
    Reference Manual
    02/22/2013
    155KB
    Reference Manual
    04/16/2014
    324KB
    Reference Manual
    02/22/2013
    107KB
    Reference Manual
    02/22/2013
    329KB
    Reference Manual
    02/22/2013
    408KB
    Reference Manual
    02/22/2013
    280KB
    Reference Manual
    02/22/2013
    168KB
    Reference Manual
    02/22/2013
    92KB
    Reference Manual
    02/22/2013
    508KB
    Reference Manual
    02/22/2013
    330KB
    Reference Manual
    02/22/2013
    216KB
    Reference Manual
    04/01/2015
    750KB
      Software




    Software
    01/12/2017
    3KB
      Software Library




      Schematics




    PCB artwork
    12/21/2016
    33417KB
      Tips and Tricks



    Tips and Tricks
    04/22/2009
    5964KB
    Tips and Tricks
    04/22/2009
    643KB
      Video



    Video
    04/16/2009
    8968KB
    Video
    04/16/2009
    21803KB
