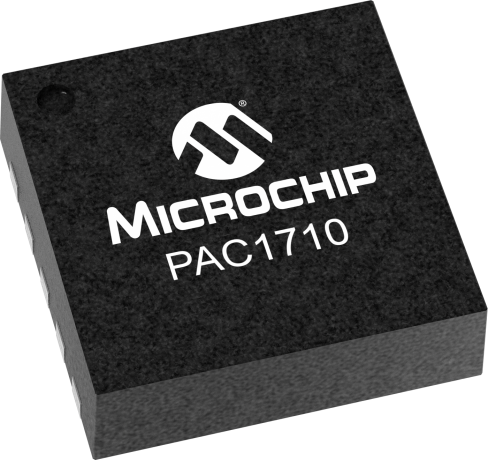

product primary image

PAC1710

Status: In Production

Features:

  • Current measurement is integrated over 2.5ms to 2.6sec with up to 11-bit resolution
  • 1% current measurement accuracy in positive range
  • Measures VSOURCE voltage
  • Calculates proportional power
  • Bi-directional current sensing
  • Auto-zero input offset voltage
  • Adjustable sampling time and resolution
  • 5µA typical Standby current
  • ±10mV, ±20mV, ±40mV, and ±80mV
  • Power supply range 3.0V to 5.5V
  • Wide temperature operating range: -40°C to +85°C
  • ALERT# output for voltage and current out of limit transients between sampling interval
  • Address selectable by resistor decode
  • With averaging effective sampling times up to 2.6sec
  • 3x3 mm DFN-10 package
  • Notebook and Desktop Computers
  • Industrial
  • Power Management Systems
  • Embedded Applications
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The PAC1710 is a high-side bi-directional current sensing monitor with precision voltage measurement capabilities. The power monitor measures the voltage developed across an external sense resistor to represent the high-side current of a battery or voltage regulator. The PAC1710 also measures the SENSE+ pin voltage and calculates average power over the integration period. The PAC1710 can be programmed to assert the ALERT# pin when high and low limits are exceeded for Current Sense and Bus Voltage. Available in a RoHS compliant 3 X 3mm 10-pin DFN package.

Additional Features

    Features

    • High-side current sensor
      • Current measurement is integrated over 2.5ms to 2.6sec with up to 11-bit resolution
      • 1% current measurement accuracy in positive range
      • Measures VSOURCE voltage
    • Calculates proportional power
    • VSOURCE voltage range 0V to 40V
      • Bi-directional current sensing
    • Auto-zero input offset voltage
    • Digital averaging
      • Adjustable sampling time and resolution
    • 5µA typical Standby current
    • Programmable sense voltage range
      • ±10mV, ±20mV, ±40mV, and ±80mV
    • Power supply range 3.0V to 5.5V
    • Wide temperature operating range: -40°C to +85°C
    • ALERT# output for voltage and current out of limit transients between sampling interval
    • SMBus 2.0 communications interface
      • Address selectable by resistor decode
    • Sample time configurable from 2.5ms-320ms
      • With averaging effective sampling times up to 2.6sec
    • 3x3 mm DFN-10 package

    Applications

    • Notebook and Desktop Computers
    • Industrial
    • Power Management Systems
    • Embedded Applications
Parametrics
Name
Value
# Current Sensors
1
Description
Current/DC Power Sensor
Full Scale Range (mV)
10, 20, 40, 80
Current Measuerment Max Accr (%)
±1
Effective Sampling Interval min to max (msec)
2.5 to 2600
Bus Voltage Range (V)
0 to +40
# Temperature Monitors (ambient, remote)
N/A
Temperature Accuracy Typ / Max (°C)
N/A
Alert/Therm
1
Interface
SMBus/I2C
Address Select
yes

Documents

Jump to:

Data Sheets

02/09/2016
475KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP1663 USB Programmable SEPIC Ref Design
MCP1663 USB Programmable SEPIC Ref Design ( ARD00698 )

The MCP1663 USB programmable power supply reference design was developed to provide a versatile and easy to use solution for engineers. It easily transforms a typical computer’s USB port into a variable output power supply capable of supplying 2.5V to 30V.

Learn More
Add To Cart
PAC1710/20 Single/Dual High Side DC Current Sense - SMBus
PAC1710/20 Single/Dual High Side DC Current Sense - SMBus ( ADM00494 )

The PAC1710/20 Single-Dual High Side DC Current Sense Eval Board provides the means to evaluate features and to view and modify registers of both PAC1710 and PAC1720. There are two modes of EVB current monitoring operation: Demo Mode, which monitors an onboard current source, and Sys Mode, which monitors an external current source. LEDs indicate status information, and test points are included to...

Learn More
Add To Cart

Similar Devices

Product
Description
Full Scale Range (mV)
Bus Voltage Range (V)
Price5K
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.76
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.65
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.85
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24

Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$1.03
Current/DC Power Sensor
10, 20, 40, 80
0 to +40
$0.56
Dual Current/DC Power Sensor
10, 20, 40, 80
0 to +40
$0.79
Current/DC Power Sensor
100
0 to +32
$0.67
Quad DC Power sensor wtih Accumulator
100
0 to +32
$1.24

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PAC1710-1-AIA-TR
0.027700
0.114000
10
VDFN
3x3x0.9
NiPdAu
e4
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
