MGC3030

In Production

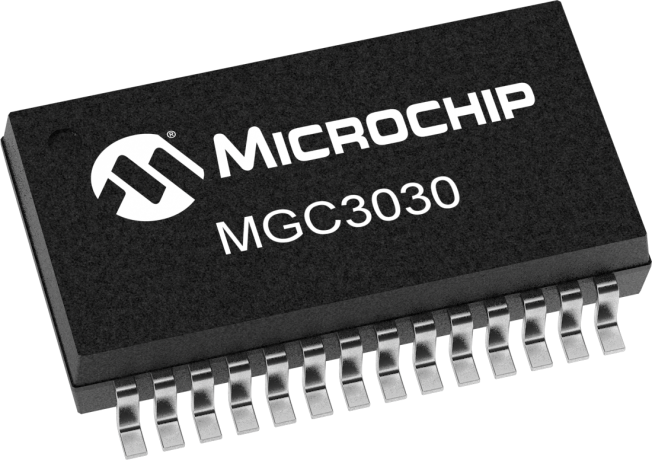

The MGC3030 is a 3D Gesture controller enabling Gesture based user interfaces as a single chip solution. The chip uses an electrical-field (E-field) for three-dimensional (3D) gesture recognition based on Microchip’s patented GestIC® technology. GestIC enables user command input with natural hand movements in free-space. Gestures are meaningful hand movements such as rotations to dim lights (Air wheel) or flicks to change to the next track.

The MGC3030 is a true single chip solution for gesture detection – on board (32bit SOC) runs the Colibri gesture suite, developed and provided by Microchip. Not a single line of code is needed to design in gestures into products – configuration is done by the AUREA SW suite. AUREA is provided for free from Microchip as well.

The MGC3030 offers the shortest development cycles for gestures. Design guides, Host reference code, I2C communication guide and also video
tutorials are provided by Microchip.

Besides 3D gestures the MGC3030 offers touch detection (Sensor Touch) and low power proximity (Wake up / Approach) are part of the offering.

The MGC3030 offers shortest Time To Market (TTM) for your project based on the GUI based design in SW Aurea - provided by Microchip. Please download for free.




    Features

        • GestIC Technology
        • Single chip 3D gesture recognition solution
        • Design in via GUI Aurea - no coding of MGC3030 required
        • Flexible & configurable communication
          • I2C
          • Gesture Port (EIOs, enabling host free usage)
        • Colibri gesture suite on board
          • Auto wake
          • Flick gestures
          • Air wheel
          • Sensor Touch
          • ...
        • SOC
          • Analog front end
          • 32-bit Signal processing unit
          • communication (I2C + Gesture Port)
    Parameter Name
    Value
    Product Type
    3D Gesture
    Input Channels
    5
    Proximity detection
    Yes
    Output Channels
    1
    Measurement Principle
    E-Field
    Report Rate (pps)
    200
    Number of Touches
    5
    Power
    3.3Vdc ±5%
    Power Modes
    3
    Interface
    I2C
    I/O, LED Drivers
    5
    Voltage Range
    3.14V - 3.47V
    Documentation
    Data Sheets
    07/13/2017
    1124KB
      Application Notes




    AppNote
    05/19/2015
    234KB
      Device Documentation




    DeviceDoc
    05/11/2015
    982KB
      User Guides



    User Guides
    01/15/2015
    1066KB
    User Guides
    01/15/2015
    2364KB
    User Guides
    04/11/2016
    1455KB
    User Guides
    07/27/2015
    830KB
      Quick Start Guides




    Quick Start Guides
    01/15/2015
    86KB
      Schematics




    Schematics
    01/14/2015
    5267KB
      Software




    Software
    03/13/2015
    1331KB
    Software
    01/14/2015
    15393KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    MGC3030-I/SS
    28
    SSOP
    -40C to +85C
    TUBE
    3.24
    2.97
    2.69
    2.47
    2.35
    MGC3030T-I/SS
    28
    SSOP
    -40C to +85C
    T/R
    3.26
    2.99
    2.70
    2.49
    2.37


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • MGC3030 - Woodstar Development Kit ( DM160226 )

      MGC3030


      The MGC3030 Woodstar Development Kit builds a complete MGC3030 reference system for evaluation as well as the design in of 3D gesture input sensing systems. The MGC3030 Woodstar Development Kit is based on Microchip's award winning GestIC technology and enables true single chip 3D Gesture detection.

      Together with the provided Aurea SW / reference designs / SDK package /...
