Microchip Technology Inc

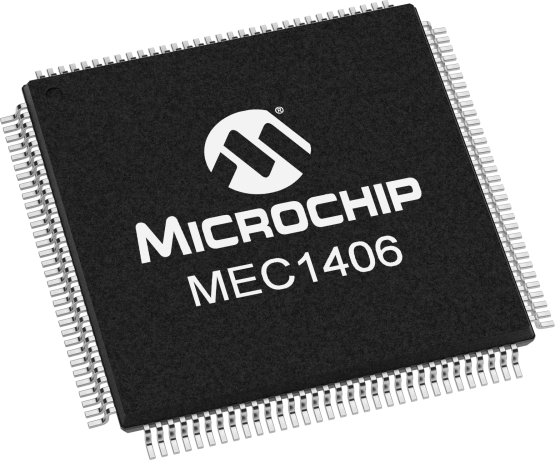

MEC1406

In Production

For product comparison, please consider: MEC1418
View Side By Side Comparison

The MEC1406 is a keyboard and embedded controller customized for notebooks and tablet platforms.  The MEC140X/1X family is a highly-configurable, mixed signal, advanced I/O controller architecture.  MEC1406 incorporates a 32-bit MIPS32 M14K Microcontroller core with 160KB  of closely-coupled SRAM for code and data that loads from SPI Flash.  Designers can leverage the host SPI-flash (used for BIOS storage) for non-volatile EC firmware storage, as a cost-effective system solution.

Microchip’s MEC14XX family also provides a flexible arrangement that allows multiple I/O signals to be configured to support either 3.3V or 1.8V, reducing the system bill-of-materials cost by eliminating the need for external voltage translators. The MEC1406 communicates with the system host through Intel Low Pin Count (LPC) or I2C.

All members of the MEC14XX family are pin and register compatible and are supported by Microchip’s development tools.  Examples include the MPLAB® XC Compilers, the MPLAB REAL ICE In-Circuit Emulator (part # DV244005), the MPLAB ICD 3 In-Circuit Debugger (part # DV164035) and the PICkit 3 Starter Kit (part # DV164130).



    Features

        • 3.3 V
        • MIPS32® M14K™ MIcrocontroller Core
        • ACPI 3.0 Compliant
        • PC2001 Compliant
        • VTR (standby) and VBAT (Power Planes)
        • Connected Standby Support
        • LPC Host Interface
        • 8042 Emulated Keyboard Controller
        • Secure Boot ROM Loader
        • System to EC Message Interface
        • Trace FIFO Debug Port (TFDP)
        • 32-bit RTOS Timer
    Parameter Name
    Value
    Keyboard Scan Matrix
    18x8
    UART
    Full
    Customer Programmable RAM
    Yes
    Host Interface
    LPC, I2C
    Code Storage
    160 KB SRAM (Code + Data)
    Operating Temperature
    0° C to +70° C
    Tach
    2
    Fan Tachometer Inputs
    2
    8024 Keyboard Controller
    Yes
    Data RAM
    Yes
    Breathing/ Blinking LED
    3
    GPIO
    106
    PWM
    8
    Package
    128 VTQFP
    LED
    3
    SMBus Interface
    3
    Analog to Digital Converter
    8
    SMBus Ports
    6
    BC Link
    2
    AMD SB-TSI
    1
    ACPI Interfaces
    5
    Counter/Timers
    4
    Documentation
    Data Sheets
    10/20/2016
    5699KB
      Application Notes



    AppNote
    09/15/2017
    924KB
    AppNote
    05/21/2015
    250KB
      Device Documentation




    DeviceDoc
    08/10/2017
    904KB
      aspxDeviceInfo



    DeviceInfo
    06/18/2015
    0B
    DeviceInfo
    06/18/2015
    0B
    DeviceInfo
    06/19/2015
    0B
      Software Library




    SoftwareLibrary
    03/23/2017
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    MEC1406-NU
    128
    TQFP
    0C to +70C
    TRAY
    2.85
    2.38
    2.16
    2.00
    1.90

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Emulation & Debuggers
    • PICkit 3 In-Circuit Debugger ( PG164130 )

      PICkit

      Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit debugging offers these benefits:

      • Low cost
      • Minimum of additional hardware needed for debug
      • Expensive sockets or adapters are not required...

      Debug Features:
      Pgm-memory HW breakpoints:4
      Data-memory breakpoints:2
      WDT overflow:True

    • MPLAB ICD 3 In-Circuit Debugger ( DV164035 )

      MPLAB

       The MPLAB ICD 3 is a mature product. For new designs, consider using the MPLAB ICD 4 (DV164045)

      MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller...

      Debug Features:
      Pgm-memory HW breakpoints:4
      Data-memory breakpoints:2
      WDT overflow:True
      Pgm-memory SW breakpoints:Unlimited

    • MPLAB REAL ICE PROBE KIT ( DV244005 )

      MPLAB

      MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for Microchip Flash DSC® and MCU devices. It debugs and programs PIC® and dsPIC® Flash microcontrollers with the easy-to-use but powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.
      The MPLAB REAL ICE probe is connected...

      Debug Features:
      Pgm-memory HW breakpoints:4
      Data-memory breakpoints:2
      WDT overflow:True
      Pgm-memory SW breakpoints:Unlimited

    Similar Devices
    Product
    Price5K
    $2.75
    $2.75
    $3.31
    $1.76
    $1.90
    $2.03
    $2.16
    $2.27
    $3.96
    $3.93

    $4.21
    $5.06

    $5.06
    $2.42
    $3.45
    $3.23
    $3.58
    $5.62
    $6.69
    $5.56
    $11.01
    $1.58
    $1.67
    $2.41
    $2.49
    $2.53
    $2.75
    $5.56
    $2.53
    $2.75
    $1.55
    $2.53

    $2.53
    $2.53
    $2.53
    $2.78
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    MEC1406-NU-D0
    0.557500
    2.888889
    128
    TQFP
    14x14x1mm
    Matte Tin
    e3
    MEC1406-NU
    0.557500
    2.888889
    128
    TQFP
    14x14x1mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
