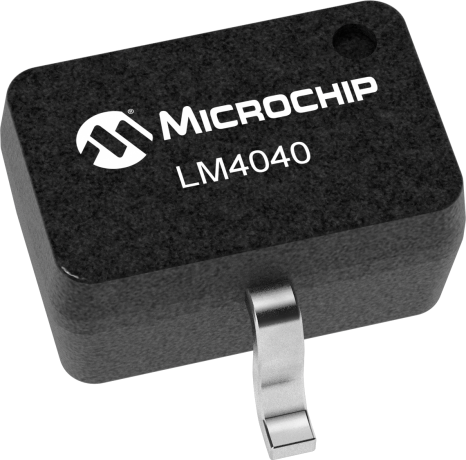

product primary image

LM4040

Status: In Production

Features:

  • Small SOT-23 package
  • No output capacitor required
  • Tolerates capacitive loads
  • Fixed reverse breakdown voltages of  2.5V, 4.096V and 5.0V
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

Ideal for space critical applications, the LM4040 and LM4041 precision voltage references are available in the SOT-23 surface-mount package. The LM4040 is the available in fixed reverse breakdown voltages of 2.5V, 4.096V and 5.0V. The LM4041 is available with a fixed 1.225V or an adjustable reverse breakdown voltage. The minimum operating current ranges from 60µA for the LM4041-1.2 to 74µA for the LM4040-5.0. LM4040 versions have a maximum operating current of 15mA. LM4041 versions have a maximum operating current of 12mA. The LM4040 and LM4041 have bandgap reference temperature drift curvature correction and low dynamic impedance, ensuring stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.

Additional Features
    • Small SOT-23 package
    • No output capacitor required
    • Tolerates capacitive loads
    • Fixed reverse breakdown voltages of  2.5V, 4.096V and 5.0V
Parametrics
Name
Value
Max. Load Current (mA)
±15
Initial Accuracy (max.%)
±0.5
Output Voltage (V)
2.5, 4.096, 5.0
Max. Supply Current (µA @ °C)
65
Temp. Coefficient (ppm/°C)
100
Vcc Range (V)
0 to 15
VIN Max (V)
15
Tol Typ (%)
±0.5
Output Current Min
60µA
Output Current Max
15mA
Noise (µV) rms
35
Reverse Breakdown Stability
120ppm

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Vcc Range (V)
Output Voltage(V)
Price5K

2.5, 4.096, 5.0
$0.16

1.225, Adj (1.24V-10V)
$0.16
1.65 - 5.5
1.024V, 1.250V, 1.800V, 2.048V, 2.500V, 3.000V, 3.300V, 4.096V
$0.55
2.7 - 5.5
2.5
$0.45
4.3 - 5.5
4.096
$0.45

Adj
$0.27
