Microchip Technology Inc

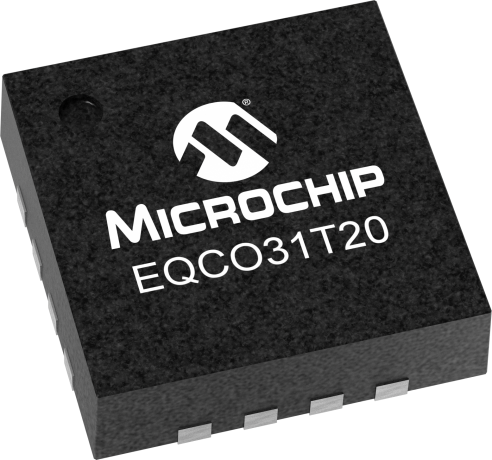

EQCO31T20

In Production

The EQCO31T20 is a auto adaptive video cable driver designed to transport simultaneous asymmetric bi-directional communication up to 3.125 Gbps downlink and up to 20 Mbps uplink over a single coaxial cable.  The protocols supported are  8b/10b NRZ coding and the CoaXPress® Standard over conventional coaxial cable.



    Features

        • 1.25 Gbps to 3.125Gbps Video Downlink
        • Up to 20Mbps Uplink for camera control
        • Supports distance up to 212m @ 1.25Gbps over RG11 Coax
        • Supports distance up to 169m @ 3.125Gbps over RG11 Coax
        • Enables nanosecond precise triggering for camera control
        • Also supports 8b/10b coding up to 3.125Gbps
        • Support power over coax cable up to 900mA DC
    Parameter Name
    Value
    Temp Range (°C)
    -40 to 85
    Power Consumption
    <70mW @1.2V
    Package Size (mm)
    4x4
    Package Type
    QFN
    Pin Count
    16
    Package Pitch
    0.65mm pin pitch
    Operating Voltage Range (V)
    1.15 to 1.25
    Storage Temp Range (°C)
    -65 to 150
    Documentation
    Data Sheets
    03/10/2016
    1712KB
      Brochures




    Brochures
    02/20/2014
    794KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    EQCO31T20.3
    16
    QFN
    -40C to +85C
    TUBE
    24.00
    22.80
    21.66
    20.58
    19.55

    EQCO31T20.3-TRAY
    16
    QFN
    -40C to +85C
    TRAY
    24.38
    23.16
    22.00
    20.90
    19.85


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • CoaXPress Transmitter (Camera) Evaluation Board ( EVB-DBSUB1584 )

      CoaXPress

      The CoaXPress (CXP) machine vision standard uses asymmetric data transmission over Coax cables - with speeds of up to 6.2Gbit/s from the camera and up to 20Mbit/s control data from the frame grabber to the camera. Microchip offers fully qualified board-sets (transmitter and receiver) as an evaluation and development tool to aid customers in rapid adoption.

    Similar Devices
    Product
    Price5K


    $3.26
    $19.55
    $25.66
    $5.29
    $5.29
    $5.29
    $5.29
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    EQCO31T20.3-TRAY
    0.043500
    0.210204
    16
    QFN
    4x4x0.9mm
    NiPdAu
    e4
    EQCO31T20.3
    0.043500
    0.076923
    16
    QFN
    4x4x0.9mm
    NiPdAu
    e4
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
