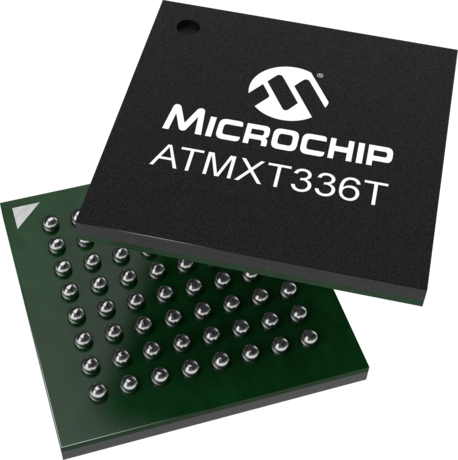

ATmXT336T

In Production

The mXT336T uses the latest capacitive touch technologies that Microchip has designed for the highest-performance smart phones. With a revolutionary adaptive-sensing architecture that features both mutual- and self-capacitance, it enables the highest performance with the industry's lowest power consumption.

With 336 nodes, the mXT336T touchscreen controller supports Hover, 1.0mm passive stylus, thick glove touch, moisture robustness and superior noise immunity.



    Features

      Supports up to 10 concurrent touches in real time with touch size reporting

      Communication via I2C serial interface

      Internal high voltage to increase signal to noise ratio (SNR)

      Adaptive Sensing (Self and Mutual cap)

      Supports thick glove (5mm) touch

      Support thick lenses (up to 3mm plastic)

      Superior moisture performance

    Parameter Name
    Value
    Interface Type
    I2C
    Max Screen Size (Inch)
    5.5
    Operating Voltage range (Vcc)
    3.3 to 3.3
    Touch Response
    >250 Hz
    Temperature Range (degC)
    -40 to 85
    Number of Touches
    10
    Max Nodes Supported
    336
