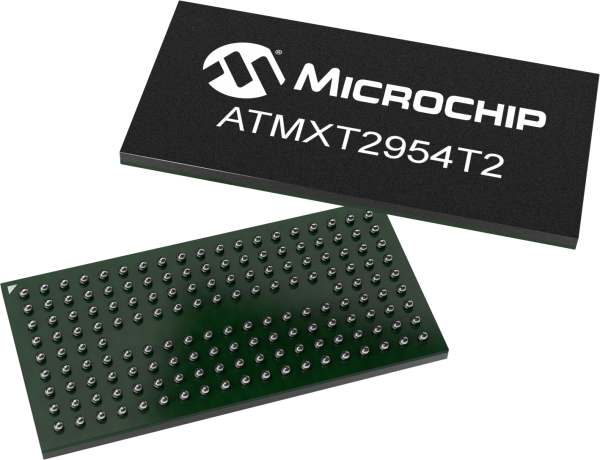

ATmXT2954T2

In Production

The mXT2954T2 is a single-chip capacitive touch controller for 15.6 inches Windows 8.x certified or Android enabled notebooks and Intel Ultrabooks. With the revolutionary Adaptive Sensing architecture featuring both mutual and self-capacitance, it enables the highest performance with the industry???s lowest power consumption. It provides intelligent support for integrated Active Stylus and finger hover detection to distances up to 20mm (2cm).


    Parameter Name
    Value
    Interface Type
    I2C / USB
    Max Screen Size (Inch)
    15.6
    Operating Voltage range (Vcc)
    3.3 to 3.3
    Touch Response
    >200 Hz
    Automotive Qualified
    Temperature Range (degC)
    -40 to 85
    Max Nodes Supported
    2911
    Documentation
      Brochures



    Brochures
    01/01/2013
    104KB
    Brochures
    06/01/2014
    1504KB
      White Papers




    WhitePapers
    01/01/2012
    440KB
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    ATMXT2954T2-C2UR064
    0.048000
    0.365200
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2UR066
    0.048000
    0.365200
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2U074
    0.048000
    0.210714
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2UR060
    0.048000
    0.365200
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2U075
    0.048000
    0.210714
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2U061
    0.048000
    0.210714
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2UR074
    0.048000
    0.365200
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2UR036
    0.048000
    0.365200
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2U066
    0.048000
    0.210714
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2U060
    0.048000
    0.210714
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2UR061
    0.048000
    0.365200
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2U064
    0.048000
    0.210714
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2U036
    0.048000
    0.210714
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    ATMXT2954T2-C2UR075
    0.048000
    0.365200
    162
    UFBGA
    10x5x0.6mm
    LF35
    e8
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
