Microchip Technology Inc

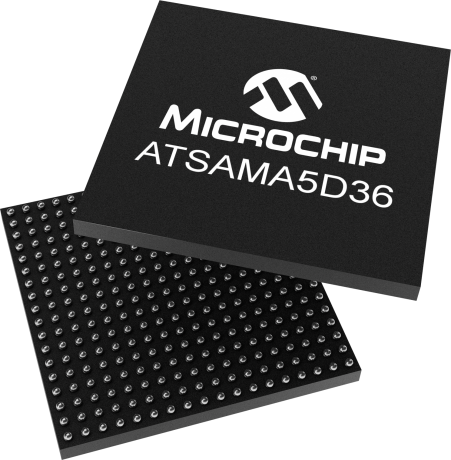

ATSAMA5D36

In Production

The SAMA5D3 series is a high-performance, ultra-low-power ARM Cortex-A5 processor-based MPU.  The Cortex-A5 runs up to 536MHz and features a 128KB L2 cache and a floating-point unit.  It supports multiple memories, including DDR2 and LPDDR2.  It integrates powerful peripherals for connectivity:  Gigabit EMAC and/or 10/100 EMAC, 3 HS USB ports, up to 2 CAN ports, up to 3 SDIO/SD/MMC, up to 7 UARTs; and for user interface applications:  TFT LCD controller, touch controller, and a CMOS sensor (camera) interface.  These devices offer application security functions to protect against hacking such as a hardware encryption engine supporting AES, 3DES, as well as secure Hash Algorithm (SHA) and True Random Number Generator (TRNG) and a secure boot loader.  These devices come with a free main-lined Linux distribution.



    Features

        • Low System Cost and High Value Integration:

        - Gigabit EMAC and 10/100 EMAC

        - 0.8mm ball pitch package reduces PCB design complexity

        - Simple power management scheme

        - 4-layer PCB

        • Ultra-Low Power Consumption:

        - Ultra-low-power architecture for extensive battery life

        - <200uA retention mode with fast wake-up

        - 5uA in backup mode

        • Application Security:

        - Hardware encryption engine

        - Secure boot

        • Extensive Ecosystem:

        - Free Linux® and Qt SDK

        - Complete set of C examples for non-OS users

        - Low-Cost Development board

        - Multiple third-party software and hardware partners

    Parameter Name
    Value
    Family
    SAMA5D3
    Core
    Cortex-A5
    FPU
    Yes
    Max Speed (MHz)
    536
    Core Operating Voltage Range (V)
    1.08 to 1.32
    Vddbu for battery backup
    Yes
    Internal Oscillator
    32kHz, 12MHz
    Boot Memory (KB)
    160
    SRAM (KB)
    128
    DRAM Memory Interface
    LPDDR/DDR2/LPDDR2
    L1 Cache Memory (Instructions) (KB)
    32
    L1 Cache Memory (Data) (KB)
    32
    Ext. DRAM Memory Interface
    LPDDR/DDR2/LPDDR2
    Ext. DRAM Memory Bus Size (Bits)
    32
    NAND Interface
    Yes
    NAND Interface ECC (Bits)
    24
    # of EBIs
    1
    SD/eMMC
    3
    DMA Channels
    39
    Max I/O Pins
    160
    Pin Count
    324
    UARTs
    6
    ISO 7816
    4
    SPITM
    6
    TWI (I2CTM Compatible)
    3
    SSC
    2
    CAN
    2
    CAN Type
    CAN
    CAN Transmit Buffers
    16
    CAN Receive Buffers
    16
    USB Device and Host Ports
    1 HS
    USB Host Only Ports
    2 HS
    10/100 Ethernet MAC
    1
    10/100/1000 Ethernet MAC
    1
    Ethernet PTP & AVB Support
    Ethernet PTP
    LCD/Graphic Interface
    Yes
    Graphic LCD (GLCD)
    24-bit
    Graphic Overlays (#)
    4
    Resistive Touch Controller
    Yes
    Camera Interface
    Yes
    CODEC Interface (I2S,AC97)
    Yes
    Secure Bootloader
    Yes
    Crypto Engine
    Yes
    A/D channels
    12
    Max A/D Resolution (bits)
    12
    Max A/D Sample Rate (KSPS)
    1000
    RTCC
    Yes
    Periodic Interval Timer (PIT)
    20-bit Programmable
    Watch Dog Timer (WDT)
    Yes
    Max 16 Bit Digital Timers
    4
    Max 32 Bit Digital Timers
    6
    Input Captures
    6
    Output Compare/Std. PWM
    6
    Motor Control PWM Channels
    8
    PWM Resolution (bits)
    32
    PWM Resolution (ns)
    2
    Debug Interface
    JTAG, SWD
    Temperature Range (C)
    -40 to 105
    Documentation
    Data Sheets
    12/10/2016
    7599KB
      Application Notes



    AppNote
    01/01/2013
    283KB
    AppNote
    02/01/2014
    69KB
    AppNote
    02/01/2015
    278KB
    AppNote
    01/01/2013
    96KB
    AppNote
    01/01/2013
    454KB
    AppNote
    10/01/2013
    65KB
    AppNote
    11/01/2013
    492KB
    AppNote
    07/01/2014
    238KB
    AppNote
    07/01/2014
    2668KB
    AppNote
    08/01/2014
    146KB
    AppNote
    12/01/2014
    88KB
    AppNote
    01/01/2015
    1541KB
    AppNote
    12/01/2013
    291KB
    AppNote
    02/01/2014
    695KB
    AppNote
    12/10/2016
    944KB
    AppNote
    06/01/2014
    537KB
    AppNote
    05/01/2015
    326KB
    AppNote
    06/01/2015
    6498KB
    AppNote
    12/10/2016
    828KB
    AppNote
    01/01/2015
    203KB
      Brochures



    Brochures
    12/15/2016
    1917KB
    Brochures
    12/10/2016
    499KB
    Brochures
    11/01/2014
    785KB
      Board Design Files



    Board Design Files
    05/25/2017
    76502KB
    Board Design Files
    06/12/2017
    29KB
    Board Design Files
    06/12/2017
    237017KB
    Board Design Files
    06/12/2017
    2KB
      Quick Start Guides



    Quick Start Guides
    05/01/2013
    112KB
    Quick Start Guides
    06/01/2013
    933KB
    Quick Start Guides
    05/01/2013
    100KB
    Quick Start Guides
    05/01/2013
    104KB
      Tutorials




    Tutorials
    07/01/2014
    1100KB
      User Guides



    User Guides
    10/01/2013
    3107KB
    User Guides
    03/01/2013
    8KB
    User Guides
    03/01/2013
    7KB
    User Guides
    02/01/2013
    7KB
    User Guides
    12/10/2016
    5844KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    ATSAMA5D36A-CN
    324
    LFBGA
    -40C to +105C
    TRAY
    11.38
    10.35
    9.38
    8.57
    8.22
    ATSAMA5D36A-CNR
    324
    LFBGA
    -40C to +105C
    T/R
    11.53
    10.48
    9.49
    8.68
    8.32
    Please select the non-tape and reel version of this part
    ATSAMA5D36A-CU
    324
    LFBGA
    -40C to +85C
    TRAY
    10.84
    9.86
    8.93
    8.16
    7.82
    ATSAMA5D36A-CUR
    324
    LFBGA
    -40C to +85C
    T/R
    10.98
    9.99
    9.05
    8.27
    7.93
    Please select the non-tape and reel version of this part

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • SAMA5D3-XPLD ( ATSAMA5D3-XPLD )

      SAMA5D3-XPLD

      The SAMA5D3 Xplained is a fast prototyping and evaluation platform for microprocessor-based design. The board comes with a rich set of ready to use connectivity and storage peripherals and expansion headers for easy customization. A Linux distribution and software package gets you evaluating fast. A USB device connector can be used to power the board as well as programming and debugging it.

    • KSZ9477 Managed Switch Evaluation board with SAMA5D36 MPU ( EVB-KSZ9477 )

      KSZ9477

      The evaluation board for the KSZ9477S 7-Port Gigabit Ethernet Switch (also KSZ9567 and KSZ8567). The SAMA5D3 processor manages the switch and includes the ATECC508A security encoder. The DSC1101 is the reference clock for GigE communication. The EVB can be used to implement IEEE 1588v2, AVB and DLR/HSR (available on KSZ9477 only) network redundancy.  Combine multiple boards to implement...

    • SAM-ICE ( AT91SAM-ICE )

      SAM-ICE

      SAM-ICE is a JTAG emulator designed for SAMA5, SAM3, SAM4, SAM7 and SAM9 ARM® core-based MCUs and MPUs, including Thumb mode. It supports download speeds up to 720K Bytes per second and maximum JTAG speeds up to 12 MHZ. It also supports Serial Wire Debug (SWD) and Serial Wire Viewer (SWV) from SAM-ICE hardware V6.

    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    ATSAMA5D36A-CUR
    0.508300
    2.624000
    324
    LFBGA
    15x15x1.4mm
    SAC105
    e8
    ATSAMA5D36A-CN
    0.508300
    1.515873
    324
    LFBGA
    15x15x1.4mm
    SAC105
    e8
    ATSAMA5D36A-CNR
    0.508300
    2.624000
    324
    LFBGA
    15x15x1.4mm
    SAC105
    e8
    ATSAMA5D36A-CU
    0.508300
    1.515873
    324
    LFBGA
    15x15x1.4mm
    SAC105
    e8
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
