Microchip Technology Inc

ATSAMA5D34

In Production

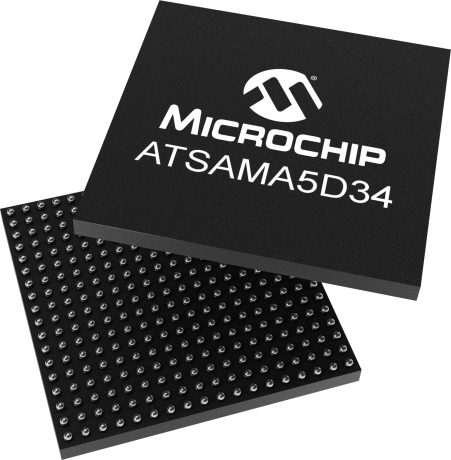

The SAMA5D34 is an ARM®??Cortex®?-A5 processor-based embedded microprocessor unit (eMPU) operating at 536MHz (850DMIPS). The device features a floating-point unit, support for the Linux operating system and a comprehensive peripheral set for connectivity and advanced user interfaces, including Gigabit Ethernet, HS USB, dual CAN and LCD controller.?? It also integrates state-of-the-art security features with a secure bootloader, Advanced Encryption Standard (AES), Triple Data Encryption Standard (TDES) Secure Hash Algorithm (SHA) and True Random Number Generator (TRNG).


    Parameter Name
    Value
    Family
    SAMA5D3
    Max Speed MHz
    536
    RAM (KB)
    128
    DRAM Memory Interface
    LPDDR/DDR2/LPDDR2
    SD/eMMC
    3
    Temperature Range (C)
    -40 to 85
    Operating Voltage Range (V)
    1.08 to 1.32
    DMA Channels
    39
    SPITM
    6
    I2CTM Compatible
    3
    CODEC Interface (I2S,AC97)
    Yes
    Peripheral Pin Select (PPS) Crossbar
    Yes
    USB
    High Speed
    USB Interface
    3,High Speed
    CAN
    2
    A/D channels
    12
    Max A/D Resolution
    12
    Max A/D Sample Rate (KSPS)
    1000
    Input Capture
    5
    Motor Control PWM Channels
    8
    16-bit Digital Timers
    4
    Parallel Port
    EBI
    Internal Oscillator
    32kHz, 12MHz
    RTCC
    Yes
    I/O Pins
    160
    Pin Count
    324
    External Memory Bus Interface
    Program/Data
    Crypto Engine
    Yes
    Documentation
    Data Sheets
    12/10/2016
    7599KB
      Application Notes



    AppNote
    01/01/2013
    283KB
    AppNote
    02/01/2014
    69KB
    AppNote
    02/01/2015
    278KB
    AppNote
    01/01/2013
    96KB
    AppNote
    01/01/2013
    454KB
    AppNote
    10/01/2013
    65KB
    AppNote
    11/01/2013
    492KB
    AppNote
    07/01/2014
    238KB
    AppNote
    07/01/2014
    2668KB
    AppNote
    08/01/2014
    146KB
    AppNote
    12/01/2014
    88KB
    AppNote
    01/01/2015
    1541KB
    AppNote
    12/01/2013
    291KB
    AppNote
    02/01/2014
    695KB
    AppNote
    12/10/2016
    944KB
    AppNote
    06/01/2014
    537KB
    AppNote
    05/01/2015
    326KB
    AppNote
    06/01/2015
    6498KB
    AppNote
    12/10/2016
    828KB
    AppNote
    01/01/2015
    203KB
      Brochures



    Brochures
    12/15/2016
    1917KB
    Brochures
    12/10/2016
    499KB
    Brochures
    11/01/2014
    785KB
      Board Design Files



    Board Design Files
    05/25/2017
    76502KB
    Board Design Files
    06/12/2017
    29KB
    Board Design Files
    06/12/2017
    161186KB
    Board Design Files
    06/12/2017
    4KB
      Quick Start Guides



    Quick Start Guides
    05/01/2013
    112KB
    Quick Start Guides
    06/01/2013
    933KB
    Quick Start Guides
    05/01/2013
    100KB
    Quick Start Guides
    05/01/2013
    104KB
      Tutorials




    Tutorials
    07/01/2014
    1100KB
      User Guides



    User Guides
    10/01/2013
    3107KB
    User Guides
    03/01/2013
    8KB
    User Guides
    03/01/2013
    7KB
    User Guides
    02/01/2013
    7KB
    User Guides
    12/10/2016
    5844KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    ATSAMA5D34A-CU
    324
    LFBGA
    -40C to +85C
    TRAY
    10.55
    9.59
    8.69
    7.94
    7.62
    ATSAMA5D34A-CUR
    324
    LFBGA
    -40C to +85C
    T/R
    10.70
    9.72
    8.81
    8.05
    7.72
    Please select the non-tape and reel version of this part
