ATSAM4C16

In Production

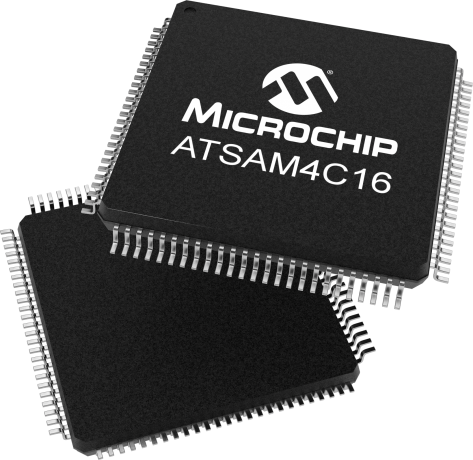

The Microchip's SAM416C microcontroller is a system-on-chip solution for smart energy applications built around two high performance 32-bit ARM® Cortex®-M4 RISC processors. These devices operate at a maximum speed of 120 MHz and feature 1024 Kbytes of embedded Flash, 152 Kbytes of SRAM and on-chip cache for each core. The dual ARM® Cortex®-M4 architecture allows for integration of application layer, communications layers and security functions in a single device, with the ability to extend program and data memory via a 16-bit external bus interface.



    Features

        • Application / Master Core
          • ARM Cortex-M4 running at up to 120MHz
          • Memory Protection Unit (MPU)
          • DSP Instruction
          • Thumb®-2 instruction set
          • Instruction and Data Cache Controller with 2 Kbytes Cache Memory
          • 1024kbytes of flash, 128Kbytes of SRAM, 8Kbytes of ROM
        • Coprocessor (provides ability to separate application, communication or metrology functions)
          • ARM Cortex-M4F
          • IEEE 754 Compliant, Single precision Floating-Point Unit (FPU)
          • DSP Instruction
          • Thumb-2 instruction set
          • Instruction and Data Cache Controller with 2 Kbytes Cache Memory
          • 16K+8K bytes of SRAM
        • Symmetrical/Asynchronous Dual Core Architecture
          • Interrupt-based Inter-processor Communication
          • Asynchronous Clocking
          • One Interrupt Controller (NVIC) for each core
          • Each Peripheral IRQs routed to each NVIC Inputs
        • Cryptography
          • High performance AES 128 to 256 with various modes (GCM, CBC, ECB, CFB, CBC-MAC, CTR)
          • TRNG (up to 38 Mbit/s stream, with tested Diehard and FIPS)
          • Public Key Crypto accelerator and associated ROM library for RSA, ECC, DSA, ECDSA
          • Integrity Check Module (ICM) based on Secure Hash Algorithm (SHA1, SHA224, SHA256), DMA assisted
        • Safety
          • Up to four physical Anti-tamper Detection I/Os with Time Stamping and Immediate Clear of General Backup Registers
          • Security Bit for Device Protection from JTAG Accesses
        • Shared System Controller
          • Power Supply
            • Embedded Core and LCD Voltage Regulator for single supply operation
            • Power-on-Reset (POR), Brownout Detector (BOD) and Dual Watchdog for safe operation
            • Ultra-low-power Backup mode (< 0.5 µA Typical @ 25ºC)
          • Clock
            • Optional 3 to 20 MHz quartz or ceramic resonator oscillators with clock failure detection
            • Ultra-low-power 32.768 kHz crystal oscillator for RTC with frequency monitoring
            • High-precision 4/8/12 MHz factory-trimmed internal RC oscillator with on-the-fly trimming capability
            • One high-frequency PLL up to 240 MHz, one 8 MHz PLL with internal 32 kHz input
            • Low-power slow clock internal RC oscillator as permanent clock
          • Ultra-low-power RTC with Gregorian and Persian Calendar, Waveform Generation and Clock Calibration
          • Up to 23 Peripheral DMA (PDC) Channels
        • Shared Peripherals
          • One Segmented LCD Controller
            • Display capacity of 50 segments and 6 common terminals
            • Software-selectable LCD output voltage (Contrast)
            • Can be used in Backup mode
          • Up to five USARTs with ISO7816, IrDA®, RS-485, SPI and Manchester Mode
          • Two 2-wire UARTs
          • Two 400 kHz Master/Slave and Multi-Master Two-wire Interfaces (I2C compatible)
          • Up to seven Serial Peripheral Interfaces (SPI)
          • Two 3-channel 16-bit Timer/Counters with Capture, Waveform, Compare and PWM modes
          • Quadrature Decoder Logic and 2-bit Gray Up/Down Counter for Stepper Motor
          • 4-channel 16-bit Pulse Width Modulator
          • 32-bit Real-time Timer
        • Analog Conversion Block
          • 8-channel, 500 kS/s, Low-power, 10-bit SAR ADC with Digital averager providing 12-bit resolution at 30 kS/s
          • Software Controlled On-chip Reference ranging from 1.6V to 3.4V
          • Temperature Sensor and Backup Battery Voltage Measurement Channel
        • I/O
          • Up to 74 I/O lines with External Interrupt Capability (edge or level sensitivity), Schmitt Trigger, Internal Pull-up/pull-down, Debouncing, Glitch Filtering and On-die Series Resistor Termination
        • Package
          • 100-lead LQFP, 14 x 14 mm, pitch 0.5 mm
    Parameter Name
    Value
    Timers
    6
    Temperature Range (°C)
    -40 to 85
    Operating Voltage (Vcc)
    1.62 - 3.6
    PWM Channels
    4
    SPI
    7
    I2C
    2
    Crypto Engine
    AES/CPKCC/ICM(SHA)/TRNG
    Segment LCD
    50x6
    Anti-Tampering Inputs
    4
    Flash (kBytes)
    1024
    ADC Resolution (bits)
    10
    Max I/O Pins
    74
    UART
    7
    External Bus Interface
    16-bit data
    SRAM (kBytes)
    152
    ADC Channels
    8
    Documentation
    Data Sheets
    02/14/2017
    5506KB
      Application Notes



    AppNote
    04/01/2014
    556KB
    AppNote
    12/10/2016
    175KB
    AppNote
    07/28/2017
    936KB
      Brochures



    Brochures
    02/24/2017
    2719KB
    Brochures
    07/25/2017
    424KB
    Brochures
    08/30/2017
    3795KB
      User Guides




    User Guides
    01/01/2014
    2061KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    ATSAM4C16CB-AU
    100
    LQFP
    -40C to +85C
    TRAY
    11.35
    10.39
    9.43
    8.63
    8.23
    ATSAM4C16CB-AUR
    100
    LQFP
    -40C to +85C
    T/R
    11.42
    10.45
    9.49
    8.68
    8.28


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • M90E2X-DB ( ATM90E2X-DB )

      M90E2X-DB

    • M90E36A-DB ( ATM90E36A-DB )

      M90E36A-DB

      ATM90E36A Poly-Phase Energy Metering Demo is used for the demo and testing of ATM90E36A (poly-phase energy metering AFE chip of ), which can sample poly-phase voltage and current, meter active/reactive/apparent/fundamental/harmonic energy and output these energy pulses accordingly, as well as measure parameters such as voltage, current and power.

      The AFE Control Board - SAM4C...

    • M90E32AS-DB ( ATM90E32AS-DB )

      M90E32AS-DB

      ATM90E32AS Poly-Phase Energy Metering Demo is used for the demo and testing of ATM90E32AS (poly-phase energy metering AFE chip of ), which can sample poly-phase voltage and current, meter active/reactive/apparent/fundamental/harmonic energy and output these energy pulses accordingly, as well as measure parameters such as voltage, current and power.

      The AFE Control Board - SAM4C...

    • SAM4C Evaluation Kit ( ATSAM4C-EK )

      SAM4C

      This kit lets designers quickly evaluate and develop code for smart energy applications built around two high performance 32-bit ARM®Cortex®-M4 RISC processors. The SAM4C Evalution Kis is ideal for fast getting started using the Dual Cortex M4 architecture. It allows evaluating the performances and low-power mode, anti-tampering and Cryptographic functions. The board is equipped with...
