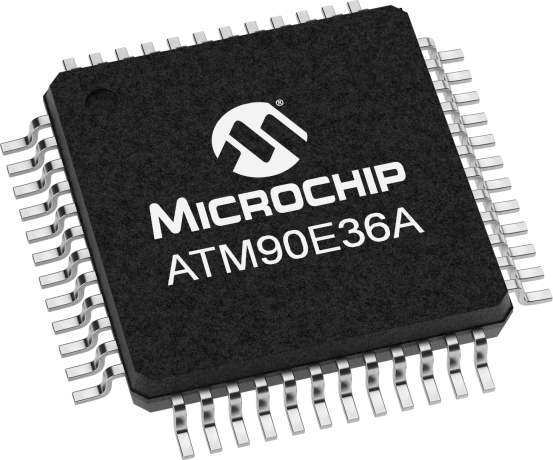

ATM90E36A

In Production

The ATM90E36A is a high-performance energy metering device for three-phase four-wire (3P4W, Y0) or three-phase three-wire (3P3W, Y or Δ) systems. It is also applicable in Data Acquisition Terminal. With the measurement and Fourier analysis functions, the ATM90E36A can also be used in power monitoring instruments which need to measure voltage, current, THD, DFT, mean power, etc.



    Features

        • Poly-phase solutions up to class 0.2 accuracy.
        • 6000:1 dynamic range improves performance and reduces OEM's overall cost of manufacturing and bill of materials.
        • Compliant with IEC62052-11, IEC62053-22/23, ANSI C12.1, C12.20.
        • Lowest temperature drift in the industry for this type of device.
    Parameter Name
    Value
    Measurement Error
    0.1%
    Dynamic Range
    6000:1
    Gain Selection
    Up to 4x
    Voltage Reference Drift Typical (ppm/°C)
    6
    ADC Resolution (bits)
    16
    # of Channels
    7
    Power Type
    Poly-Phase
    Device Type
    Energy Meter IC
    Interface
    SPI/Pulse Output
    Operating Voltage (V)
    3.0 - 3.6
    Temperature Range (°C)
    -40 to 85
    Documentation
    Data Sheets
    02/01/2015
    992KB
      Application Notes




    AppNote
    05/01/2014
    797KB
      Brochures




    Brochures
    08/30/2017
    3795KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    ATM90E36A-AU-R
    48
    TQFP
    -40C to +85C
    T/R
    3.14
    2.87
    2.61
    2.39
    2.28

    ATM90E36A-AU-Y
    48
    TQFP
    -40C to +85C
    TRAY
    3.14
    2.87
    2.61
    2.39
    2.28

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • SAM4CMP-DB ( ATSAM4CMP-DB )

      SAM4CMP-DB

      The SAM4CMP-DB Demonstration Kit uses SAM4CMP8C/ SAM4CMP16C to demonstrate the high accuracy poly-phase energy metering functions. The SAM4CMP8C/SAM4C16C is an integrated poly-phase Energy Metering SoC with 100MHz, dual-core Cortex-M4 ARM processor cores. The board is ETSI format compliant and is designed to interface with CT, Rogowski and Shunt current sensors. The board can interface with...

    • SAM4C Evaluation Kit ( ATSAM4C-EK )

      SAM4C

      This kit lets designers quickly evaluate and develop code for smart energy applications built around two high performance 32-bit ARM® Cortex®-M4 RISC processors. The SAM4C Evalution Kit is ideal for fast getting started using the Dual Cortex M4 architecture. It allows evaluating the performances and low-power mode, anti-tampering and Cryptographic functions. The board is equipped with...

    • M90E32AS-DB ( ATM90E32AS-DB )

      M90E32AS-DB

      ATM90E32AS Poly-Phase Energy Metering Demo is used for the demo and testing of ATM90E32AS (poly-phase energy metering AFE chip), which can sample poly-phase voltage and current, meter active/reactive/apparent/fundamental/harmonic energy and output these energy pulses accordingly, as well as measure parameters such as voltage, current and power.

      The AFE Control Board - SAM4C communicates...

    • SAM4CMS32-DB ( ATSAM4CMS32-DB )

      SAM4CMS32-DB

      The ATSAM4CMS32-DB demonstration board uses ATSAM4CMS32 to demonstrate the high accuracy single-phase energy metering functions. The ATSAM4CMS32 is an integrated single-phase Energy Metering SoC with 100MHz, dual-core Cortex-M4 ARM processor cores. The board is ETSI format compliant and is designed to interface with CT, Rogowski and Shunt current sensors. The board can interface with ZigBee...

    • M90E36A-DB ( ATM90E36A-DB )

      M90E36A-DB

      ATM90E36A Poly-Phase Energy Metering Demo is used for the demo and testing of ATM90E36A (poly-phase energy metering AFE chip), which can sample poly-phase voltage and current, meter active/reactive/apparent/fundamental/harmonic energy and output these energy pulses accordingly, as well as measure parameters such as voltage, current and power.

      The AFE Control Board - SAM4C communicates...

    • SAM4C32 Evaluation Kit ( ATSAM4C32-EK )

      SAM4C32

      The ATSAM4C32-EK lets designers quickly evaluate and develop code for smart energy applications built around two high performance 32-bit ARM® Cortex® -M4 RISC processors. The SAM4C32 Evaluation Kit is ideal for fast getting started using the Dual Cortex M4 architecture. It allows evaluating the performances and low-power mode, anti-tampering and Cryptographic functions. The board is...

    • SAM4CMP32-DB ( ATSAM4CMP32-DB )

      SAM4CMP32-DB

      The ATSAM4CMP32-DB demonstration board uses ATSAM4CMP32C to demonstrate the high accuracy poly-phase energy metering functions. The ATSAM4CMP32C is an integrated poly-phase Energy Metering SoC with 120MHz, dual-core Cortex-M4 ARM processor cores. The board is ETSI format compliant and is designed to interface with CT, Rogowski and Shunt current sensors. The board can interface with ZigBee and...

    • M90E2X-DB ( ATM90E2X-DB )

      M90E2X-DB

    • SAM4CMS-DB ( ATSAM4CMS-DB )

      SAM4CMS-DB

      The SAM4CMS-DB Demonstration Kit uses SAM4CMS8C/SAM4CMS16C to demonstrate the high accuracy single-phase energy metering functions. The SAM4CMS8C/SAM4CMS16C is an integrated single-phase Energy Metering SoC with 100MHz, dual-core Cortex-M4 ARM processor cores. The board is ETSI format compliant and is designed to interface with CT, Rogowski and Shunt current sensors. The board can interface with...

    Similar Devices
    Product
    No. of Channels
    ADC Resolution (bits)
    ADC SINAD (dB)
    Price5K
    3
    16
    78
    $0.67
    6
    16
    78
    $1.44
    7
    16
    78
    $2.28
    3
    24
    84
    $1.97
    4
    24
    84
    $2.49
    7
    24
    84

    2
    24
    91
    $1.44
    6
    24
    91
    $3.09
    2
    16
    n/a
    $1.34
    2
    16
    n/a
    $1.36
    2
    16
    n/a
    $1.47
    2
    16
    82
    $1.48
    2
    24
    93.5
    $1.46
    2
    24
    94.5
    $1.40
    4
    24
    93.5
    $2.34
    6
    24
    94.5
    $3.04
    8
    24
    94.5
    $3.76
    1
    24
    93.5
    $1.12
    3
    24
    93.5
    $1.84
    2
    24
    94.5
    $1.82
    2
    24
    94.5
    $1.82
    3
    24
    94.5
    $1.82
    2
    24
    94.5
    $1.82
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    ATM90E36A-AU-R
    0.142800
    0.300000
    48
    TQFP
    7x7x1mm
    Matte Tin
    e3
    ATM90E36A-AU-Y
    0.142800
    2.940000
    48
    TQFP
    7x7x1mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
