Microchip Technology Inc

ATF750C

In Production

This high-performance CMOS complex programmable logic device (CPLD) uses Atmel's proven electrically erasable technology. It is twice as powerful as most other 24-pin PLDs. Increased product terms, sum terms, flip-flops, and output logic configurations translate into more usable gates. High-speed logic and uniform predictable delays guarantee fast in-system performance.


    Parameter Name
    Value
    Power Options
    STANDARD
    Operating Voltage range (V)
    4.5 to 5.5
    Inputs and I/O Pins
    22
    Registers
    20
    Macrocells
    10
    tPD Min
    7
    Max Clock Freq
    142
    Temp# Range (deg C)
    -55 to 125
    Documentation
    Data Sheets
    11/01/2008
    491KB
      Application Notes



    AppNote
    09/01/2000
    153KB
    AppNote
    07/01/2013
    417KB
    AppNote
    09/01/2000
    172KB
    AppNote
    09/01/2008
    136KB
    AppNote
    08/01/2015
    184KB
      Quick Start Guides




    Quick Start Guides
    12/01/2013
    91KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample

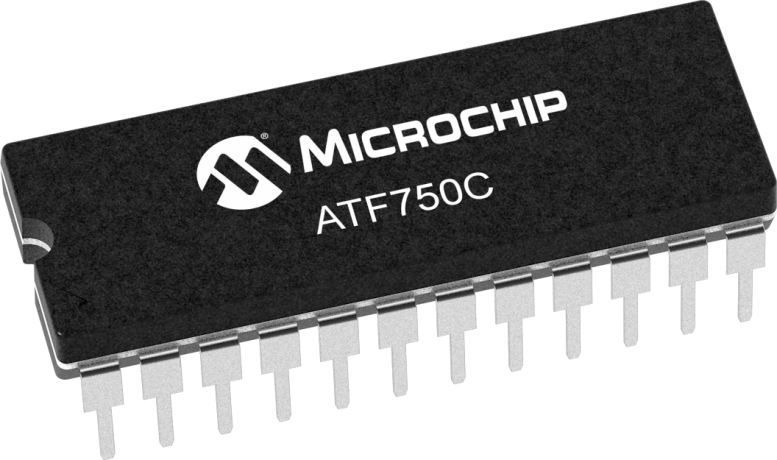

    ATF750C-10GM/883
    24
    CERDIP
    -55C to +125C
    TUBE
    57.14
    51.95
    47.06
    43.48
    41.24

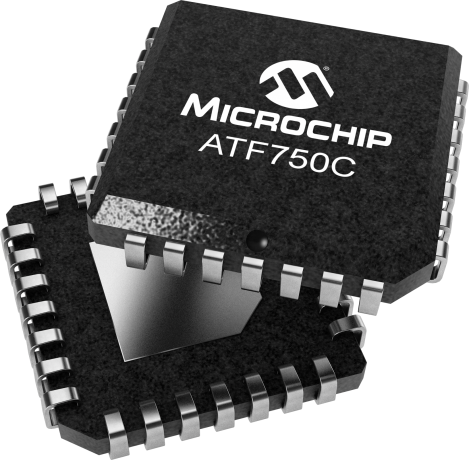

    ATF750C-10JU
    28
    PLCC
    -40C to +85C
    TUBE
    4.29
    3.90
    3.53
    3.26
    3.09
    ATF750C-10NM/883
    28
    CLCC
    -55C to +125C
    TUBE
    62.14
    56.49
    51.18
    47.28
    44.85

    ATF750C-10PU
    24
    PDIP
    -40C to +85C
    TUBE
    4.29
    3.90
    3.53
    3.26
    3.09
    ATF750C-10SU
    24
    SOIC
    -40C to +85C
    TUBE
    4.29
    3.90
    3.53
    3.26
    3.09
    ATF750C-10SU-T
    24
    SOIC
    -40C to +85C
    T/R
    4.29
    3.90
    3.53
    3.26
    3.09
    ATF750C-15GM/883
    24
    CERDIP
    -55C to +125C
    TUBE
    42.86
    38.96
    35.29
    32.61
    30.93

    ATF750C-15NM/883
    28
    CLCC
    -55C to +125C
    TUBE
    51.43
    46.75
    42.35
    39.13
    37.11

    ATF750C-7JX
    28
    PLCC
    0C to +70C
    TUBE
    5.36
    4.87
    4.41
    4.08
    3.87
    ATF750C-7PX
    24
    PDIP
    0C to +70C
    TUBE
    5.36
    4.87
    4.41
    4.08
    3.87
    ATF750C-7SX
    24
    SOIC
    0C to +70C
    TUBE
    5.36
    4.87
    4.41
    4.08
    3.87

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    ATF750C-7JX
    1.142500
    0.435897
    28
    PLCC
    11.5x11.5x4.4mm
    Matte Tin
    e3
    ATF750CL-15JU
    1.142500
    0.435897
    28
    PLCC
    11.5x11.5x4.4mm
    Matte Tin
    e3
    ATF750C-10JU
    1.142500
    0.435897
    28
    PLCC
    11.5x11.5x4.4mm
    Matte Tin
    e3
    ATF750CL-15SU
    0.662000
    1.225807
    24
    SOIC
    .300in
    Matte Tin
    e3
    ATF750C-7SX
    0.662000
    1.225807
    24
    SOIC
    .300in
    Matte Tin
    e3
    ATF750C-10SU
    0.662000
    1.225807
    24
    SOIC
    .300in
    Matte Tin
    e3
    ATF750C-10SU-T
    0.662000
    1.000000
    24
    SOIC
    .300in
    Matte Tin
    e3
    ATF750C-10GM/883
    3.840000
    0.000000
    24
    CERDIP
    .300In
    SnPb
    e0
    ATF750C-15GM/883
    3.840000
    0.000000
    24
    CERDIP
    .300In
    SnPb
    e0
    ATF750C-10NM/883
    0.096000
    0.000000
    28
    CLCC
    11.4x11.5x2.54mm
    SnPb
    e0
    ATF750C-15NM/883
    0.096000
    0.000000
    28
    CLCC
    11.4x11.5x2.54mm
    SnPb
    e0
    ATF750C-7PX
    1.769700
    1.800000
    24
    PDIP
    .300In
    Matte Tin
    e3
    ATF750C-10PU
    1.769700
    1.800000
    24
    PDIP
    .300In
    Matte Tin
    e3
    ATF750CL-15PU
    1.769700
    1.800000
    24
    PDIP
    .300In
    Matte Tin
    e3
    ATF750CL-15XU
    0.091800
    0.096774
    24
    TSSOP
    4.4mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
