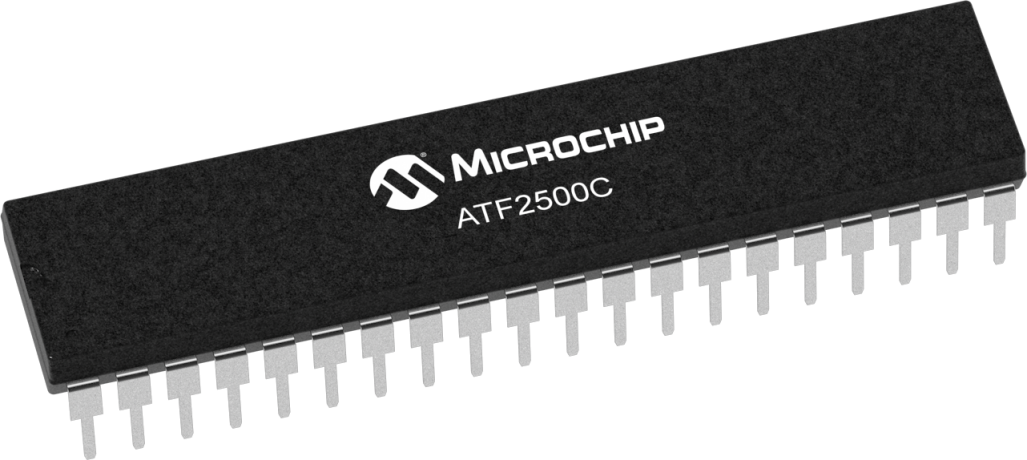

ATF2500C

In Production

Highest-density PLD available in a 44-pin surface mount package. A fully-connected logic array and flexible macrocell structure make it easy to obtain high gate utilization. This high-performance CMOS programmable logic device (PLD) uses Atmel's proven electrically-erasable technology. It is available in fully green or LHF (lead and halide-free) packages.


    Parameter Name
    Value
    Power Options
    STANDARD
    Operating Voltage range (V)
    4.5 to 5.5
    Inputs and I/O Pins
    38
    Registers
    48
    Macrocells
    24
    tPD Min
    15
    Max Clock Freq
    83
    Temp# Range (deg C)
    -55 to 125
    Documentation
    Data Sheets
    01/01/2008
    603KB
      Application Notes



    AppNote
    07/01/2013
    417KB
    AppNote
    09/01/2000
    172KB
    AppNote
    04/01/2003
    70KB
    AppNote
    08/01/2015
    184KB
      Quick Start Guides




    Quick Start Guides
    12/01/2013
    91KB
