AT91SAM9M10
DATA SHEET
(06/15/2017)

DOWNLOAD

AT91SAM9M10

In Production

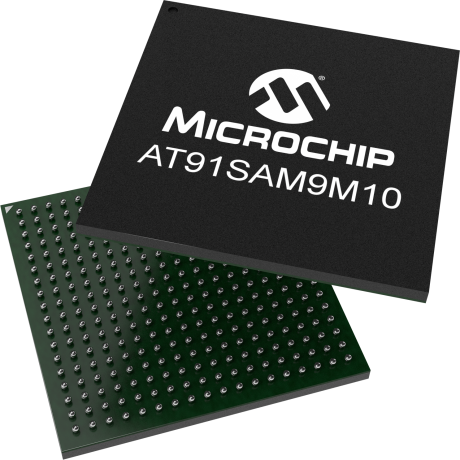

The Microchip's ARM®-based SAM9M10 is a 400MHz ARM926-based embedded microprocessor with video playback, DDR2 and LPDDR support, wide range of connectivity and user interface peripherals, as well as a dual external bus interface. The hardware video decoder supports multiple formats (H264, H263, MPEG4, MPEG2, VC1) in resolutions up to WVGA or D1 at 30fps. It includes graphics acceleration, such as scaling, rotation, color conversion and picture-in-picture The multi-layer bus architecture with 36 DMA channel and 64KB of SRAM can be configured as TCM, and the dual bus interface sustains the high bandwidth required by the processor and its high-speed peripherals. it includes multiple communication interfaces, such as high speed USB host and device with transceivers, 10/100 Mbps Ethernet controller and high-speed SDIO/MMC interface. It also comes with an LCD controller supporting up to 1280x860 resolution, resistive touchscreen controller and camera interface. The SAM9M10 is available in a BGA324 package with 0.8mm ball pitch.


    Parameter Name
    Value
    Family
    SAM9M
    Max Speed MHz
    400
    RAM (KB)
    64
    DRAM Memory Interface
    SDRAM/LPSDRAM/LPDDR/DDR2
    SD/eMMC
    4
    Temperature Range (C)
    -40 to 85
    Operating Voltage Range (V)
    0.9 to 1.1
    DMA Channels
    37
    SPITM
    6
    I2CTM Compatible
    2
    CODEC Interface (I2S,AC97)
    Yes
    Peripheral Pin Select (PPS) Crossbar
    Yes
    USB
    High Speed
    USB Interface
    3,High Speed
    A/D channels
    8
    Max A/D Resolution
    10
    Max A/D Sample Rate (KSPS)
    440
    Input Capture
    6
    Motor Control PWM Channels
    4
    16-bit Digital Timers
    6
    Parallel Port
    EBI
    Internal Oscillator
    32KHz
    RTCC
    Yes
    I/O Pins
    160
    Pin Count
    324
    External Memory Bus Interface
    Program/Data
    Documentation
    Data Sheets
    06/15/2017
    1662KB
    Data Sheets
    12/10/2016
    5345KB
      Application Notes



    AppNote
    05/01/2015
    326KB
    AppNote
    12/10/2016
    828KB
    AppNote
    01/01/2015
    203KB
    AppNote
    11/01/2003
    114KB
    AppNote
    06/15/2017
    411KB
    AppNote
    08/01/2006
    149KB
    AppNote
    06/01/2009
    766KB
    AppNote
    09/01/2006
    1751KB
    AppNote
    07/01/2007
    372KB
    AppNote
    06/01/2008
    674KB
    AppNote
    10/01/2009
    323KB
      Brochures



    Brochures
    12/15/2016
    1917KB
    Brochures
    12/10/2016
    845KB
    Brochures
    11/01/2014
    785KB
      Board Design Files



    Board Design Files
    07/07/2017
    64338KB
    Board Design Files
    07/07/2017
    1KB
      Quick Start Guides



    Quick Start Guides
    05/01/2013
    112KB
    Quick Start Guides
    06/01/2013
    933KB
    Quick Start Guides
    05/01/2013
    104KB
      User Guides




    User Guides
    07/07/2017
    2229KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    AT91SAM9M10C-CU
    324
    TFBGA
    -40C to +85C
    TRAY
    14.46
    13.14
    11.91
    10.88
    10.43
    AT91SAM9M10C-CU-999
    324
    TFBGA
    -40C to +85C
    T/R
    14.60
    13.27
    12.02
    10.99
    10.54
    Please select the non-tape and reel version of this part

    ** Device not available to purchase online. Please contact a sales office for pricing information.
