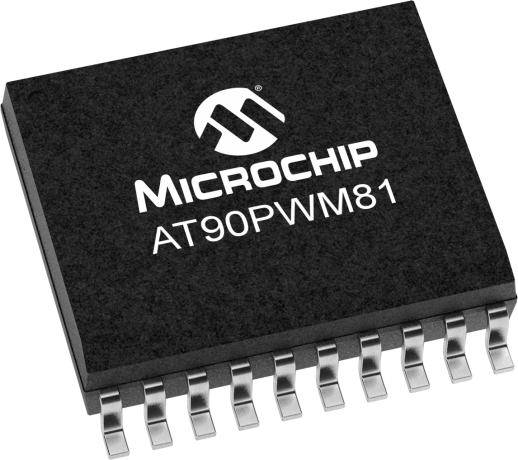

AT90PWM81

In Production

Specially designed for lamp ballast and motor control applications, this high-performance Microchip 8-bit AVR® RISC-based microcontroller combines 8KB ISP flash memory, 10-channel advanced PWM, 11-channel 10-bit A/D converter, one 10-bit D/A converter, one 12-bit high speed power stage controller (with extended PSC2 features) with 16-bit Resolution Enhancement. The device operates between 2.7-5.5 volts.



    Features

        • Advanced RISC architecture
          • 131 powerful instructions - most single clock cycle execution
          • 32 × 8 general purpose working registers
          • Fully static operation
          • Up to 1 MIPS throughput per MHz
          • On-chip 2-cycle multiplier
        • Data and non-volatile program memory
          • 8Kbytes of in-system programmable program memory flash
            • Endurance: 10,000 write/erase cycles
            • Lock bits protection
            • Optional 2/4Kbytes boot code section with independent lock bits
            • In-system programming by on-chip boot program
            • True read-while-write operation
          • 512 Bytes of in-system programmable EEPROM
            • Four bytes page size
          • 256 Bytes Internal SRAM
        • On-chip debug support (debugWIRE)
        • Peripheral features
          • One 12-bit high speed PSC (Power Stage Controllers with extended PSC2 features)
            • Non overlapping inverted PWM output pins with flexible dead-time
            • Variable PWM duty cycle and frequency
            • Synchronous update of all PWM registers
            • Enhanced resolution mode (16 bits)
            • Additional register for ADC synchronization
            • Input capture
            • Four output pins and output matrix
          • One 12-bit high speed PSC (Power Stage Controller)
            • Auto-stop function for event driven PFC implementation
            • Non overlapping inverted PWM output pins with flexible dead-time
            • Variable PWM duty cycle and frequency
            • Synchronous update of all PWM registers
            • Enhanced resolution mode (16 bits)
            • Input capture
          • One 16-bit simple general purpose timer/counter
          • 10-bit ADC
            • Up to 11 single ended channels and one fully differential ADC channel pair
            • Programmable gain (5×, 10×, 20×, 40× on differential channel)
            • Internal reference voltage
          • One 10-bit DAC
          • Three analog comparators with
            • Resistor-array to adjust comparison voltage
            • DAC to adjust comparison voltage
          • One SPI
          • Three external interrupts
          • Programmable watchdog timer with separate on-chip oscillator
        • Special microcontroller features
          • Low power idle, noise reduction, and power down modes
          • Power-on reset and programmable brown-out detection
          • Flag array in bit-programmable I/O space (three bytes)
          • In-system programmable via SPI port
          • Internal low power calibrated RC oscillator (8MHz or 1MHz, low jitter)
          • On chip PLL for fast PWM (32MHz, 48MHz, 64MHz) and CPU (12MHz, 16MHz); PLL source RC & XTAL
          • Dynamic clock switch
          • Temperature sensor
        • Operating voltage: 2.7V - 5.5V
        • Operating temperature:
          • -40°C to +105°C or -40°C to +125°C
        • Operating speed
          • 5V: 16MHz core, 64MHz PLL
          • 3.3V: 12MHz core, 48MHz PLL
    Parameter Name
    Value
    Program Memory Type
    Flash
    Program Memory (KB)
    8
    CPU Speed (MIPS)
    16
    Data EEPROM (bytes)
    512
    Digital Communication Peripherals
    1-SPI,
    Capture/Compare/PWM Peripherals
    1 Input Capture, 1 CCP, 8PWM
    Comparators
    3
    Temperature Range (C)
    -40 to 125
    Operating Voltage Range (V)
    2.7 to 5.5
    Pin Count
    20
