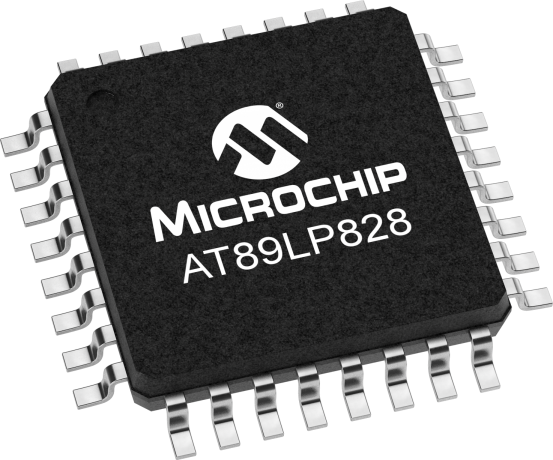

AT89LP828

In Production

Single cycle microcontroller with 8KB ISP flash, 512 bytes flash data memory, 768 bytes of RAM, PWM, UART, SPI, up to 30 I/Os, an analog comparator, an internal RC oscillator, and on-chip debug.


    Parameter Name
    Value
    Program Memory Type
    Flash
    Program Memory (KB)
    8
    CPU Speed (MIPS)
    25
    Data EEPROM (bytes)
    1024
    Digital Communication Peripherals
    1-UART, 1-SPI,
    Temperature Range (C)
    0 to 0
    Operating Voltage Range (V)
    2.4 to 5.5
    Pin Count
