AT89C51CC01
DATA SHEET
(03/01/2008)

DOWNLOAD

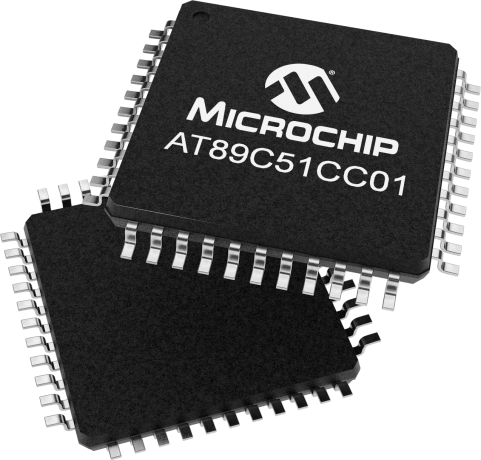

AT89C51CC01

In Production

First member of the Microchip CANary??? family of 8-bit microcontrollers for CAN network applications. It provides 32KB of flash memory including ISP, 2KB of boot flash memory, 2KB of EEPROM, and 1.2KB of RAM. In X2 mode a maximum external clock rate of 20MHz reaches a 300ns cycle time.

Special attention is paid to reducing its electro-magnetic emissions.


    Parameter Name
    Value
    Program Memory Type
    Flash
    Program Memory (KB)
    32
    CPU Speed (MIPS)
    6.66666666666667
    RAM Bytes
    1
    Data EEPROM (bytes)
    2048
    Digital Communication Peripherals
    1-UART,
    CAN
    1 None
    Temperature Range (C)
    0 to 0
    Operating Voltage Range (V)
    3 to 5.5
    Pin Count
    44
    Documentation
    Data Sheets
    03/01/2008
    1554KB
    Data Sheets
    05/01/2006
    177KB
    Data Sheets
    03/01/2008
    338KB
    Data Sheets
    03/01/2008
    306KB
      Application Notes



    AppNote
    06/01/2011
    128KB
    AppNote
    06/01/2011
    112KB
    AppNote
    06/01/2011
    205KB
    AppNote
    06/01/2011
    113KB
    AppNote
    11/01/2003
    194KB
    AppNote
    01/01/2000
    176KB
    AppNote
    05/01/2002
    371KB
    AppNote
    11/01/2002
    491KB
    AppNote
    12/01/2002
    180KB
    AppNote
    12/01/2002
    184KB
    AppNote
    12/01/2002
    449KB
    AppNote
    06/01/2005
    214KB
    AppNote
    12/01/2002
    103KB
    AppNote
    01/01/2001
    506KB
    AppNote
    12/01/2002
    103KB
    AppNote
    08/01/2003
    307KB
    AppNote
    08/01/2003
    318KB
    AppNote
    10/01/2003
    855KB
    AppNote
    06/01/2005
    183KB
    AppNote
    06/01/2004
    664KB
    AppNote
    06/01/2004
    190KB
    AppNote
    07/01/2004
    196KB
    AppNote
    06/01/2004
    215KB
    AppNote
    10/01/2004
    162KB
    AppNote
    07/01/2004
    246KB
    AppNote
    04/01/2006
    540KB
    AppNote
    03/01/2007
    75KB
    AppNote
    11/01/2007
    239KB
    AppNote
    12/10/2016
    139KB
    AppNote
    07/28/2017
    936KB
    AppNote
    06/23/2017
    302KB
      Brochures



    Brochures
    12/10/2016
    3582KB
    Brochures
    07/01/2005
    1156KB
      Product Document



    Product Document
    06/01/2007
    18KB
    Product Document
    09/01/2007
    422KB
    Product Document
    11/01/2003
    145KB
    Product Document
    07/01/2004
    43KB
    Product Document
    07/01/2012
    86KB
    Product Document
    07/01/2012
    40KB
    Product Document
    10/01/2004
    32KB
    Product Document
    01/01/2005
    27KB
      User Guides



    User Guides
    07/01/2006
    1128KB
    User Guides
    01/01/2007
    1767KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    AT89C51CC01CA-RLTUM
    44
    LQFP
    -40C to +85C
    TRAY
    6.31
    5.78
    5.24
    4.82
    4.58
    AT89C51CC01CA-SLSUM
    44
    PLCC
    -40C to +85C
    TUBE
    6.31
    5.78
    5.24
    4.82
    4.58
    AT89C51CC01UA-RLRUM
    44
    LQFP
    -40C to +85C
    T/R
    6.31
    5.78
    5.24
    4.82
    4.58
    AT89C51CC01UA-RLTUM
    44
    LQFP
    -40C to +85C
    TRAY
    6.31
    5.78
    5.24
    4.82
    4.58
    AT89C51CC01UA-SLSUM
    44
    PLCC
    -40C to +85C
    TUBE
    6.31
    5.78
    5.24
    4.82
    4.58

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    AT89C51CC01CA-SLSUM
    2.375500
    3.703704
    44
    PLCC
    16.6x16.6x4.4mm
    Matte Tin
    e3
    AT89C51CC01UA-SLSUM
    2.375500
    3.703704
    44
    PLCC
    16.6x16.6x4.4mm
    Matte Tin
    e3
    AT89C51CC01CA-RLTUM
    0.341100
    0.337500
    44
    LQFP
    10x10x1.4mm
    Matte Tin
    e3
    AT89C51CC01UA-RLTUM
    0.341100
    0.337500
    44
    LQFP
    10x10x1.4mm
    Matte Tin
    e3
    AT89C51CC01UA-RLRUM
    0.341100
    0.340667
    44
    LQFP
    10x10x1.4mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
