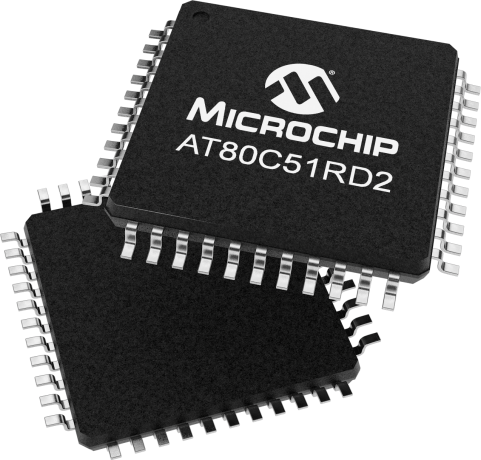

AT80C51RD2
DATA SHEET
(01/01/2009)

DOWNLOAD

AT80C51RD2

In Production

High-performance version of the 80C51 8-bit microcontrollers that retains all features of the 80C52 adn adds programmable counter array, 1024 bytes of XRAM, hardware watchdog timer, keyboard interface, versatile serial channel that facilitates multiprocessor communication (EUART), and a speed improvement mechanism (X2 mode).

The device has two software-selectable modes of reduced activity and an 8-bit clock prescaler to further reduce power consumption. In idle mode, the CPU is frozen while the peripherals and the interrupt system operate. In the power-down mode, the RAM is saved and all other functions are inoperative.


    Parameter Name
    Value
    Program Memory Type
    ROMless
    CPU Speed (MIPS)
    10
    RAM Bytes
    1
    Digital Communication Peripherals
    1-UART, 1-SPI,
    Temperature Range (C)
    0 to 0
    Operating Voltage Range (V)
    2.7 to 5.5
    Pin Count
    44
    Documentation
    Data Sheets
    01/01/2009
    1336KB
    Data Sheets
    03/01/2008
    67KB
      Application Notes



    AppNote
    08/01/2003
    318KB
    AppNote
    10/01/2003
    855KB
    AppNote
    04/01/2006
    273KB
    AppNote
    06/23/2017
    302KB
      Brochures




    Brochures
    12/10/2016
    3582KB
      Product Document



    Product Document
    09/01/2007
    422KB
    Product Document
    11/01/2003
    145KB
    Product Document
    07/01/2012
    86KB
    Product Document
    07/01/2012
    40KB
    Product Document
    10/01/2004
    32KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    AT80C51RD2-3CSUM
    40
    PDIP
    -40C to +85C
    TUBE
    1.47
    1.35
    1.22
    1.13
    1.07
    AT80C51RD2-RLRUM
    44
    LQFP
    -40C to +85C
    T/R
    1.49
    1.36
    1.24
    1.14
    1.08

    AT80C51RD2-RLTUM
    44
    LQFP
    -40C to +85C
    TRAY
    1.42
    1.30
    1.18
    1.08
    1.03
    AT80C51RD2-SLRUM
    44
    PLCC
    -40C to +85C
    T/R
    1.49
    1.36
    1.24
    1.14
    1.08

    AT80C51RD2-SLSUM
    44
    PLCC
    -40C to +85C
    TUBE
    1.42
    1.30
    1.18
    1.08
    1.03
