Microchip Technology Inc

AT42QT1012

In Production

The AT42QT101x Single Key capacitive touch controller family provides an easy way to add a touch key to any application. It implements advanced filtering algorithm to offer robust operation in noisy environment. Sensitivity and low power modes can be configured as well.

The AT42QT1012 has touch-on/touch-off (toggle) functionality and a Auto Off timer to save on power consumption.

The AT42QT1010 has "maximum on" touch duration of ~ 60s. The device output will then go low and a subsequent touch event can be detected.

The AT42QT1011 output will remain high as long as a touch is detected. No "Max On" time out.





    Features

        • Number of Keys: One – configurable as either a single key or a proximity sensor
        • Key outline sizes: 6 mm × 6 mm or larger (panel thickness dependent); widely different sizes and shapes possible
        • Electrode design: Solid or ring electrode shapes
        • PCB Layers required: One
        • Electrode materials: Etched copper, silver, carbon, Indium Tin Oxide (ITO)
        • Panel thickness:  Up to 12 mm glass, 6 mm plastic (electrode size and Cs dependent)
        • Key sensitivity: Settable via capacitor (Cs)
        • Power consumption: 17 µA at 1.8 V typical
        • Applications: Control panels, consumer appliances, IoT, proximity sensor applications, toys, lighting controls, mechanical switch or button replacement



      Parameter Name
      Value
      Product Type
      Proximity/Keys/Slider
      Input Channels
      1
      Max Number of Keys
      1
      Proximity detection
      Yes
      Interface
      Digital Output
      Voltage Range
      1.8V - 5.5V
      Documentation
      Data Sheets
      08/22/2017
      626KB
        Application Notes



      AppNote
      11/01/2011
      1033KB
      AppNote
      02/01/2013
      173KB
      AppNote
      12/01/2012
      286KB
      AppNote
      07/01/2014
      2509KB
      AppNote
      12/10/2016
      3618KB
      AppNote
      12/10/2016
      1161KB
      AppNote
      12/10/2016
      1000KB
      AppNote
      08/01/2010
      416KB
      AppNote
      10/01/2008
      64KB
      AppNote
      10/01/2008
      272KB
        Brochures



      Brochures
      12/10/2016
      4660KB
      Brochures
      02/01/2010
      1788KB
      Pricing & Samples
      All pricing shown in USD only.
      Part Number
      Leads
      Package Type
      Temp Range
      Packing
      1+
      26+
      100+
      1000+
      5000+
      Buy
      Sample
      AT42QT1012-MAHR
      8
      UDFN
      -40C to +85C
      T/R
      0.58
      0.53
      0.48
      0.44
      0.42

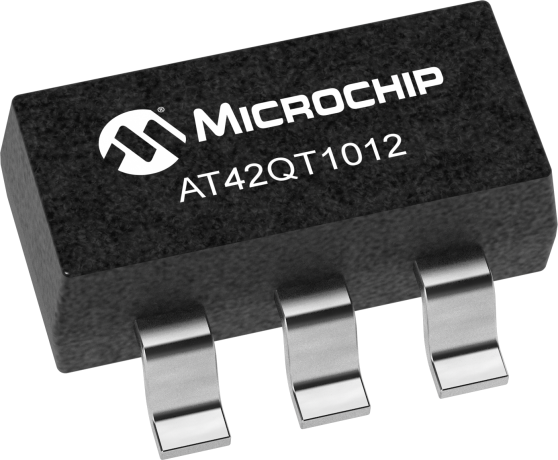

      AT42QT1012-TSHR
      6
      SOT-23
      -40C to +85C
      T/R
      0.58
      0.53
      0.48
      0.44
      0.42

      ** Device not available to purchase online. Please contact a sales office for pricing information.
      Open a microchipDIRECT account today!

      Similar Devices
      Product
      Product Type
      Price5K
      Notes
      Proximity/Keys/Slider
      $0.42

      Proximity/Keys/Slider
      $0.42

      Proximity/Keys/Slider
      $0.42

      RoHS Information
      Part
      Number
      Device
      Weight
      Shipping
      Weight
      Lead
      Count
      Package
      Type
      Package
      Width
      Solder
      Composition
      JEDEC
      Indicator
      RoHS

      China
      EFUP
      AT42QT1012-TSHR
      0.016600
      0.016667
      6
      SOT-23
      1.6x2.9x1.3mm
      NiPdAu
      e4
      AT42QT1012-MAHR
      0.006500
      0.436000
      8
      UDFN
      2x2x0.6mm
      NiPdAu
      e4
      To see a complete listing of RoHS data for this device, please Click here
      Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
