Microchip Technology Inc

AT42QT2640

In Production

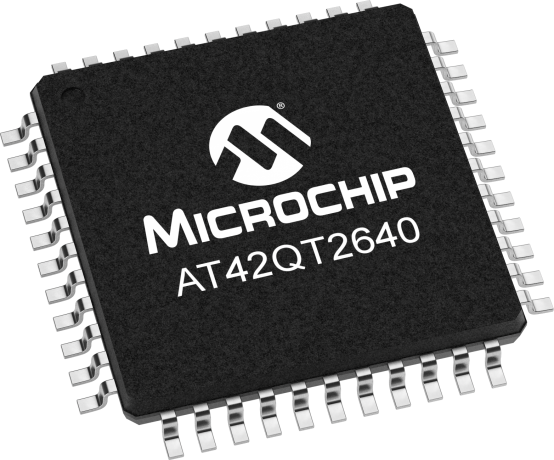

The Microchip's AT42QT2640 is a capacitive touch controller with configurable 64-QTouch buttons. The Microchip QMatrix?? sensing algorithm (mutual capacitance) enables the user to achieve more buttons than there are pins because of this matrix layout. The device includes all signal processing functions necessary to provide stable sensing under a wide variety of changing conditions and frequencies. UL approval and VDE compliance for use in both class B and class C safety-critical products.


    Parameter Name
    Value
    Product Type
    Proximity/Keys/Slider
    Max Number of Keys
    64
    Interface
    SPI
    Voltage Range
    4.8V - 5.3V
    Documentation
    Data Sheets
    11/01/2013
