AT28C256

In Production

The Microchip AT28C256 is a high-performance 256Kbit Parallel EEPROM available in both Industrial and Military temp ranges, offering access times to 150ns with power dissipation of 440mW. Deselected, CMOS standby current is less than 200μA.  Accessed like static RAM for the read or write cycle without external components, it contains a 64-byte page register to allow writing of up to 64bytes simultaneously. Features an internal Error Correction Circuit for extended endurance and improved data retention, in Military version. Optional Software Data Protection mechanism guards against inadvertent writes; and an extra 64 bytes of EEPROM enables device identification or tracking.

The AT28C256 is also available DUAL MARKED where applicable with the appropriate Standard Military Drawing Number - 5962-88525xxxx.  See the datasheet for exact MIL product availability.



    Features

        • 32 Kbits x 8 (256 Kbit)
        • 5V ± 10% Supply
        • Parallel Interface
          • 150ns access time
        • Self-Timed Erase and Write Cycles (10 ms max)
          • Page Write and Byte Write
          • Data Polling for end of write detection
        • Low Power Consumption
          • Read / Write current 40 mA (Max)
          • Standby current TTL 2 mA (Max), CMOS 200 μA (Max)
        • Write-Protection
          • Hardware Protection
          • Software Data Protect
        • High-endurance Option 100,000 erase/write cycles
        • Data retention > 10 years
        • Temperature Ranges
          • Standard Temperature Range: -40°C to 85°C
          • Military Temperature Range: -55°C to 125°C
        • Available in Green (Pb/Halide-free) Packaging
          • 32-lead, Plastic J-leaded Chip Carrier (PLCC)

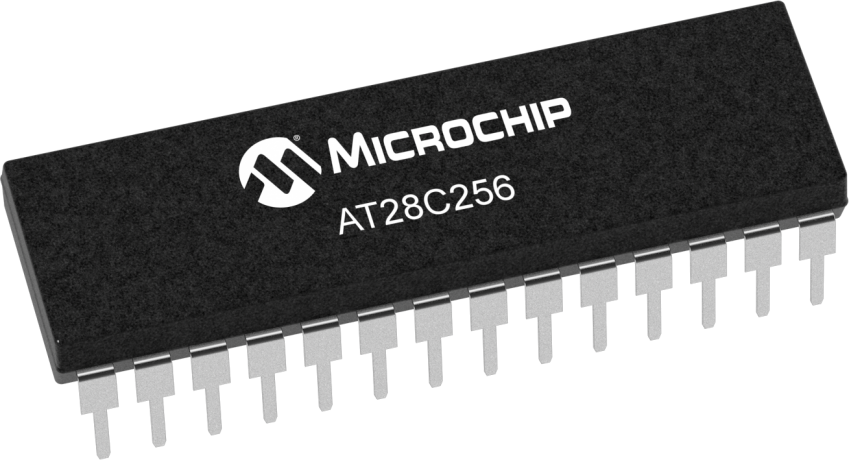

          • 28-lead, 0.600" Wide, Plastic Dual Inline Package (PDIP)
          • 28-lead, 0.300" Wide, Plastic Gull Wing Small Outline (SOIC)
          • 28-lead, Plastic Thin Small Outline Package (TSOP)
        • Available in SMD Dual marked (5962-88525xxxx) CERAMIC Hermetic Packaging

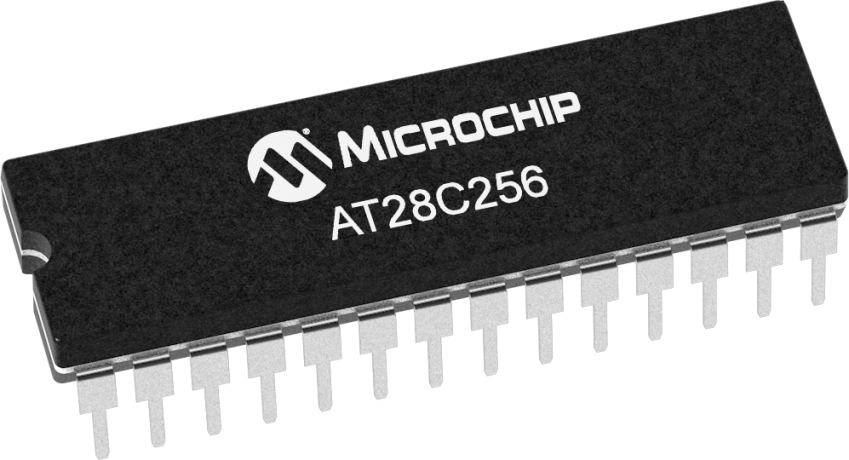

          • 28-Lead, 0.600" Wide, Non-Windowed, Ceramic Dual Inline (Cerdip)
          • 28-Lead, Non-Windowed, Ceramic Bottom-Brazed Flat Package (Flatpack)
          • 32-Pad, Non-windowed, Ceramic, Leadless Chip Carrier (LCC)
    Parameter Name
    Value
    Density
    256Kb
    Op. Volt Range (V)
    4.5 to 5.5
    Read Access Time
    150/200/250/300/350ns
    Documentation
    Data Sheets
    12/01/2009
    659KB
      Application Notes



    AppNote
    11/01/2004
    197KB
    AppNote
    04/01/2013
    79KB
      Brochures



    Brochures
    12/01/2012
    478KB
    Brochures
    12/10/2016
    4660KB
      Quick Start Guides




    Quick Start Guides
    07/01/2014
    114KB
